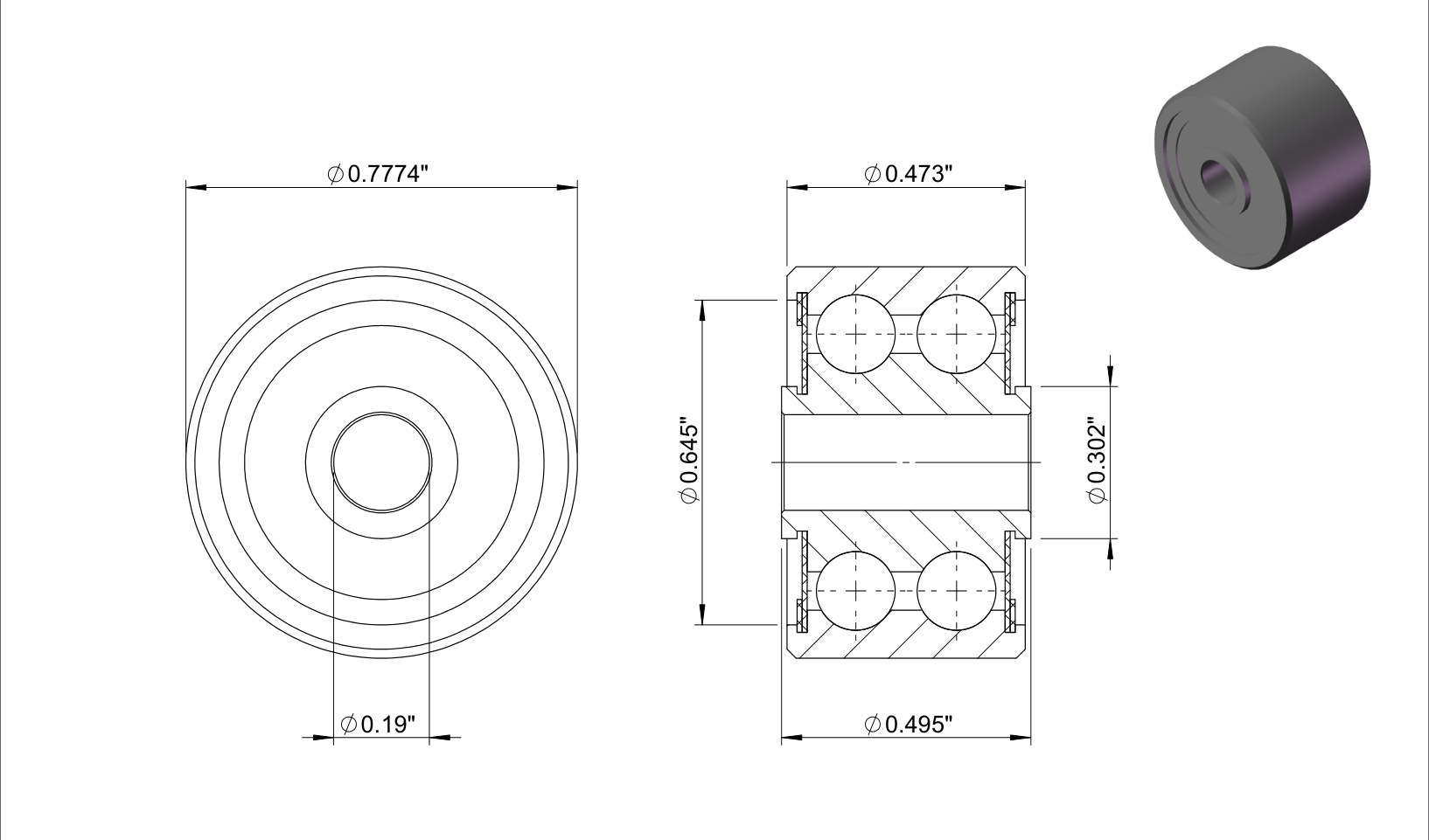

| Part Number | MDPP3 |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.7774″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ring Width Outer Height | 0.473″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.495″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 20 |
| Ball Complement Dia | 5/32″ |
| Ring Shoulder Outer | 0.645″ |
| Ring Shoulder Inner | 0.302″ |
| Ring Chamfer Outer | 0.018″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.004″ to 0.0010″ |
| Static Radial Load | 2950 lbs |
| Static Thrust Load | 1700 lbs |
| Dynamic Radial Ring Inner Load | 2950 lbs |
| Dynamic Radial Ring Outer Load | 2830 lbs |
| Max Starting Torque | 1 oz-in |
| Weight | 0.04 lbs |
