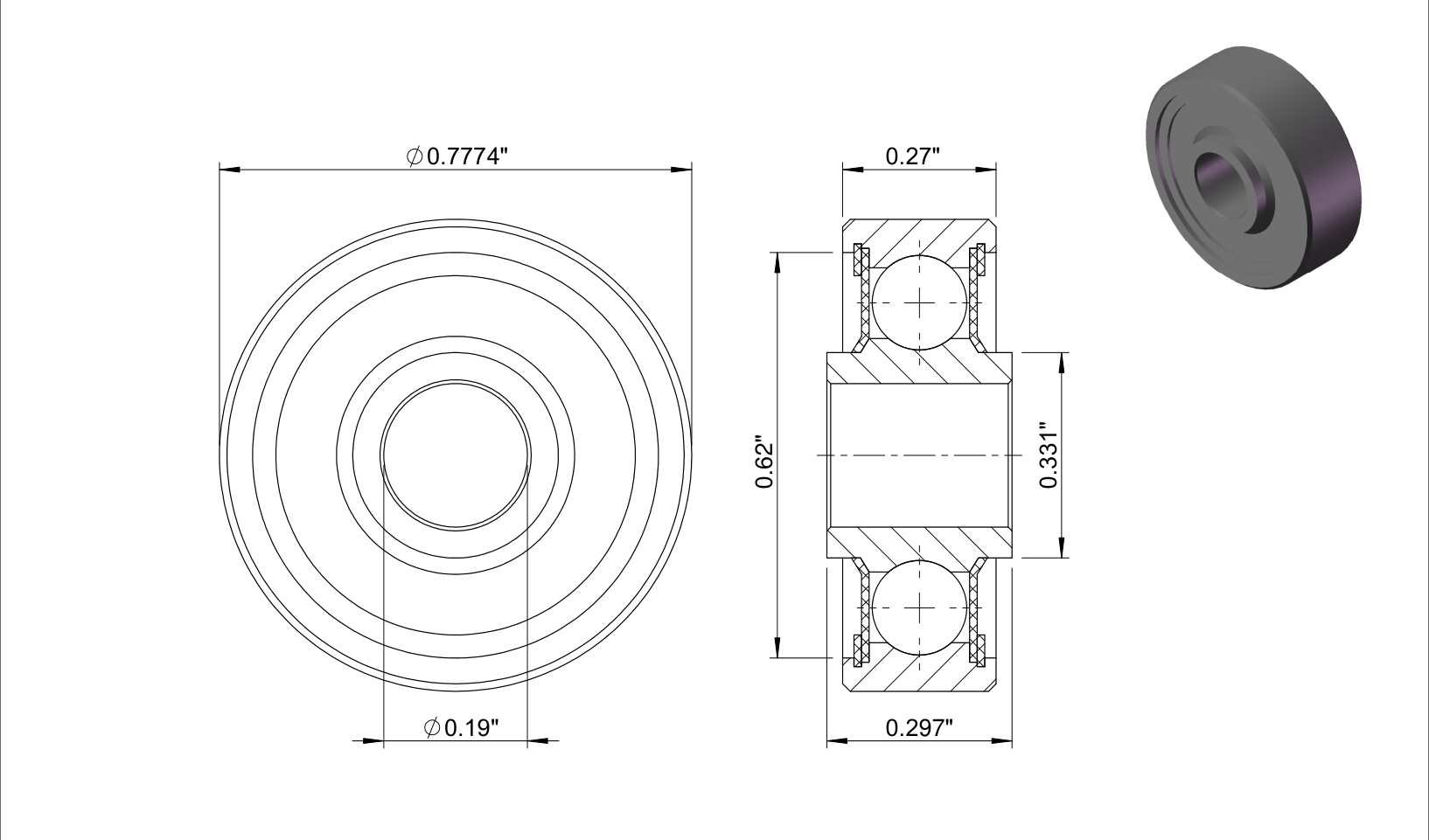

| Part Number | MKP3 |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 0.7774″ |
| Outer Dia Tolerance | -0.0004″ to 0″ |
| Ring Width Outer Height | 0.27″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.297″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 12 |
| Ball Complement Dia | 1/8″ |
| Ring Shoulder Outer | 0.62″ |
| Ring Shoulder Inner | 0.331″ |
| Ring Chamfer Outer | 0.022″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.002″ to 0.005″ |
| Static Radial Load | 1880 lbs |
| Static Thrust Load | 900 lbs |
| Dynamic Radial Ring Inner Load | 1700 lbs |
| Dynamic Radial Ring Outer Load | 1450 lbs |
| Max Starting Torque | 1 oz-in |
| Weight | 3 lbs |
