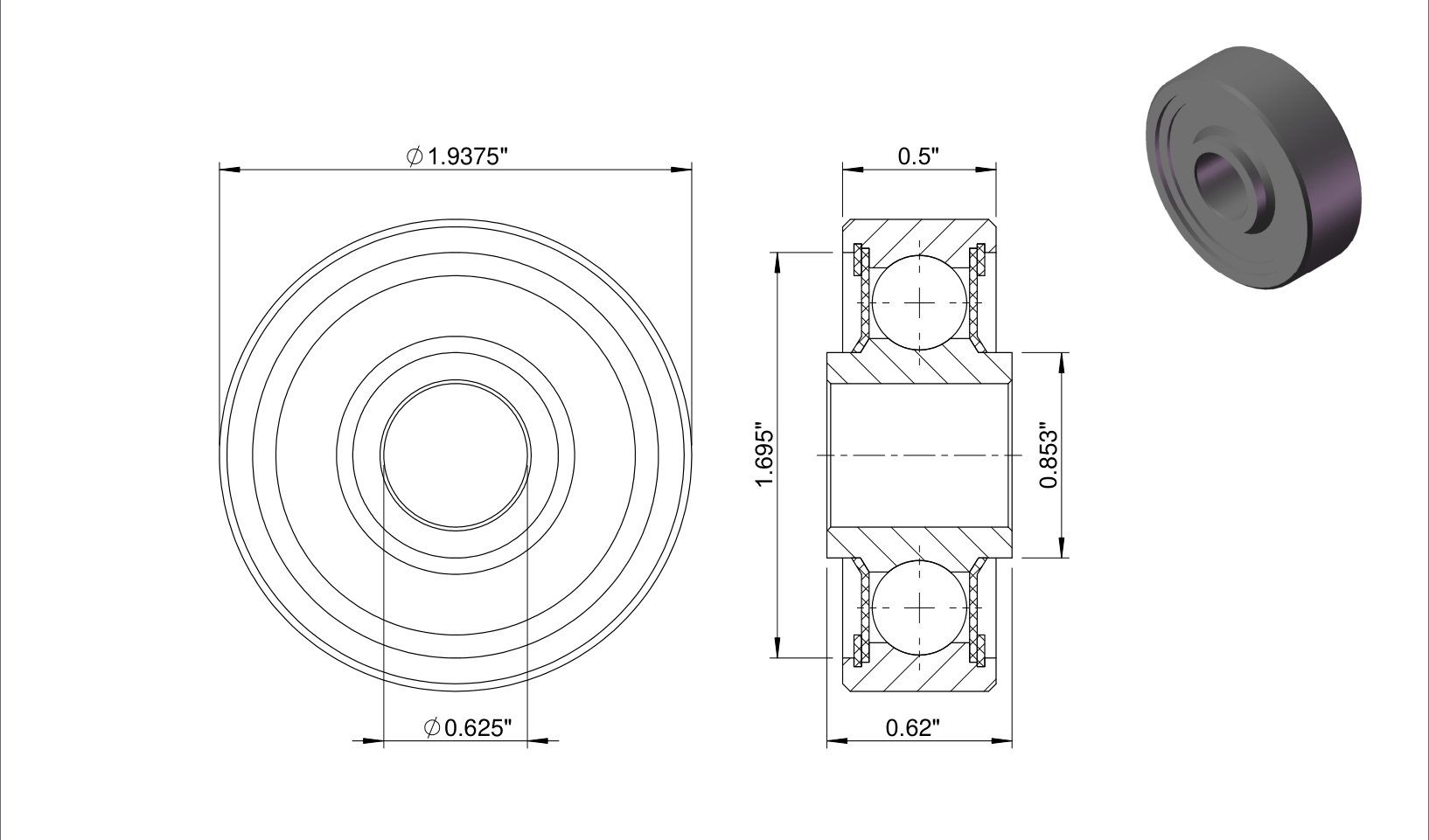

MKP10
| Part Number | MKP10 |
| System of Measurement | Inch |
| Bore Dia | 0.625″ |
| Bore Dia Tolerance | -0.0003″ to 0″ |
| Outer Dia | 1.9375″ |
| Outer Dia Tolerance | -0.0004″ to 0″ |
| Ring Width Outer Height | 0.5″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.62″ |
| Ring Width Inner Width Tolerance | -0.0025″ to 0″ |
| Ball Complement No | 10 |
| Ball Complement Dia | 3/8″ |
| Ring Shoulder Outer | 1.695″ |
| Ring Shoulder Inner | 0.853″ |
| Ring Chamfer Outer | 0.044″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.015″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.002″ to 0.005″ |
| Static Radial Load | 14100 lbs |
| Static Thrust Load | 6200 lbs |
| Dynamic Radial Ring Inner Load | 11000 lbs |
| Dynamic Radial Ring Outer Load | 9060 lbs |
| Max Starting Torque | 4 oz-in |
| Weight | 0.28 lbs |
$105.35
