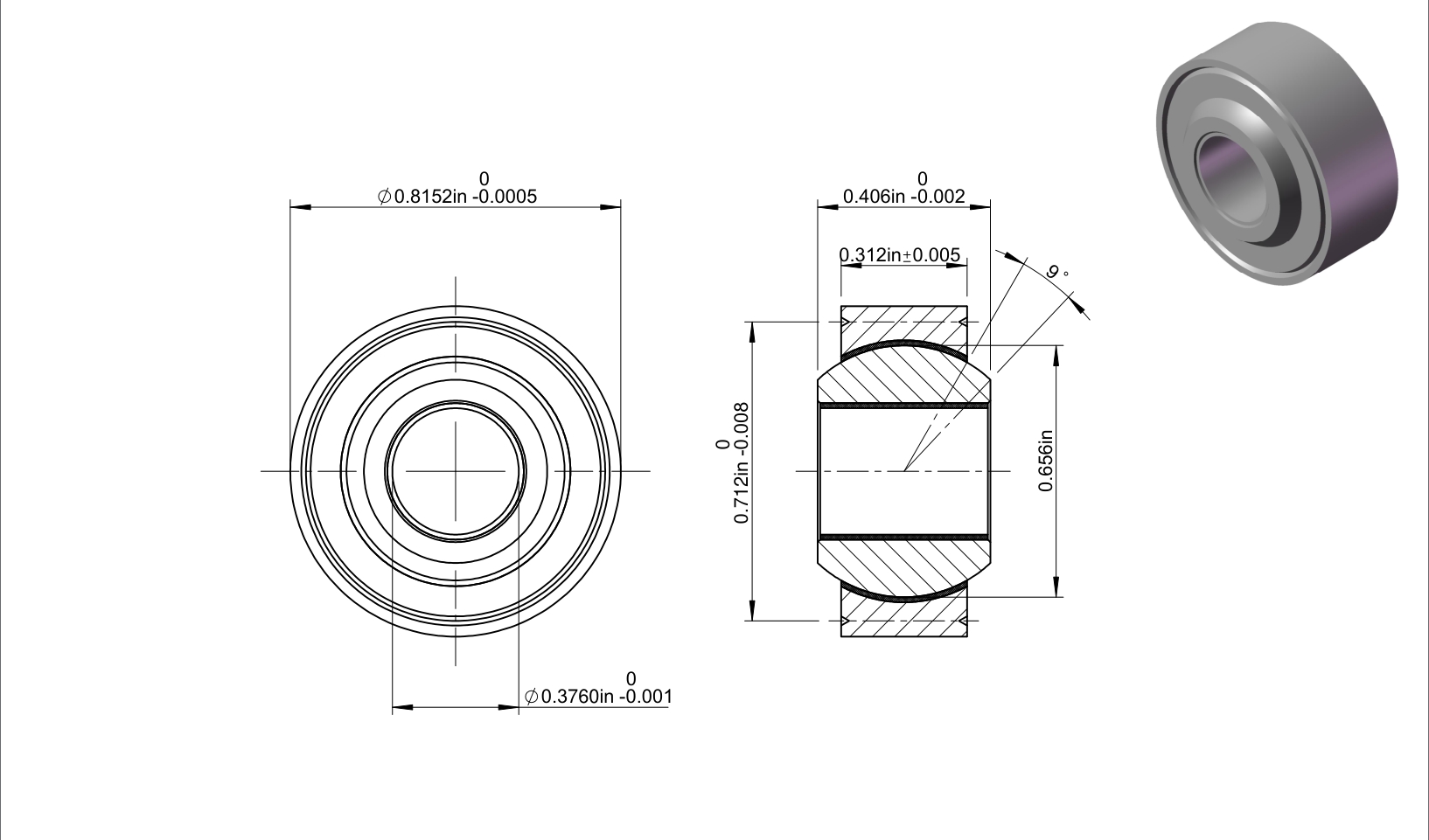

| Part Number | ADBL6V(L) |
| Standard Reference | M81820/1-6 |
| System of Measurement | Inch |
| Bore Dia | 0.376″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.406″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.312″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Ball Dia | 0.656″ |
| Pitch Dia | 0.712″ |
| Mis Alignment | 9° |
| Groove Depth | 0.035″ |
| Dynamic Radial Load | 4900 lbs |
| Static Radial Load | 10200 lbs |
| Weight | 0.04 lbs |
