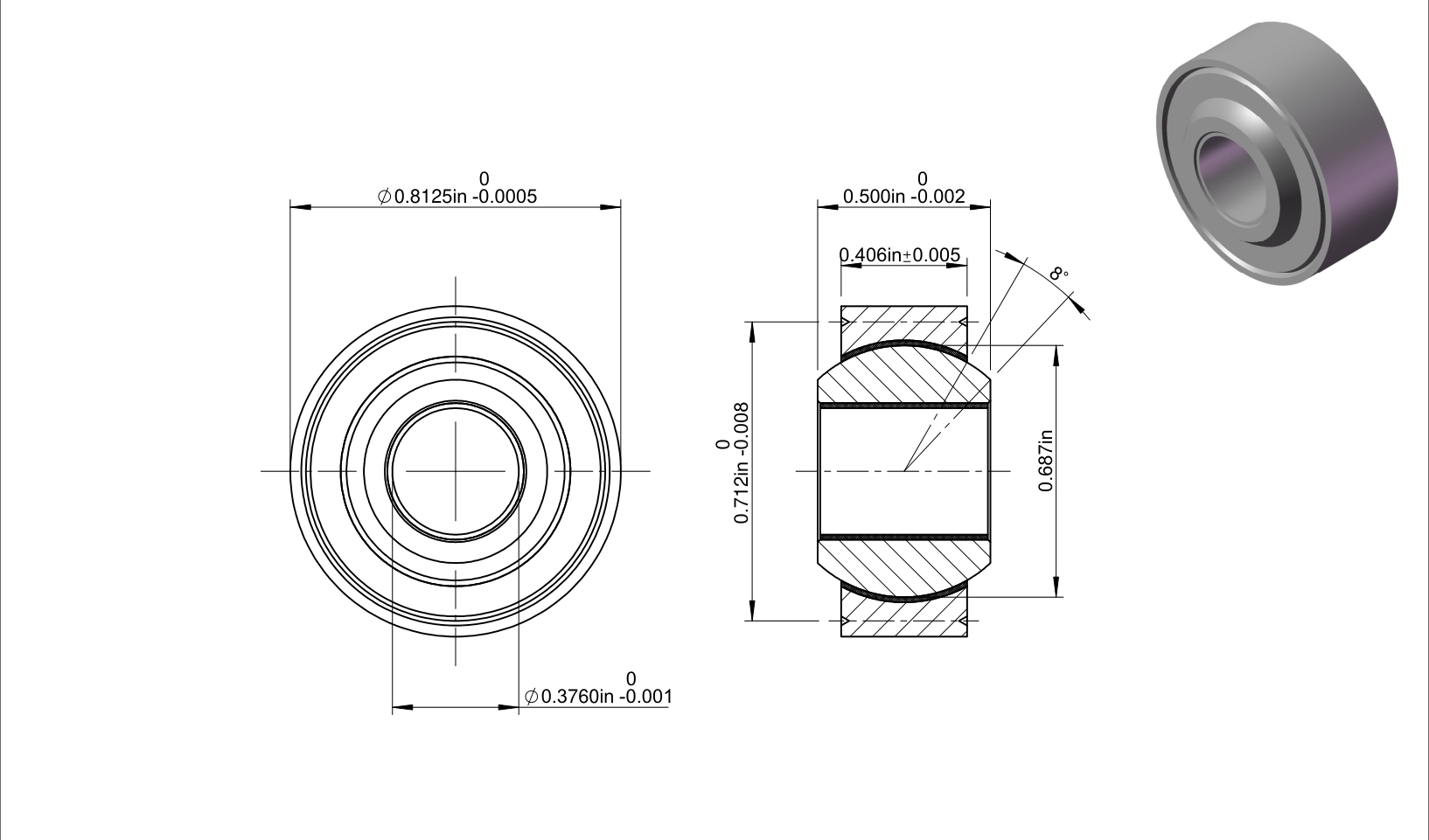

ADWL6V(L)
| Part Number | ADWL6V(L) |
| Standard Reference | M81820/3-6 |
| System of Measurement | Inch |
| Bore Dia | 0.376″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.406″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Ball Dia | 0.687″ |
| Pitch Dia | 0.712″ |
| Mis Alignment | 8° |
| Groove Depth | 0.035″ |
| Dynamic Radial Load | 6200 lbs |
| Static Radial Load | 13000 lbs |
| Weight | 0.06 lbs |
$71.37
