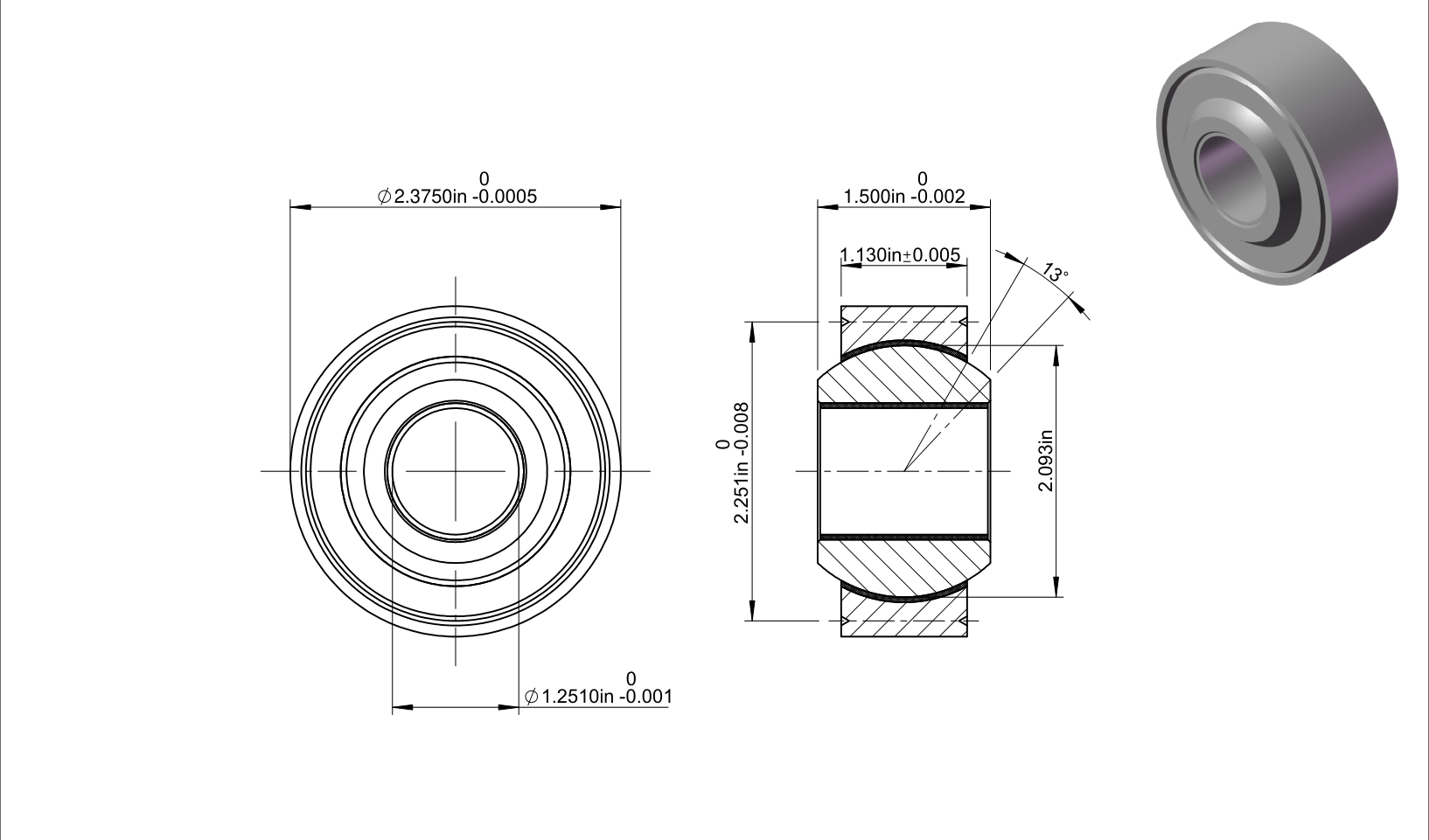

ADWL20V(L)
| Part Number | ADWL20V(L) |
| System of Measurement | Inch |
| Bore Dia | 1.251″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 2.375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.5″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1.13″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Ball Dia | 2.093″ |
| Pitch Dia | 2.251″ |
| Mis Alignment | 13° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 56620 lbs |
| Static Radial Load | 139690 lbs |
| Weight | 1.12 lbs |
$297.03
