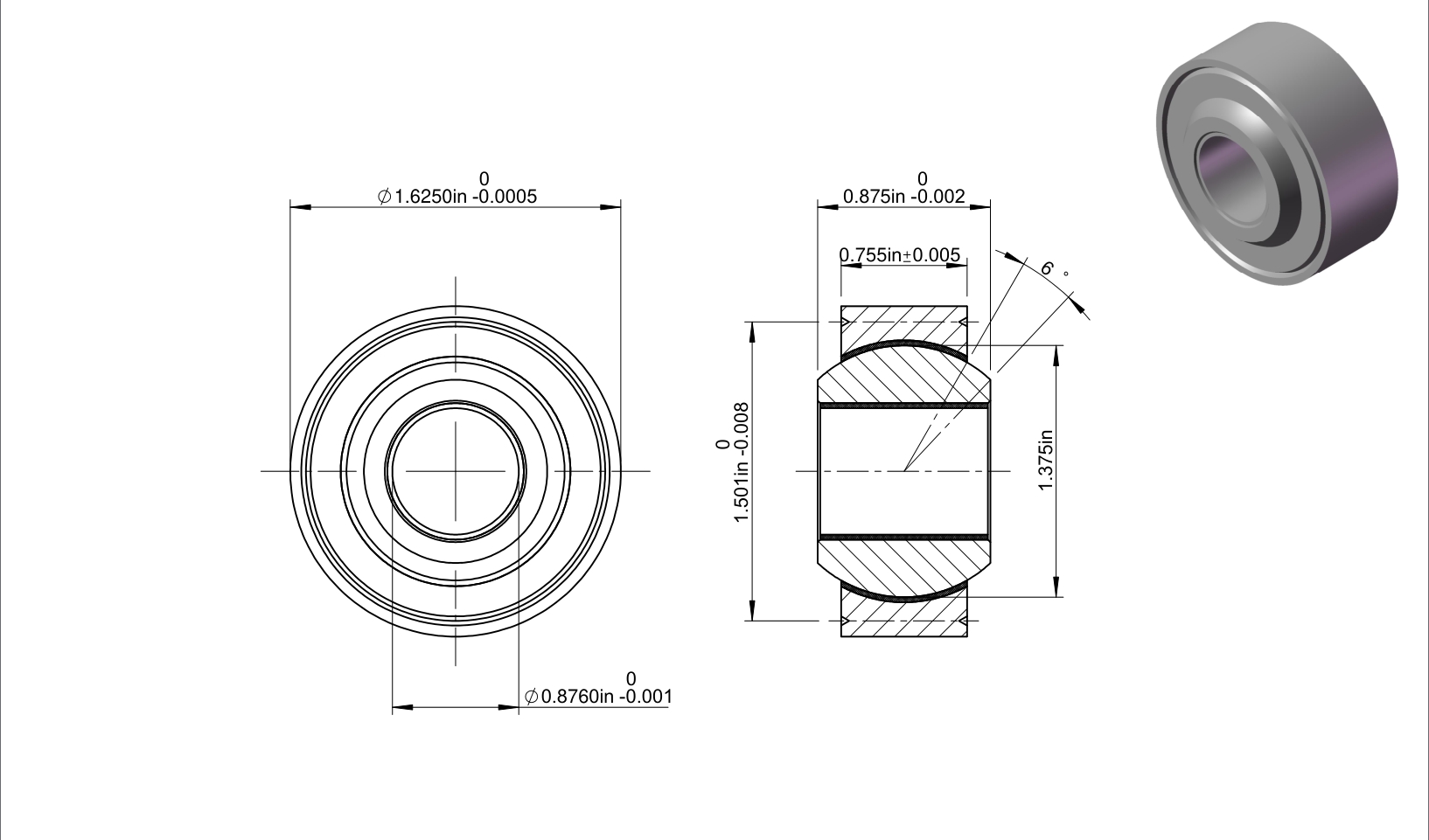

ADWL14V(L)
| Part Number | ADWL14V(L) |
| Standard Reference | M81820/3-14 |
| System of Measurement | Inch |
| Bore Dia | 0.876″ |
| Bore Dia Tolerance | -0.0010″ to 0″ |
| Outer Dia | 1.625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.875″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.755″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Ball Dia | 1.375″ |
| Pitch Dia | 1.501″ |
| Mis Alignment | 6° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 26750 lbs |
| Static Radial Load | 56000 lbs |
| Weight | 0.35 lbs |
$221.58
