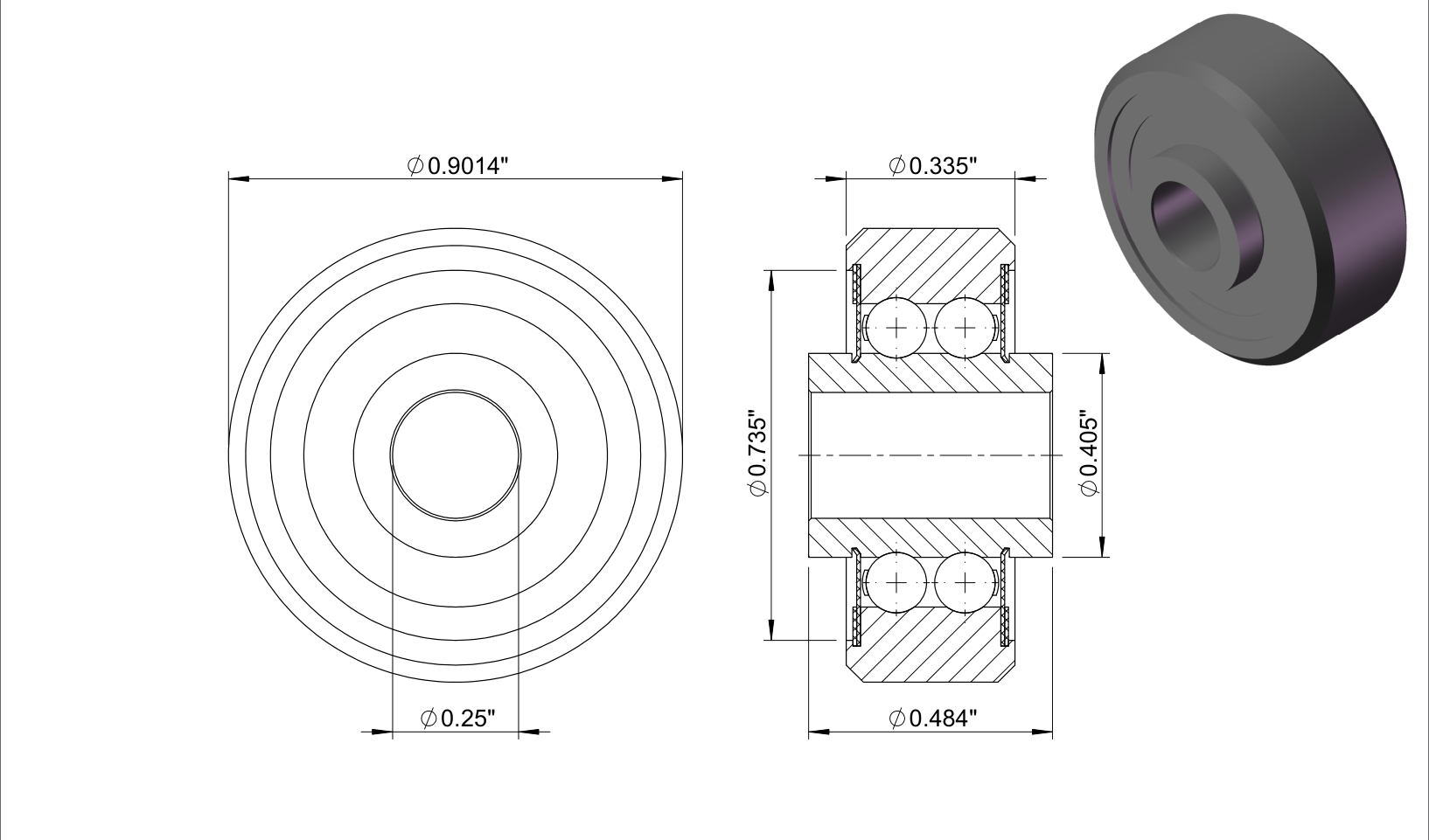

| Part Number | KP4K |
| Standard Reference | MS21443-4C |
| System of Measurement | Inch |
| Bore Dia | 0.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.9014″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ring Width Outer Height | 0.335″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.484″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 7 |
| Ball Complement Dia | 5/32″ |
| Ring Shoulder Outer | 0.735″ |
| Ring Shoulder Inner | 0.405″ |
| Ring Chamfer Outer | 0.034″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.004″ to 0.0010″ |
| Static Radial Load | 1710 lbs |
| Static Thrust Load | 800 lbs |
| Dynamic Radial Ring Inner Load | 1710 lbs |
| Dynamic Radial Ring Outer Load | 1710 lbs |
| Weight | 0.04 lbs |
