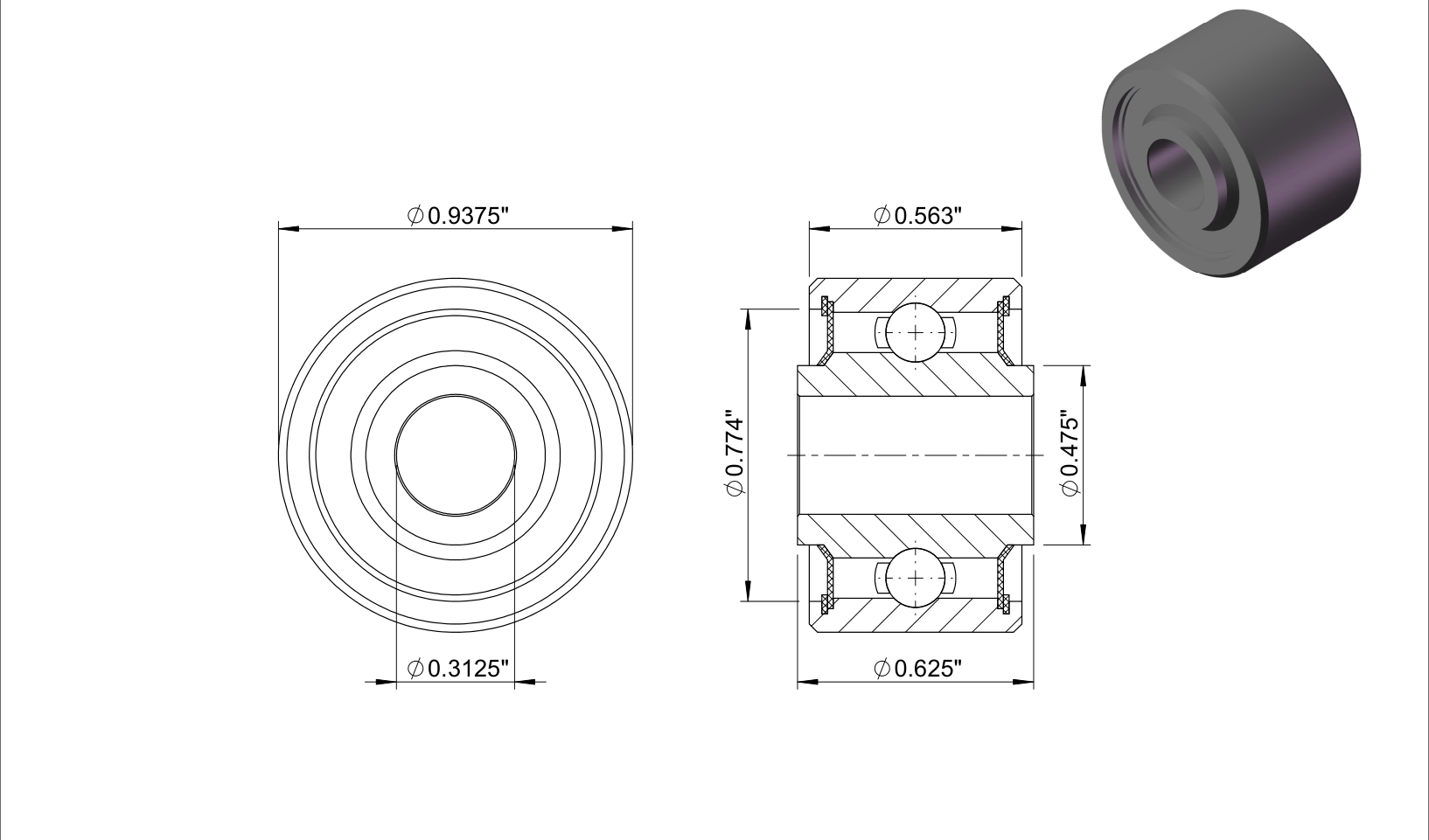

PD5K
| Part Number | PD5K |
| Standard Reference | MS21443-5B |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.9375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ring Width Outer Height | 0.563″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.625″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 14 |
| Ball Complement Dia | 5/32″ |
| Ring Shoulder Outer | 0.774″ |
| Ring Shoulder Inner | 0.475″ |
| Ring Chamfer Outer | 0.022″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.004″ to 0.0010″ |
| Static Radial Load | 3420 lbs |
| Static Thrust Load | 1030 lbs |
| Dynamic Radial Ring Inner Load | 3250 lbs |
| Dynamic Radial Ring Outer Load | 2800 lbs |
| Weight | 0.07 lbs |
$322.86
