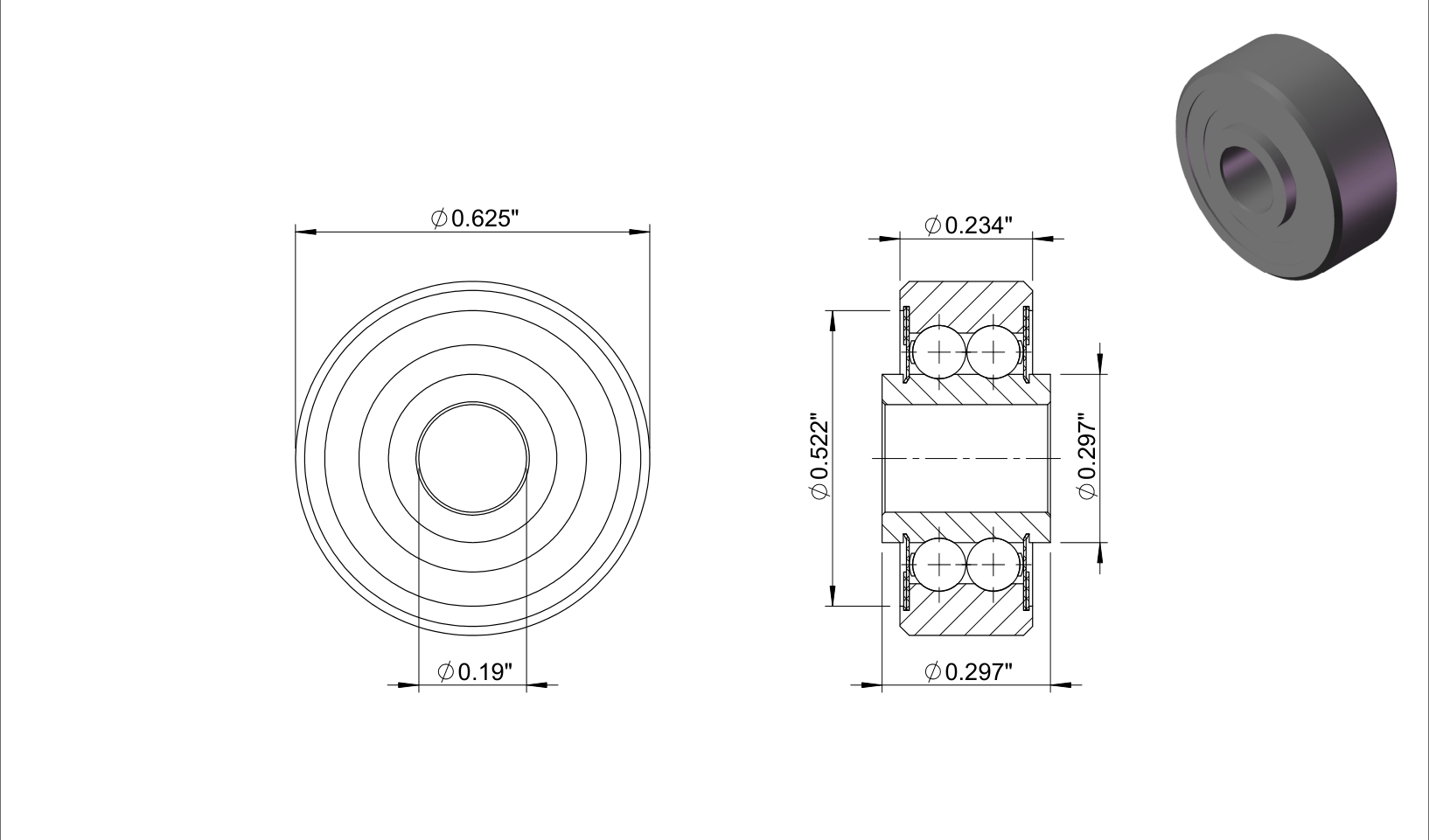

KP3AK
| Part Number | KP3AK |
| Standard Reference | MS21443-3A |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ring Width Outer Height | 0.234″ |
| Ring Width Outer Height Tolerance | -0.005″ to 0″ |
| Ring Width Inner Width | 0.297″ |
| Ring Width Inner Width Tolerance | -0.005″ to 0″ |
| Ball Complement No | 8 |
| Ball Complement Dia | 3/32″ |
| Ring Shoulder Outer | 0.522″ |
| Ring Shoulder Inner | 0.297″ |
| Ring Chamfer Outer | 0.016″ |
| Ring Chamfer Outer Tolerance | 0″ to 0.015″ |
| Ring Chamfer Inner | 0.005″ |
| Ring Chamfer Inner Tolerance | 0″ to 0.015″ |
| Radial Internal Clearance | 0.004″ to 0.0010″ |
| Static Radial Load | 705 lbs |
| Static Thrust Load | 385 lbs |
| Dynamic Radial Ring Inner Load | 705 lbs |
| Dynamic Radial Ring Outer Load | 705 lbs |
| Weight | 0.01 lbs |
$80.11
