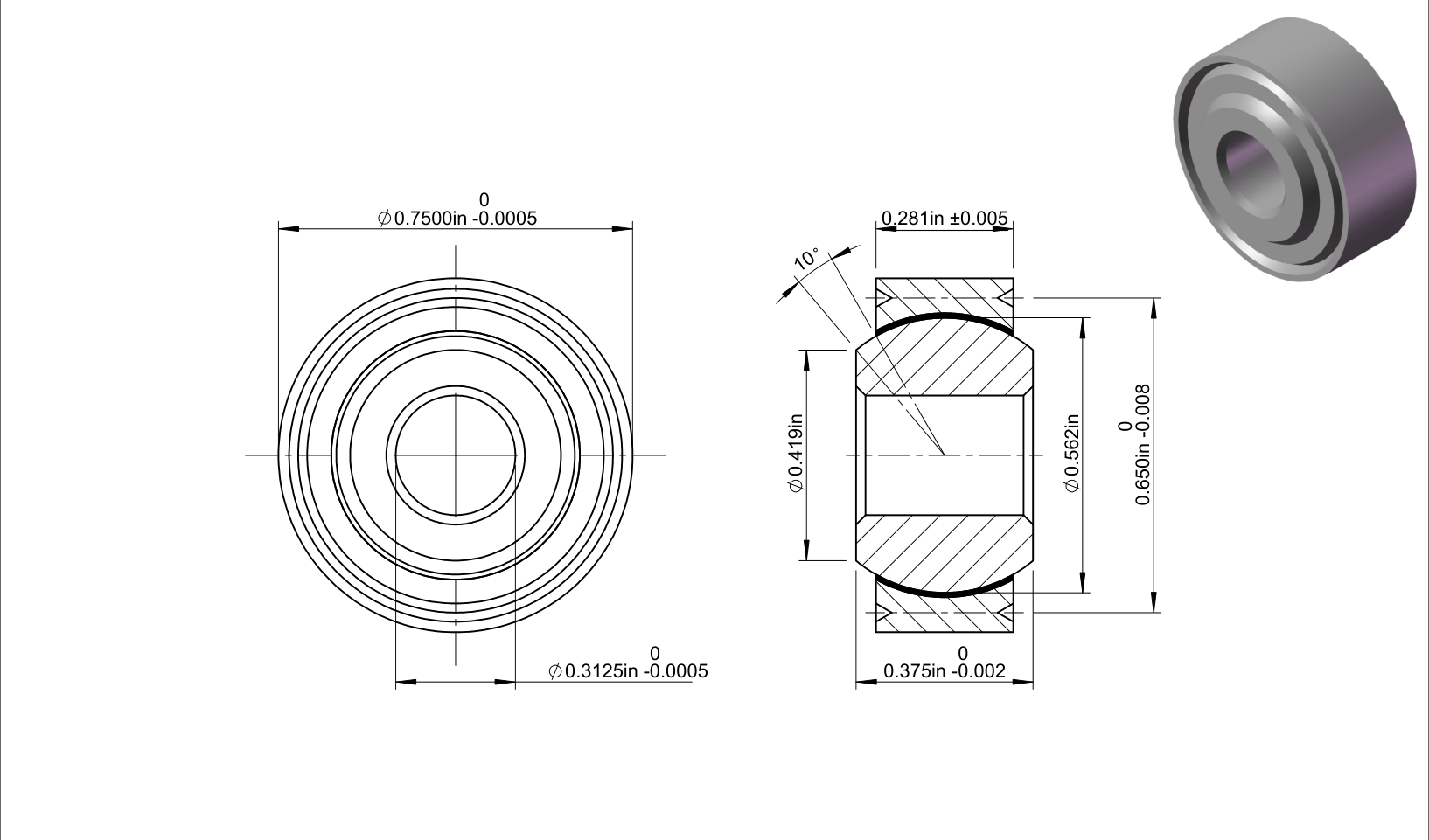

| Part Number | MKB5V |
| Standard Reference | MS14101A-5 |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.375″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.281″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.419″ |
| Ball Dia | 0.562″ |
| Pitch Dia | 0.65″ |
| Mis Alignment | 10° |
| Groove Depth | 0.035″ |
| Dynamic Radial Load | 5460 lbs |
| Static Radial Load | 8750 lbs |
| Weight | 0.03 lbs |
