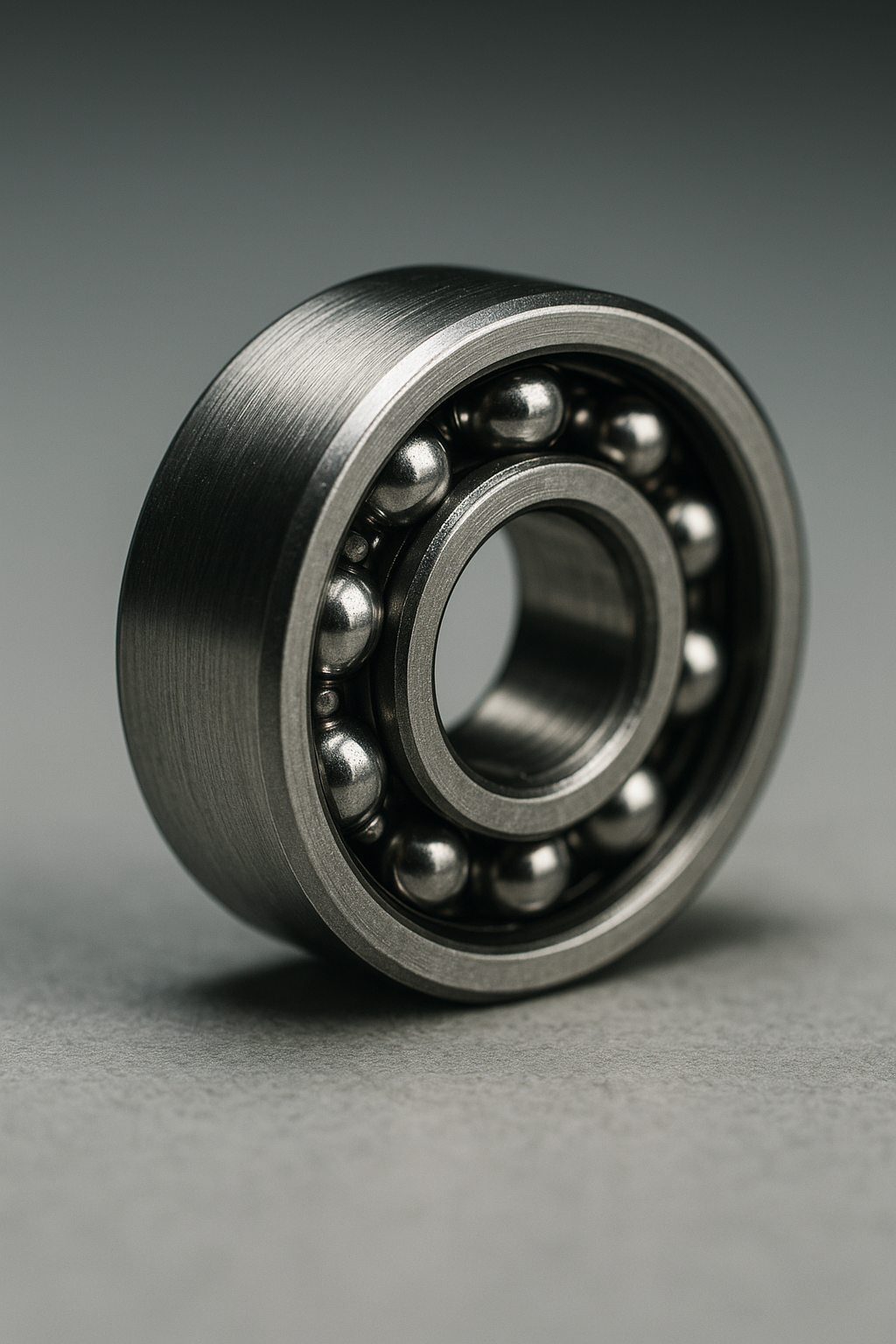

The S689 miniature ball bearing is a metric-size bearing designed for compact mechanical systems where dimensional accuracy, smooth motion, and material reliability are essential. As a dedicated model within the miniature bearings segment of ball bearings, S689 is widely adopted in precision-driven equipment that operates under light loads and limited installation space.
Belonging to the metric size standard miniature ball bearings range, the S689 provides consistent dimensions and interchangeability, helping engineers simplify design work while enabling procurement teams to source reliably from global suppliers.
Design Intent and Material Characteristics of S689
The S689 bearing is developed with a clear focus on miniaturization and precision performance. Its size profile allows it to fit into compact housings and small shaft assemblies without sacrificing rotational stability.
The “S” designation commonly refers to stainless steel construction, which enhances resistance to corrosion, moisture, and environmental exposure. This makes the S689 miniature bearing suitable not only for dry mechanical systems, but also for applications where cleanliness, humidity control, or frequent cleaning are factors.
From a functional perspective, S689 offers:
- Stable and smooth rotation for precision motion systems
- Metric standard sizing for easy replacement and system compatibility
- Improved durability in environments where carbon steel bearings may degrade
These qualities reflect the typical performance expectations of high-quality miniature ball bearings.
Position Within Ball Bearings and Miniature Bearings Categories
Within the broader ball bearings product family, miniature bearings such as the S689 are categorized primarily by size and application focus, rather than by specialized load configurations. The S689 fits squarely into this category, serving equipment that prioritizes compact design, accuracy, and operational consistency.
Its classification as a metric size standard miniature ball bearing ensures alignment with international design norms, allowing seamless integration into equipment manufactured for global markets.
| Classification Level | Category |
|---|---|
| Bearing Family | Ball Bearings |
| Size Segment | Miniature Bearings |
| Standard | Metric Size Standard Miniature Ball Bearings |
| Model | S689 |
Typical Applications and Use Scenarios
Thanks to its compact dimensions and material properties, the S689 miniature ball bearing is commonly used in applications where space efficiency and precision motion are critical:
- Medical devices and laboratory instruments
- Optical systems and measurement equipment
- Small electric motors and compact drive units
- Automation components, sensors, and control mechanisms
In these systems, the S689 functions as a reliable miniature bearing solution, supporting consistent movement and reducing mechanical variation over long operating cycles.
Selection and Procurement Considerations
For engineers and buyers, the S689 offers a balance between standardization and application flexibility. Its metric sizing simplifies design validation and replacement planning, while stainless steel material reduces maintenance risks over the product lifecycle.
When compared with non-standard miniature bearings, the S689 is often preferred for its:
- Broad market availability
- Predictable performance characteristics
- Compatibility across multiple industries using miniature bearings
These factors make it a practical option for both prototype development and volume production.
Conclusion
The S689 miniature ball bearing is a metric-standard bearing engineered for precision applications operating in compact spaces. As part of the miniature bearings category within ball bearings, it combines size efficiency, material reliability, and global compatibility into a single, widely used model.
For designers and procurement professionals seeking dependable metric miniature ball bearings, S689 remains a proven and versatile choice.
