Aluminum Oxide Al2O3 Ceramic Balls 9.5 mm bearing Alumina Balls

Aluminum Oxide Al2O3 Ceramic Balls 9.5 mm

Part Number Aluminum Oxide Al2O3 Ceramic Balls 9.5 mm
System of Measurement Metric
Construction Solid
Shape Ball
Color White

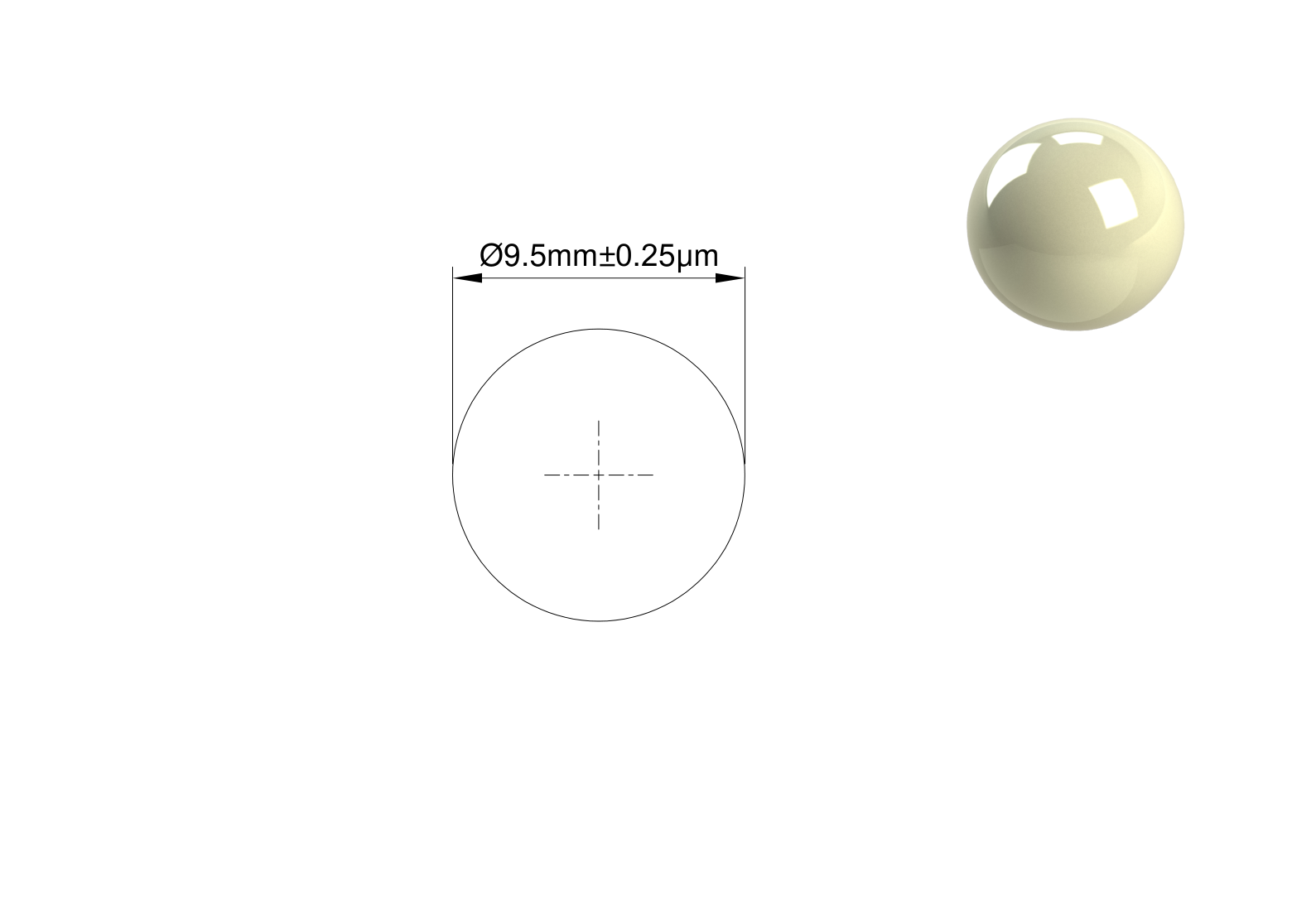

Ball Diameter 9.5 mm
Ball Dia Tolerance ±0.25 μm
Ball Grade 10
Balls Material Al2o3
Temperature Range -176 to 1832 °F
Coefficient Of Thermal Expansion 46 × 10-7/° F
Thermal Conductivity 194.5 Btu/hr. × in./sq. ft./°F @ 212° F
Sphericity 0.25μm
Density 3.95 g/cm3
Ball Hardness 80 HRC
Material Composition(Alumina) 96-99.8%
RoHS Compliant
REACH Compliant
Weight 1.77g

$3.50
