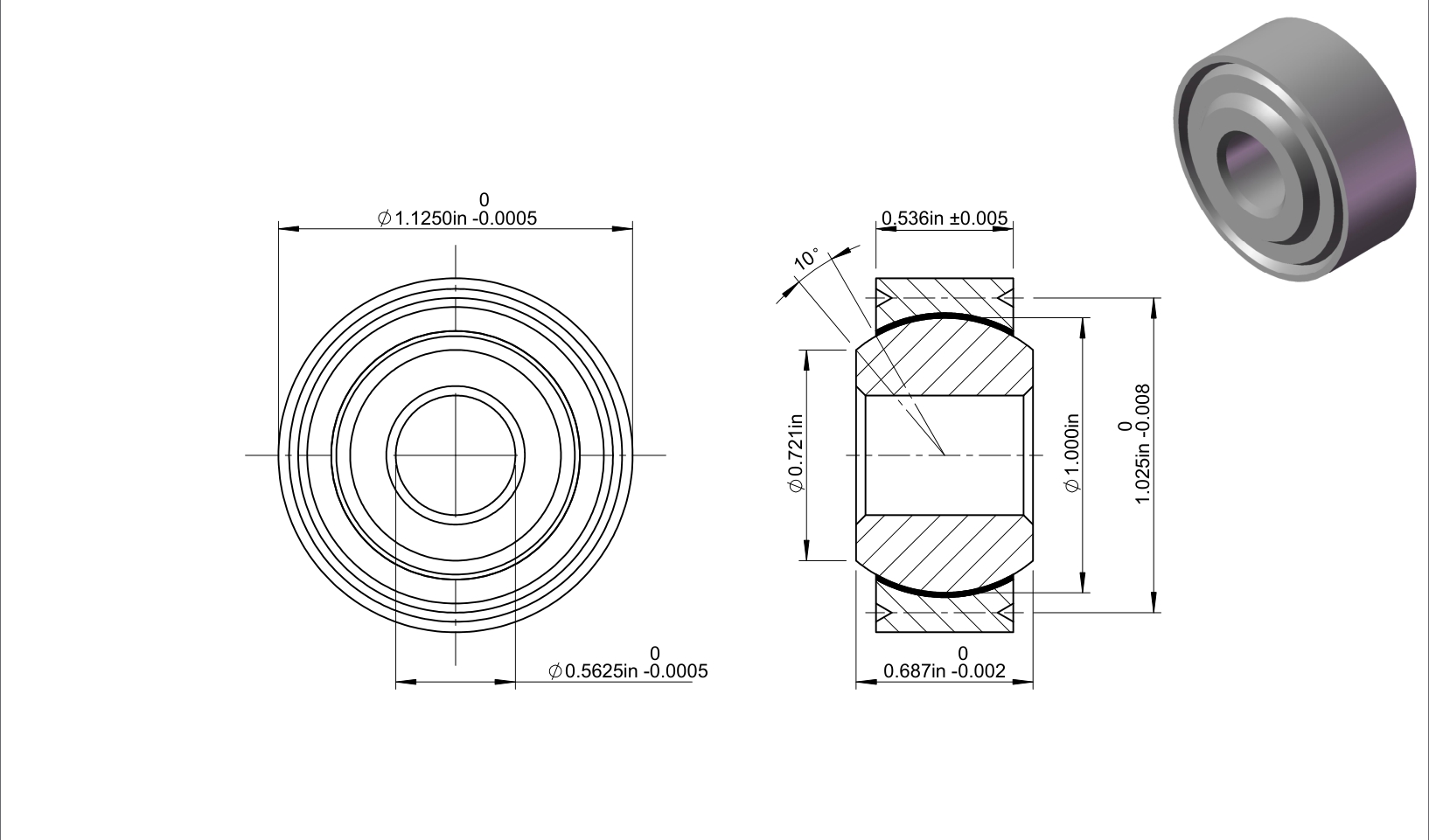

| Part Number | MKW9V |
| Standard Reference | MS14103A-9 |
| System of Measurement | Inch |
| Bore Dia | 0.5625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.687″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.536″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.721″ |
| Ball Dia | 1″ |
| Pitch Dia | 1.025″ |
| Mis Alignment | 10° |
| Groove Depth | 0.035″ |
| Dynamic Radial Load | 18100 lbs |
| Static Radial Load | 26600 lbs |
| Weight | 0.135 lbs |
