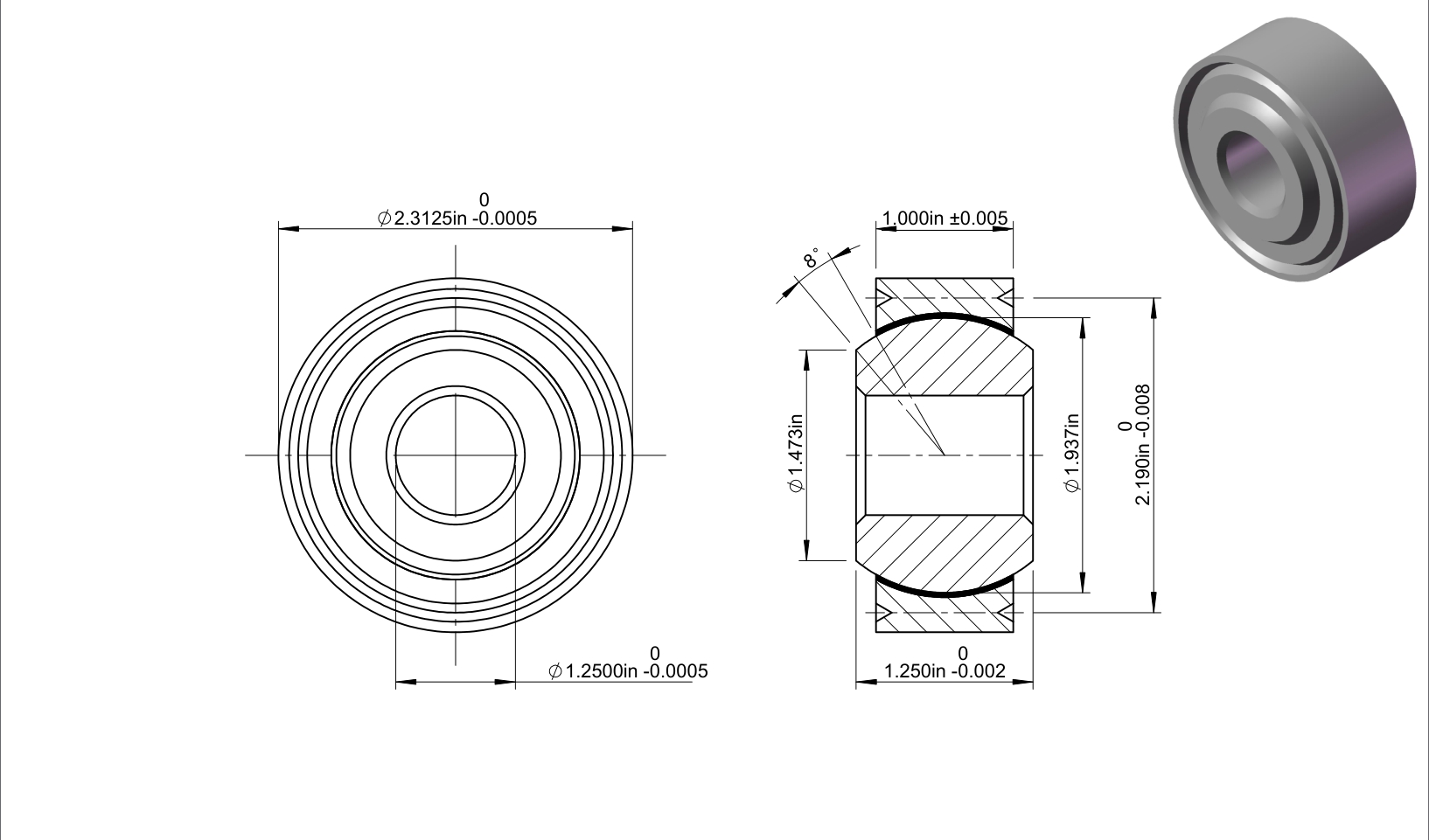

MKB20V
| Part Number | MKB20V |
| System of Measurement | Inch |
| Bore Dia | 1.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.3125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.25″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 1.473″ |
| Ball Dia | 1.937″ |
| Pitch Dia | 2.19″ |
| Mis Alignment | 8° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 52490 lbs |
| Static Radial Load | 131230 lbs |
| Weight | 0.93 lbs |
$354.12
