Design Features of Silicon Nitride Si3N4 Ceramic Balls 1/4 inch

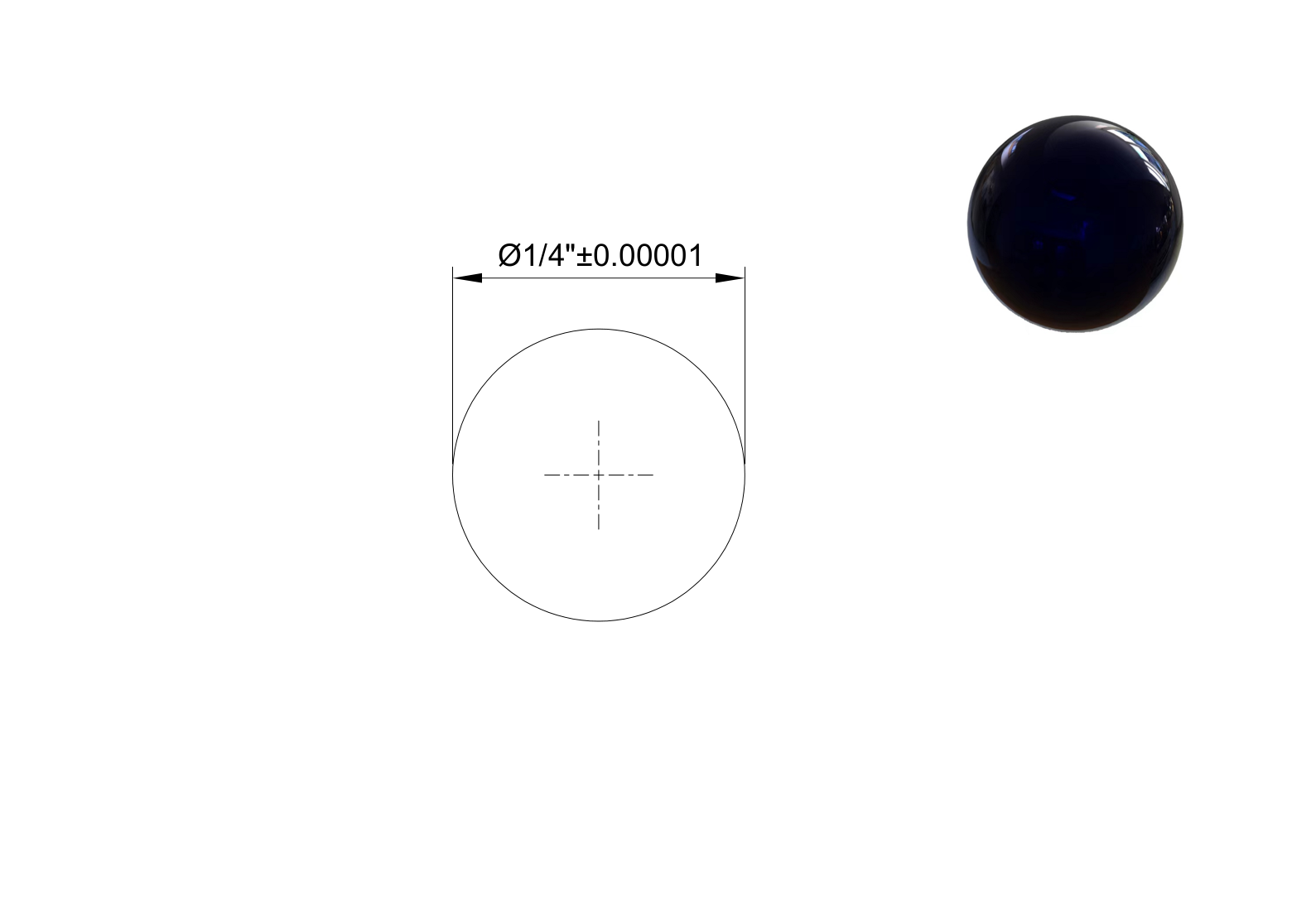

The Silicon Nitride Si3N4 Ceramic Balls 1/4 inch are engineered for high-performance and demanding applications. They are lightweight with a density of 3.20-3.30 g/cm3. With a ball grade of 10 and a precise ball diameter tolerance of ±0.000010″, these balls are designed for accuracy. Their sphericity of 0.000010″ ensures smooth operation, while the hardness of 75-80 HRC provides excellent wear resistance. These silicon nitride balls comply with RoHS and REACH standards.
What Benefits Can Silicon Nitride Si3N4 Ceramic Balls 1/4 inch Provide?
- Temperature Resistance: Performs reliably in temperatures as high as 800°C.
- Chemical Resistance: Withstands exposure to corrosive chemicals or saltwater without degradation.
- Reduced Weight: These silicon nitride balls are lighter than steel, which boosts efficiency in high-speed or high-stress applications.
- Friction Reduction: Their smooth surface reduces friction, leading to lower wear on components.
- Non-Conductive: Protects against electrical arcing in systems requiring high voltage insulation.
- Longer Lifespan: Resistant to wear and fatigue, extending the operational life of systems.
What Can Silicon Nitride Si3N4 Ceramic Balls 1/4 inch Be Used for?
- Aerospace: Jet engines and components exposed to extreme temperatures.
- Automotive: High-performance ball bearings in transmissions.
- Power Generation: Bearings in turbines and other high-temp energy systems.
- Robotics: Precision bearings in robotic arms and automation systems.
- Biotechnology: Precision instruments for labs and medical research.
