Angular Contact Ball Bearings

Angular Contact Ball Bearings are designed with offset raceways, enabling them to handle combined axial and radial loads efficiently. They are widely used in high-performance applications such as industrial pumps, electric motors, gearboxes, robotics, aerospace systems, and precision machinery due to their high-speed capability, precision accuracy, and load-bearing flexibility.

+ read more ↓

What Are Angular Contact Ball Bearings?

Angular contact ball bearings feature raceways on the inner and outer rings that are positioned relative to each other at an angle to the bearing axis. This unique configuration allows them to carry both radial and axial loads at the same time. The greater the contact angle, the higher the axial load-carrying capacity of the bearing.

Design and Structural Highlights

Contact Angle

The contact angle is defined as the angle between the line joining the ball and the raceway contact points in the radial plane and a line perpendicular to the bearing axis. It is a key factor in determining how much axial load a bearing can support.

Load Distribution

As the contact angle increases, the bearing’s ability to support axial loads also increases, making it ideal for applications with high thrust demands.

Cage and Sealing

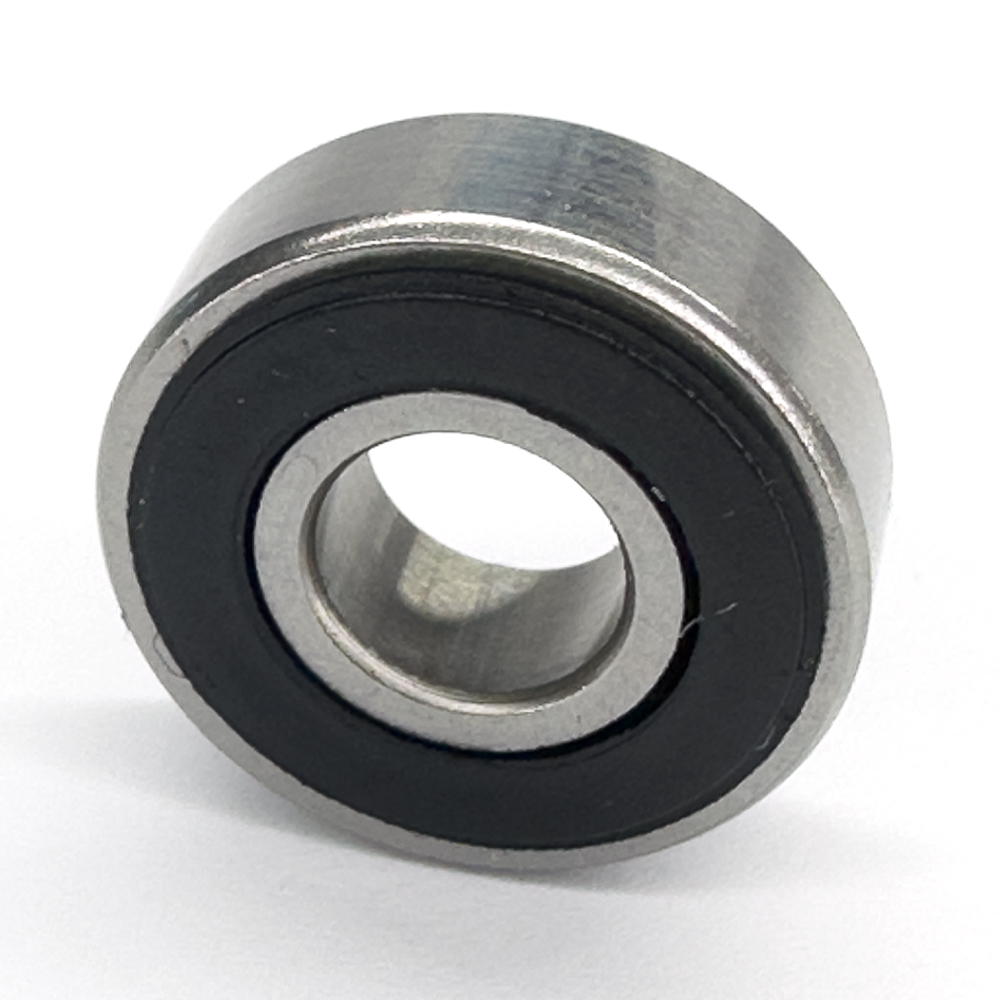

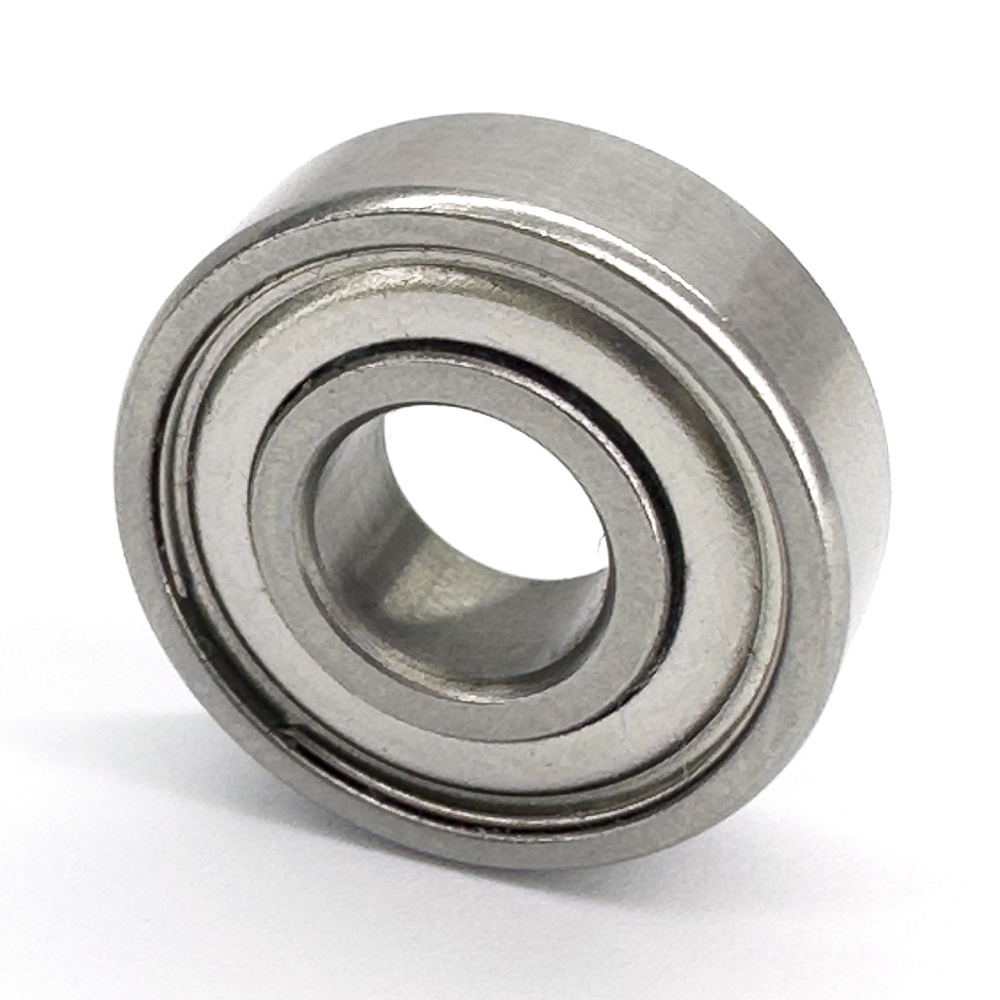

Angular contact bearings often include a cage to maintain ball separation and smooth operation. Sealed variants offer enhanced protection from contaminants and are preferred for high-precision or demanding environments.

Advantages of Angular Contact Ball Bearings

Combined Load Handling: Capable of managing axial and radial loads simultaneously.
High-Speed Performance: Suitable for applications requiring stable, high-speed rotation.
Precision and Accuracy: Ideal for high-precision applications such as CNC spindles and robotic joints.
Adjustable Contact Angle: Allows customization based on specific application loads.
Low Friction: Reduced heat generation increases efficiency and extends service life.

Types of Angular Contact Ball Bearings

Type	Load Handling	Key Features	Speed	Precision	Applications

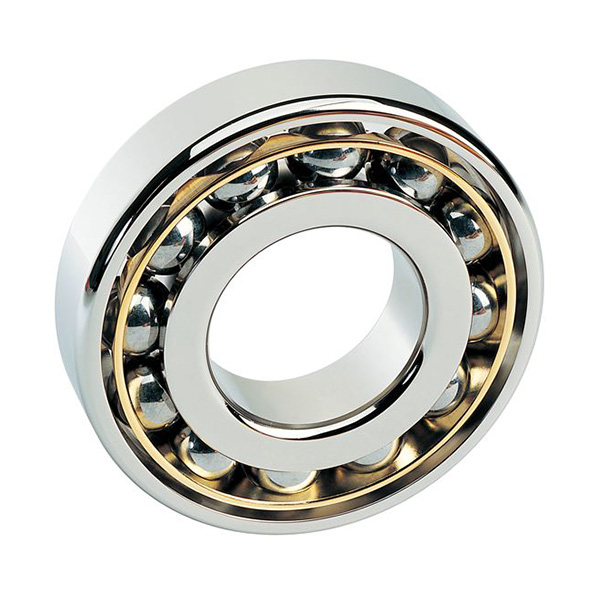

Single Row Angular Contact	Axial (one direction), Radial	Compact, non-separable	Moderate to High	Standard to High	Pumps, Compressors, Machine Tools

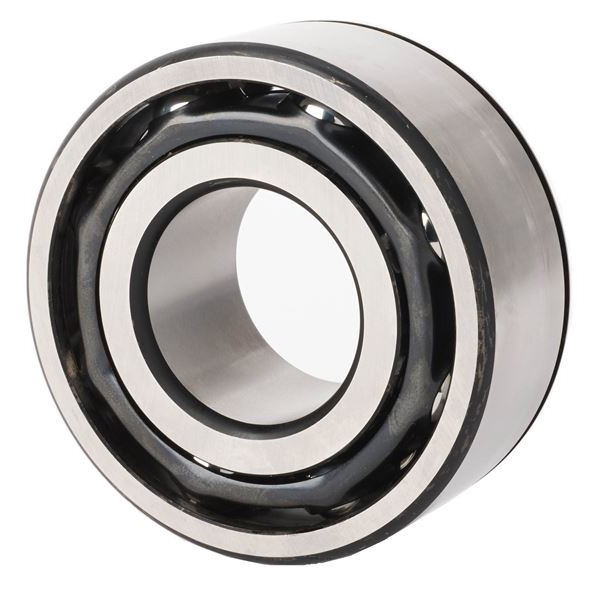

Double Row Angular Contact	Axial (both directions), High Radial	Self-retaining, angular rigidity	Moderate	Standard to High	Wheel Hubs, Industrial Machinery
Four-Point Contact	Axial (both directions), Radial	Replaces 2 single-row bearings	High	High to Super-Precision	Robotics, Aerospace, Turntables
Angular Contact Thrust	High Axial, Moderate Radial	High axial rigidity	Very High	High to Super-Precision	Spindles, Axial Fans, Jet Engines
Super Precision Angular Contact	High-Speed Axial & Radial	Ultra-low friction, tight tolerance	Extremely High	Super-Precision	Aerospace, Medical, CNC Spindles

Understanding Spindle Bearings

Spindle bearings are a specialized class of angular contact ball bearings tailored for ultra-high precision and speed:

Superior Precision: Manufactured to exacting standards, ideal for applications like CNC and grinding spindles.
High-Speed Capability: Designed to sustain exceptionally high rotational speeds with stability.
Axial Load Focus: Optimized for high axial loads, which is common in spindle-driven operations.
Advanced Materials: Often incorporate ceramic balls or hybrid designs to reduce friction and heat buildup.
Application-Specific Design: Common in aerospace, medical devices, and ultra-precise machine tools.

Conclusion

Angular Contact Ball Bearings provide a balanced, high-performance solution for managing complex load combinations in demanding environments. Whether for heavy-duty machinery or high-precision equipment, these bearings offer flexibility, speed, and durability, making them a vital component in modern engineering applications.
