Self-Aligning Ball Bearings

Self Aligning Ball Bearings are engineered to correct shaft misalignment and deflection issues, making them ideal for applications with flexible shafts or imperfect bearing seat alignment. With dual rows of balls and a sphered outer raceway, they operate smoothly under both radial and axial loads in either direction, offering high-speed performance and long-term reliability. Interchangeable with SKF.

+ read more ↓

What Are Self Aligning Ball Bearings?
Self Aligning Ball Bearings are a specialized type of rolling bearing designed to handle angular misalignments between the shaft and the housing. Their unique internal structure allows for continuous alignment adjustments during operation, minimizing stress on machinery and extending bearing life. These bearings are commonly used in systems where shaft deflection, mounting errors, or housing misalignment are frequent.

Design and Structural Features

Dual Row Ball Design: Features two rows of balls that enable greater load capacity and allow for inner ring movement.
Sphered Raceway: A common spherical raceway in the outer ring enables automatic adjustment of the bearing components, maintaining alignment under dynamic conditions.
Inner Ring Grooves: Deep uninterrupted raceway grooves in the inner ring provide stability and smooth rotation.
Material Options: Available in standard chrome steel and stainless steel for corrosion resistance in harsh environments.

Key Advantages

Angular Misalignment Compensation: Can tolerate misalignment angles of up to 4–7°, making them suitable for imperfect setups.
High-Speed Capability: Designed with low friction for cool operation at higher speeds, ideal for dynamic systems.
Low Maintenance Requirements: Reduced heat generation results in less wear and longer service intervals.
Efficient Under Light Loads: Performs optimally when carrying moderate radial and axial forces.
Noise and Vibration Reduction: Maintains better shaft alignment, reducing mechanical noise and system vibrations.

Cage Types and Sealing Options

Pressed Steel Cages: Most common cage material, offering strength and durability.

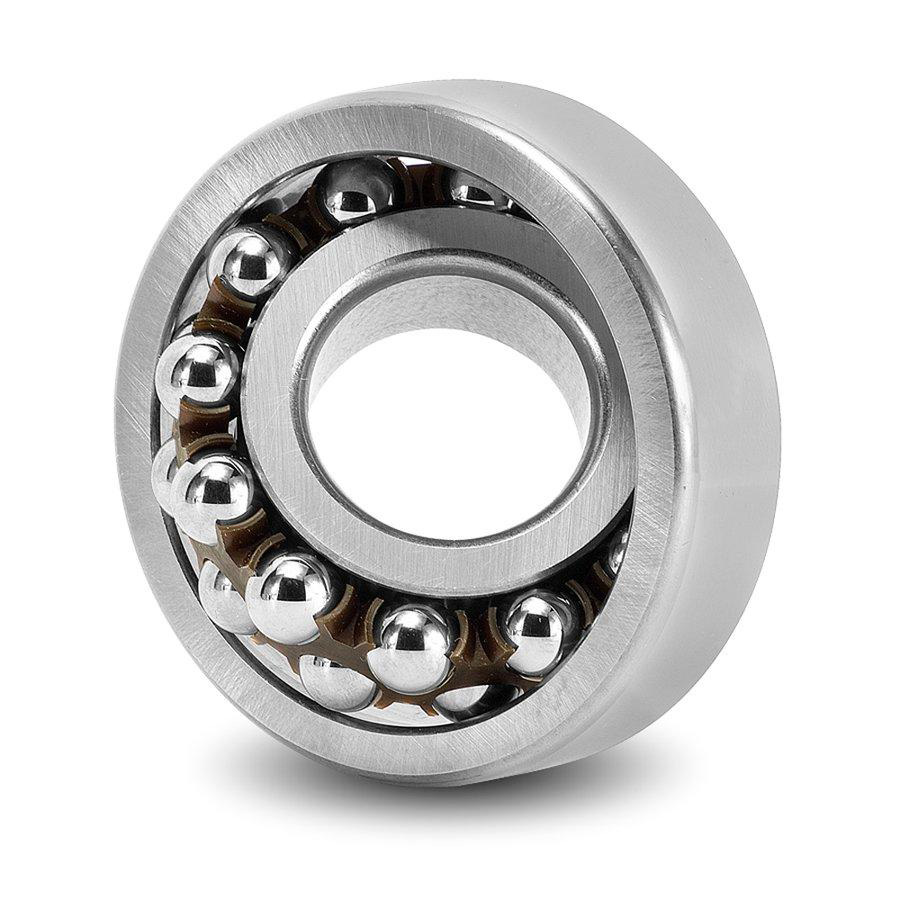

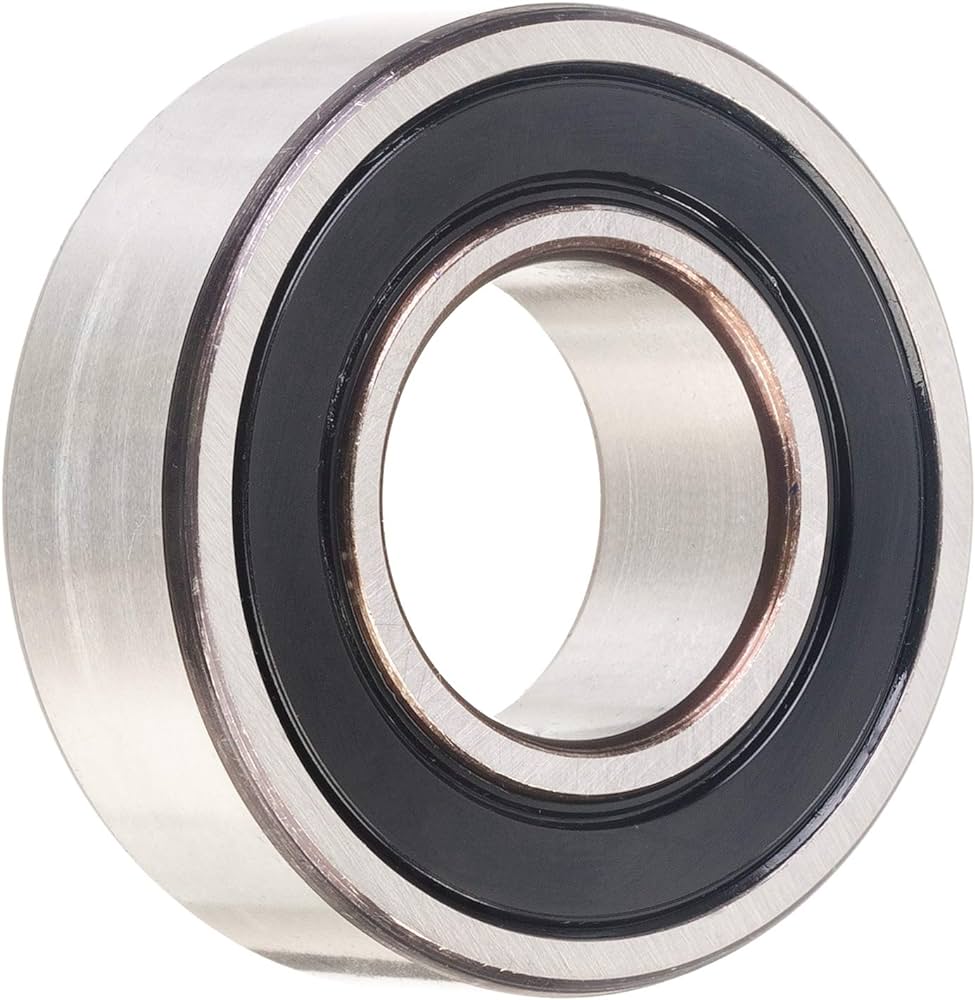

Open and Sealed Variants: Open bearings are suited for clean environments, while sealed versions are lubricated for life and provide protection from dust and contaminants.

Typical Applications
Self Aligning Ball Bearings are used across many industries due to their flexibility and reliability:

Transmission Shafts: Accommodates shaft bending and mounting misalignment.
Gearboxes and Speed Reducers: Ensures smooth performance in mechanically complex environments.
Electric Motors and Fans: Reduces vibration and supports quieter operation.
Agricultural Equipment: Withstands uneven loads and rough operating conditions.
Textile Machinery: Delivers precise, low-vibration performance in high-speed systems.

Interchangeability
These bearings are interchangeable with SKF models, ensuring ease of replacement and sourcing within global supply chains.

Conclusion
For operations requiring durability, noise reduction, and tolerance for misalignment, Self Aligning Ball Bearings offer a robust and efficient solution. Their ability to self-correct misalignment makes them essential in applications where alignment precision is difficult to maintain.
