Cylindrical Roller Bearings

What Are Cylindrical Roller Bearings?

Cylindrical roller bearings are rolling-element bearings designed to support heavy radial loads. They consist of an inner ring, outer ring, and cylindrical rollers that move in a linear direction, reducing friction and wear. Ribs or flanges on the rings guide the rollers, ensuring proper alignment and uniform load distribution across a broad contact surface.

Design and Construction

These bearings are engineered for durability and high load-carrying capacity. Their design allows for large contact areas between rollers and raceways, minimizing surface stress. The inclusion or omission of cages in various configurations also influences performance and load capability.

Available Configurations

• Single-Row Cylindrical Roller Bearings: Ideal for low-to-moderate speed applications with high radial loads.

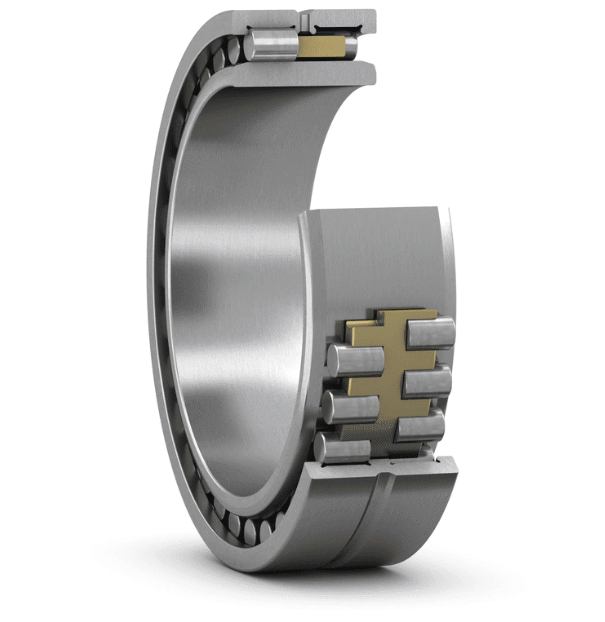

• Double-Row Cylindrical Roller Bearings: Provide higher radial load capacity and stability for more demanding conditions.
• Full Complement Cylindrical Roller Bearings: No cages—maximized roller count for extreme radial load capacity, best suited for slow rotational speeds.

Advantages of Cylindrical Roller Bearings

• High Radial Load Capacity: The linear contact between rollers and raceways enables excellent load handling.
• Low Friction: Precision machining and rolling elements reduce friction and operational heat.
• Misalignment Tolerance: Certain designs allow for minor misalignment, reducing stress on connected components.
• Extended Service Life: Optimized load distribution and material durability minimize wear and maintenance needs.

Compensation for Misalignment

Cylindrical roller bearings are specifically designed to tolerate minor misalignments between the shaft and housing. This feature is especially beneficial in large, heavy-duty machinery where perfect alignment cannot always be guaranteed. Misalignment tolerance helps prevent premature failure and ensures smoother operation.

Sealed and Split Designs

• Sealed Cylindrical Roller Bearings: Offer protection from contaminants such as dust and moisture, while retaining lubrication. This enhances service life and reduces maintenance intervals.
• Split Cylindrical Roller Bearings: Designed for applications where bearing replacement without dismantling surrounding components is necessary. These are especially useful in hard-to-access equipment.

Common Industrial Applications

Thanks to their robustness and adaptability, cylindrical roller bearings are employed in a wide array of industries:

• Automotive: Wheel hubs, gearboxes, and transmissions
• Aerospace: Jet engines, landing gear systems
• Construction Equipment: Hydraulic pumps, crane systems
• Mining: Conveyors, crushers, drilling rigs
• Power Generation: Turbines, generators
• Railways: Axle boxes, traction motors
• Wind Energy: Gearboxes, rotor shafts

Overall Benefits

Cylindrical roller bearings combine performance, reliability, and customization to suit nearly any high-load industrial application. Their ability to operate under harsh conditions, with minimal maintenance and high longevity, makes them a top choice for engineers and OEMs seeking durability and precision.

Interchangeability

Corebearing’s Cylindrical Roller Bearings are fully interchangeable with global brands such as SKF, making them an ideal solution for OEM replacements or system upgrades.

Conclusion

Whether you need a solution for high-speed powertrains, heavy-duty machinery, or precision engineering environments, Cylindrical Roller Bearings provide the strength, adaptability, and reliability you can count on. Choosing the right bearing type not only ensures optimal performance but also reduces downtime and maintenance costs over the long term.
