Single-Row Cylindrical Roller Bearings with Inner Ring

Overview of Single Row Cylindrical Roller Bearings With Inner Ring

Single row cylindrical roller bearings with inner rings are designed to handle substantial radial loads while maintaining exceptional rotational accuracy. These bearings consist of a solid outer ring, a solid inner ring, and a cage assembly loaded with cylindrical rollers. The incorporation of a dedicated inner ring provides greater flexibility in applications where the shaft cannot be used as a raceway.

Design and Construction

The key structural components of these bearings include:

Inner Ring: Precision ground and hardened, serving as a raceway for the rollers.
Outer Ring: Solid construction with or without flanges, depending on bearing type.
Cage: Typically made of steel or polyamide, guiding the cylindrical rollers evenly.
Rollers: Line-contact cylindrical elements that enable high load-carrying capacity and low friction.

The inner ring allows the bearing to operate independently of the shaft surface quality, making it suitable for applications with rotating shafts or those that require easy installation and removal.

Key Benefits

Supports heavy radial loads with minimal wear.
High speed capability with low friction due to optimized roller guidance.
Precision inner ring improves reliability and extends service life.
Reduces sensitivity to shaft surface quality and misalignment.

Typical Applications

These bearings are commonly used in applications such as:

Gearboxes and transmission units
Electric motors and large pumps
Paper mills and rolling mills
Railway axle boxes and heavy-duty machinery

Design Variants Available

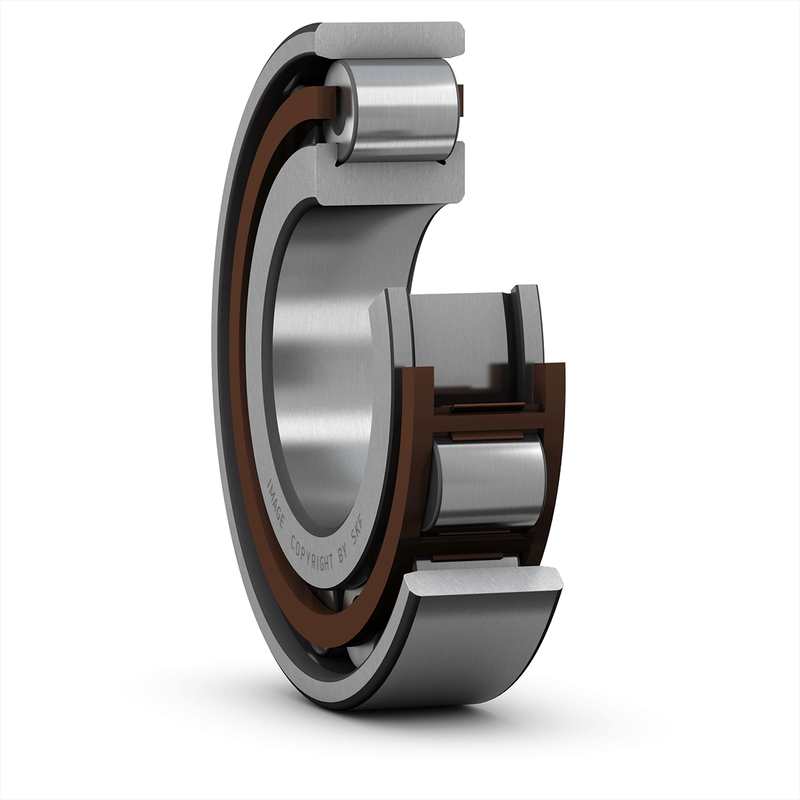

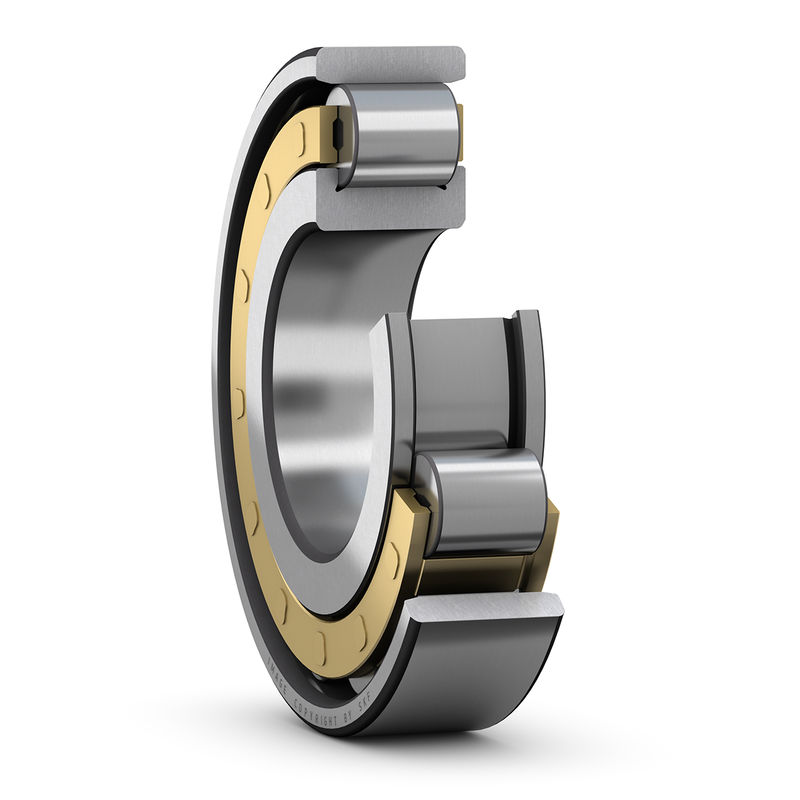

Single row cylindrical roller bearings with inner rings are available in several configurations, including NU, NJ, NUP, and N types. Each offers specific benefits in axial displacement or location control, making it easy to match the bearing to your operational needs.

Interchangeability

Corebearing’s Single Row Cylindrical Roller Bearings With Inner Ring are fully interchangeable with leading brands such as SKF, ensuring smooth replacement, global compatibility, and dependable performance.

Conclusion

For industrial systems demanding strength, durability, and precise rotation, Single Row Cylindrical Roller Bearings With Inner Ring are an excellent solution. Their ability to handle high radial loads while compensating for shaft surface limitations makes them an ideal choice across heavy-duty sectors.
