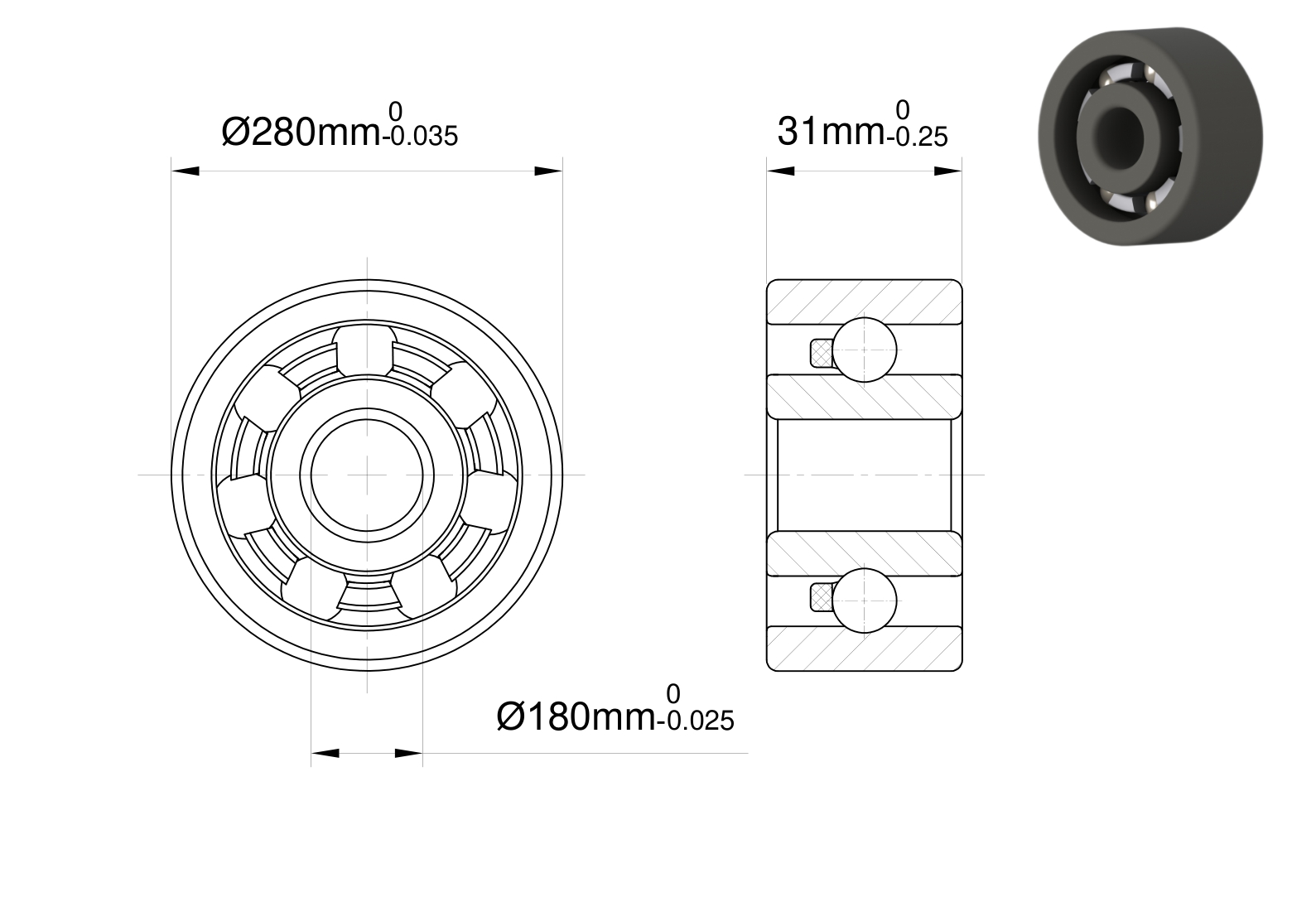

16036 Ceramic Bearings is a full-ceramic deep-groove ball bearing. Radial guidance and internal contact define the main selection questions for this construction. Its dimensional envelope is bore 180 mm, outside diameter 280 mm, and width 31 mm. The enclosure is open. Consider these features as parts of the installed contact system, together with component materials and the actual duty, rather than treating the ceramic designation as a performance rating.
Radial Guidance and the Raceway Contact
Force travels from the shaft seat through the inner ring, ball contacts and outer ring to the housing. Deep grooves provide radial guidance and allow axial reaction within the limitations of the bearing arrangement. The direction and magnitude of the actual forces matter more than the ceramic family label. Its stated load direction is Radial.
A shaft may be well supported radially yet still need a deliberate means of axial location. Decide which bearing locates the shaft and which permits thermal movement. Excessive clamping or a distorted housing can concentrate the load on a small part of the circumference, changing heat generation and contact stress.
Choosing the Component Combination
The rings entry offers Silicon Nitride, Zirconia, and Silicon Carbide as selectable alternatives, not one fixed combination. The rolling elements entry offers Si3n4, Zro2, and Sic as selectable alternatives, not one fixed combination. The cage entry offers PEEK, PTFE, and Full Complement as selectable alternatives, not one fixed combination. Full Complement is an arrangement option, not a polymer or other cage material. Keep each material tied to its own part. A rolling-element compound does not identify the rings, and the cage remains a separate choice with its own guidance and lubricant-compatibility requirements.
Full-ceramic construction concerns rings and rolling elements. It does not make the cage ceramic or make different ceramic compounds equivalent. Compare the actual contact pair, support materials and temperature gradients. Density, elastic response and thermal expansion influence the operating condition, but a ceramic name alone cannot establish chemical compatibility, electrical isolation or an allowable duty.
Interpreting the Operating Data
The load data for 16036 Ceramic Bearings include dynamic radial rating 7762 lbf and static radial rating 8212 lbf. Dynamic and static ratings are not alternative labels for the same operating limit. Dynamic data support a rolling-load life assessment; static data address the risk of lasting contact deformation. Resolve the forces at the bearing and apply the appropriate calculation before comparing the machine duty with either value. The fatigue-load-limit entry is 4.15 kN, a separate calculation input rather than a guaranteed fatigue life.
The speed entry is 2.4 × 1,000 rpm. The temperature-range entry is -176 to 500 °F. Use these entries with the applicable enclosure, cage and lubrication conditions. A reference speed is not automatically a limiting speed, and a broad temperature entry does not establish continuous operation at every speed or load across that range. Heat generated at the contacts and removed through the surrounding structure must also be considered. A separate reference-speed entry is 4800 r/min; keep it distinct from the maximum-speed entry.
Enclosure and the Lubricated Contact
The open enclosure of 16036 Ceramic Bearings sets the immediate boundary around the rolling contacts. With an open bearing, the surrounding assembly has to manage lubricant delivery and contaminants. Do not assume that the bearing itself excludes dust or retains an oil supply.
The lubrication entry is Without. This describes the supplied or required condition, not an unlimited dry-running approval. Select lubricant type and quantity for the contact pair, cage, enclosure and duty. Changing a grease or an oil supply can change drag, replenishment and heat removal even when the dimensional fit remains the same.
Assembly Accuracy and Internal Freedom
Plan the assembly force through the part being fitted. Passing a press force through the rolling contacts risks local damage rather than seating the ring cleanly. Square shoulders, clean seats and controlled support around the circumference help retain the intended geometry. Clamping should locate the bearing without forcing a distorted seat into the rings.
Precision, initial clearance and installed preload describe different aspects of the assembly. Interference and temperature differences can alter the running internal condition. Check shaft and housing fits, seat form and shoulder runout together; a close dimensional match cannot establish the accuracy of the complete rotating system.
Mating Surfaces and the Duty Cycle
The mating-interface details include shoulder diameter: 245.8 mm, chamfer dimension: 2 mm, diameter of shaft abutment: 189 mm, diameter of housing abutment: 271 mm, and radius of shaft or housing fillet: 2 mm. A fillet that interferes with a ring corner prevents full seating, while an inadequate abutment can leave the load-carrying face poorly supported. These dimensions concern distinct surfaces and must not be substituted for the main bore, outside diameter or width.
For 16036 Ceramic Bearings, assess starts, steady rotation, load changes and stops as parts of the same duty. The governing load case may not occur at the highest speed. Thermal growth can also shift the load between supports, so verify the locating arrangement, remaining clearance and lubricant supply over the operating cycle rather than at one nominal condition.
Matching the Bearing to the Support Arrangement
Choose 16036 Ceramic Bearings by matching its contact geometry and actual component configuration to the support arrangement. Verify the primary dimensions first, then orientation or axial location, load direction, enclosure and lubrication. Use the explicit ratings and precision or clearance entries where provided. Missing values need confirmation, not substitution from another ceramic product.
The important application question is how radial guidance, axial location and contamination control are shared by the complete assembly. The bearing family describes a useful construction choice. Acceptance for a particular machine still depends on the complete duty calculation and installation, not a general promise attached to its material name.
