3992 Tapered Roller Bearing Cone

3992 is a tapered roller cone subassembly. The configuration identifies Construction: Single Row, For Load Direction: Combined, and series 3900. Its selection starts with the interface it contributes to the mechanism. The separately specified mating members, their seating and the intended contact condition determine how that interface works after assembly. Keep the component designation with its dimensional and condition data when comparing alternatives; a similar nominal size is not enough to establish a replacement.

Component Role and Mating Contact

3992 is the inner member and roller-and-cage portion of a tapered roller arrangement. The rollers contact the cone raceway and a separately selected cup. In this geometry, radial reaction is accompanied by an axial reaction, so the cone must be considered with the matching outer raceway and the shaft locating arrangement. The component designation does not define a finished bearing setting.

The roller contact geometry and the opposing support determine the adjustment needed in the completed arrangement. Preserve any explicit single-row or double-row construction when assessing that relationship. Endplay or preload is established through the complete assembly, not supplied by a cone part number. A bore fit that locates the ring cannot compensate for a mismatched cup or unsuitable axial support. The stated mating references are Bearing Part Number: 3992-3919RB , 3992-3920 , 3992-3925 , 3992-3926 , 3992-3927X. Keep them as reference designations and verify the complete pairing before substitution.

Dimensions That Define the Interfaces

The principal dimensional entries identify System of Measurement: Inch, Bore Dia: 2.625″, and Cone Width: 1.1505″. The cone bore locates the member on the shaft, while the cone width and backing interfaces control its axial position. Preserve a double-cone width when that dimension is stated; it is not a single-cone width or the total width across the completed cup-and-cone arrangement.

Interface limits include Bore Dia Tolerance: +0.005″ to 0 and Cone Width Tolerance: +0.003″ to -0.01. Use each limit for the dimension named. Component limits do not directly specify a shaft or housing machining tolerance. The required fit also depends on support stiffness, loading and temperature. Check the assembled geometry after seating rather than judging compatibility from one nominal dimension. Retain the signs and units of each limit instead of treating it as a symmetric tolerance.

Material Roles and Geometric Condition

The stated component entries are Ring Material: Chrome Steel and Cage Material: Steel. The ring, roller and cage entries retain their separate roles; one does not establish the material of the others. Cage entries can describe construction as well as material, so retain that wording rather than converting a construction term into an alloy. Evaluate the contact pair and the guiding member separately.

Geometric and condition entries identify ABEC Rating: ABEC-1. A grade, hardness or precision notation describes its stated component property, not the accuracy or capacity of the completed mechanism. Surface condition and the mating material affect contact stress and wear. Relate these details to alignment, lubricant film and cleanliness without assigning an unlisted material treatment or operating capability. The clearance notation is Standard (Available in C3/C4/C5). Availability wording is not a supplied alternate configuration or an installed clearance; confirm the ordered and assembled condition separately.

Ratings and the Operating Arrangement

The rating entries associated with this component identify Dynamic Radial Load: 31200 lbf, Static Radial Load: 43000 lbf, and Dynamic Radial Rating(90 Million Revolutions)(C90): 8090 lbf. Preserve the stated direction and rating basis when using these data. Dynamic and static values support different engineering checks. A component-associated rating is not a guarantee for an arrangement with different raceways, support or setting. It also does not establish a missing load direction or an independent capacity for every mating combination.

Operating entries identify Temperature Range: -30° to 110 °C and Seal Type: Open. Lubricant selection, delivery and heat removal depend on the complete duty. Provide a route to the working contacts and account for contamination and retention through the surrounding design. The stated open configuration does not supply an enclosure for the assembled mechanism.

Backing, Edge Clearance and Assembly

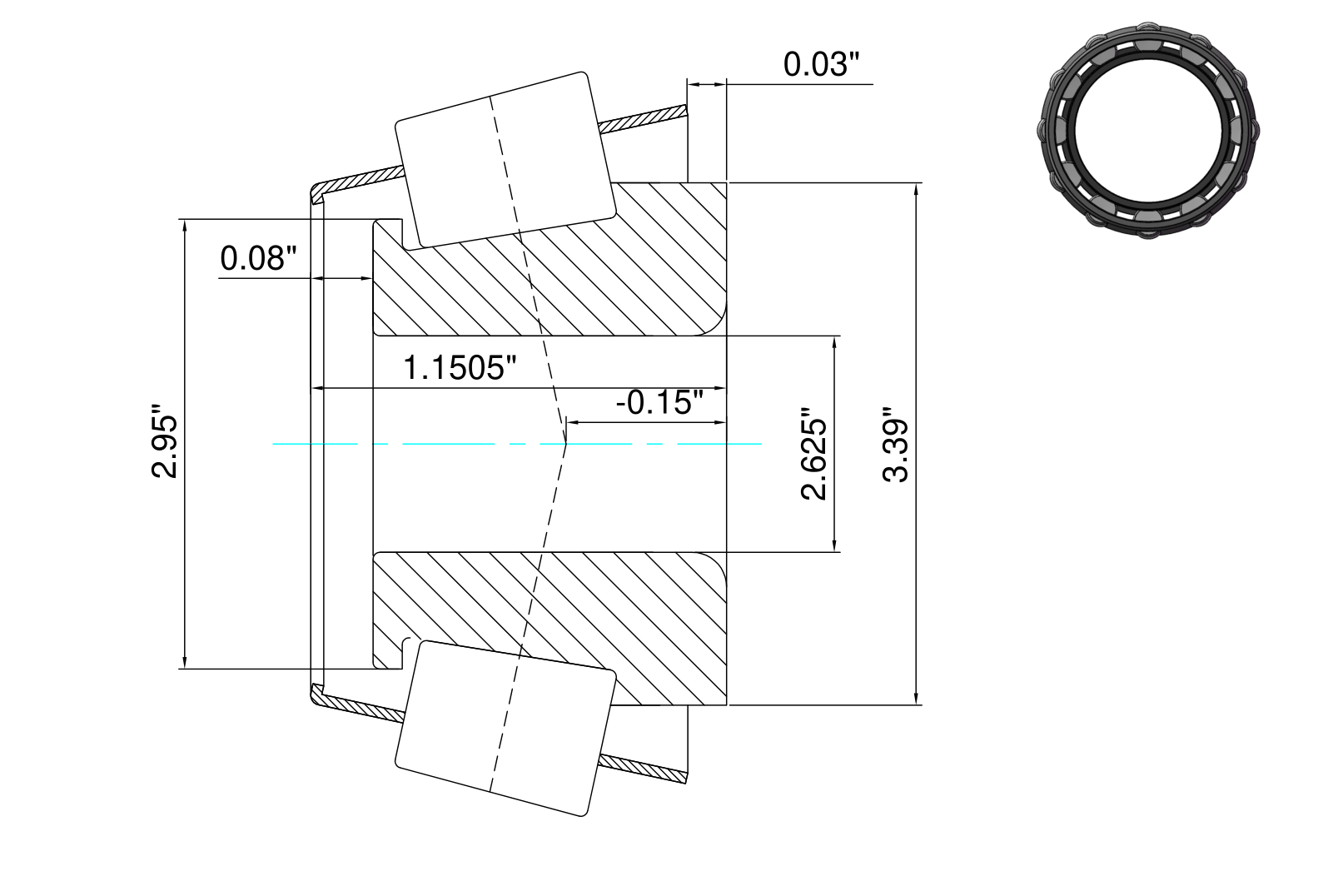

Seat 3992 through the cone ring on the intended shaft support, keeping mounting force away from the roller contacts and cage. Coordinate shoulder support with cage projection and adjacent parts before adjusting the completed arrangement. The front and back faces can have different backing and clearance requirements; those interfaces are not interchangeable merely because both belong to the same cone. The relevant interface entries are Cone Frontface Backing Diameter: 2.95″, Cone Backface Backing Diameter: 3.39″, Cone Backface ToClear Radius: 0.220″, Cage Cone Frontface Clearance: 0.08″, Cage Cone Backface Clearance: 0.03″, and Effective Center Location: -0.15″.

After assembly, check seating, alignment, the intended freedom of motion and lubricant access before applying normal duty. Preserve the individual contact and backing relationships when evaluating runout, heating or wear. Do not route mounting force through rolling contacts simply because it is convenient, and do not infer an installation torque, fit class or preload force that has not been specified.

Selecting the Component as Part of a System

The selection of 3992 should resolve the verified cup pairing, shaft support and completed axial setting. This is the component’s useful engineering context, not a machine-specific approval. Compare the exact designation and interface condition before considering an alternative. Material roles, tolerances and any operating entries must remain connected to the same ordered component rather than borrowed from another member of the arrangement.

For procurement and assembly planning, retain the part specification with the confirmed mating designations and the dimensional requirements of the mechanism. Check support, lubricant access and the intended operating duty as a connected system. The value of this component lies in providing its particular interface correctly; similar nomenclature, a shared series or a matching nominal size cannot establish whole-bearing performance or exact interchangeability.
