Design Features of the 693ZZ Bearing
The 693ZZ bearing is a high-precision miniature deep groove ball bearing designed for applications where space is extremely limited. With a 3 mm bore diameter, 8 mm outer diameter, and 4 mm width, it provides reliable performance in compact assemblies.

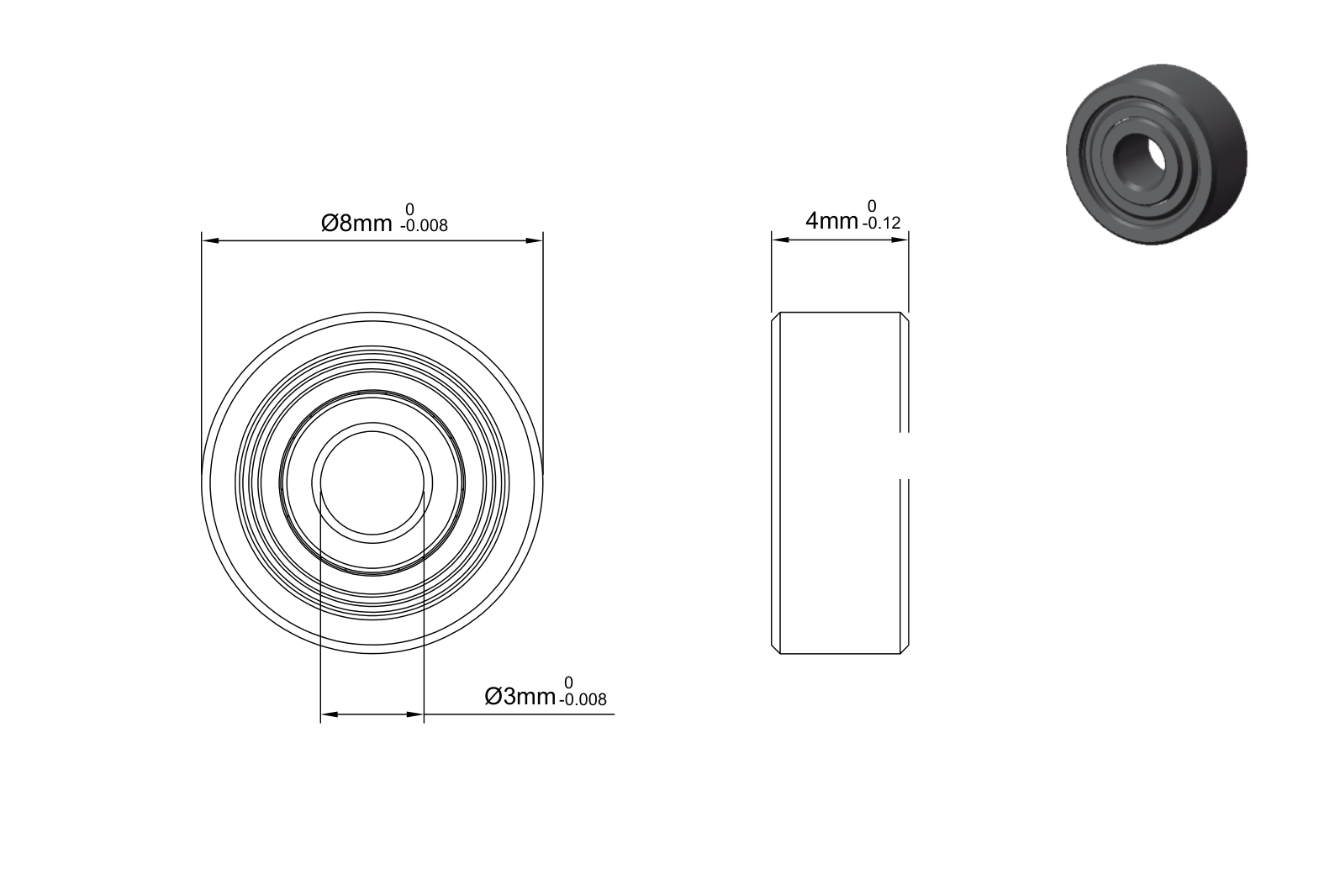

Key specifications:
-
Bore Diameter (d): 3 mm
-
Outer Diameter (D): 8 mm
-
Width (B): 4 mm
-
Shield Type: Double Metal Shields (ZZ) – protects against dust and light contaminants
-
Ball & Race Material: High-quality Chrome Steel (SUJ2 / AISI 52100 equivalent)
-
Cage Material: Steel
-
Design: Deep groove raceway for high-speed and low-friction operation
The double metal shields help retain lubrication while reducing particle ingress, extending bearing life. Thanks to its low noise, smooth rotation, and precision manufacturing, the 693ZZ meets ABEC-1 or higher precision standards, making it ideal for both industrial and high-performance applications.
Applications of the 693ZZ Bearing
Due to its compact size and reliable performance, the 693ZZ is widely used in industries where miniaturization and accuracy are essential. Common applications include:
-
Medical devices: cryogenic coolers, pulmonary assist devices, surgical instruments
-
Electronics & optics: gyroscopes, precision instrumentation, surveillance systems
-
Consumer products: clocks, hobby equipment, micro-motors, drones
-
Aerospace & defense: fuel controls, navigation systems, compact actuators
Its versatility makes it a popular choice whenever engineers need a durable, high-speed miniature bearing that operates smoothly under tight space constraints.
Maintenance & Troubleshooting Tips for 693ZZ Bearings
To maximize service life and maintain optimal performance:
-
Inspection: Regularly check for contamination, unusual noise, or signs of wear.
-
Cleaning: Use a non-corrosive solvent for cleaning if necessary, ensuring the bearing is completely dry before re-lubrication.
-
Lubrication: Apply light machine oil or grease suitable for miniature bearings to reduce friction and wear.
-
Replacement: If excessive play, pitting, or noise is detected, replace the bearing promptly.
-
Application Check: Ensure the bearing operates within its rated load, speed, and temperature limits to prevent premature failure.
By following these practices, you can extend the life of the 693ZZ and maintain consistent reliability in demanding applications.
