71968 ACMB is a single-row angular-contact ball bearing. The configuration identifies construction Single Row, enclosure Open, and load direction Angular Contact. Its useful selection features are the contact arrangement, mating dimensions and actual component configuration. Read these together: a change in enclosure, clearance or material combination can matter even when two bearings share the same bore. The required reaction and the installed running condition should guide the comparison.
Contact Arrangement and Structural Reaction
In 71968 ACMB, angular-contact geometry provides an inclined reaction path through one row of balls. Radial force and axial force therefore interact at the contacts rather than forming unrelated load cases. The direction in which thrust is reacted must agree with the bearing arrangement. A single-row form normally needs the surrounding arrangement to provide the opposite reaction; a double-row form contains a different internal contact arrangement.
The contact-related entries include Distance Pressure Point (a): 126 mm. Contact geometry also connects axial setting to stiffness and heat. Preload or a particular matching condition should be specified explicitly, not assigned from the angular-contact name. Evaluate the orientation and shaft support as one arrangement, with the working load direction established before the installation is selected.
The angular configuration lists contact angle 25°. Preserve these as separate, coordinated requirements. A matching designation does not set a preload force, and the number in a matched set is not a rolling-element row count. Available or No entries are not installed settings. Verify the orientation, companion reaction and axial setting required by the exact arrangement rather than inferring them from a model suffix.
Precision and Installed Internal Condition
The internal-condition entries are precision notation P6 (ABEC-3). Precision and clearance answer different questions: geometric control is not the amount of internal freedom between rolling elements and raceways. Preserve the stated notation without converting between ABEC, ISO or manufacturer-specific classes. An apparently similar designation should not be assumed equivalent without the applicable definition.
Installed running clearance can differ from initial clearance. Interference at a seat, a temperature difference between the rings and the load applied to the assembly can change the contact condition. Seat roundness and shoulder runout also influence alignment. Check these relationships together when judging starting torque, stiffness or heating. Neither a precision label nor a clearance code independently guarantees the accuracy of the completed mechanism.
Package Dimensions and Fit Relationships

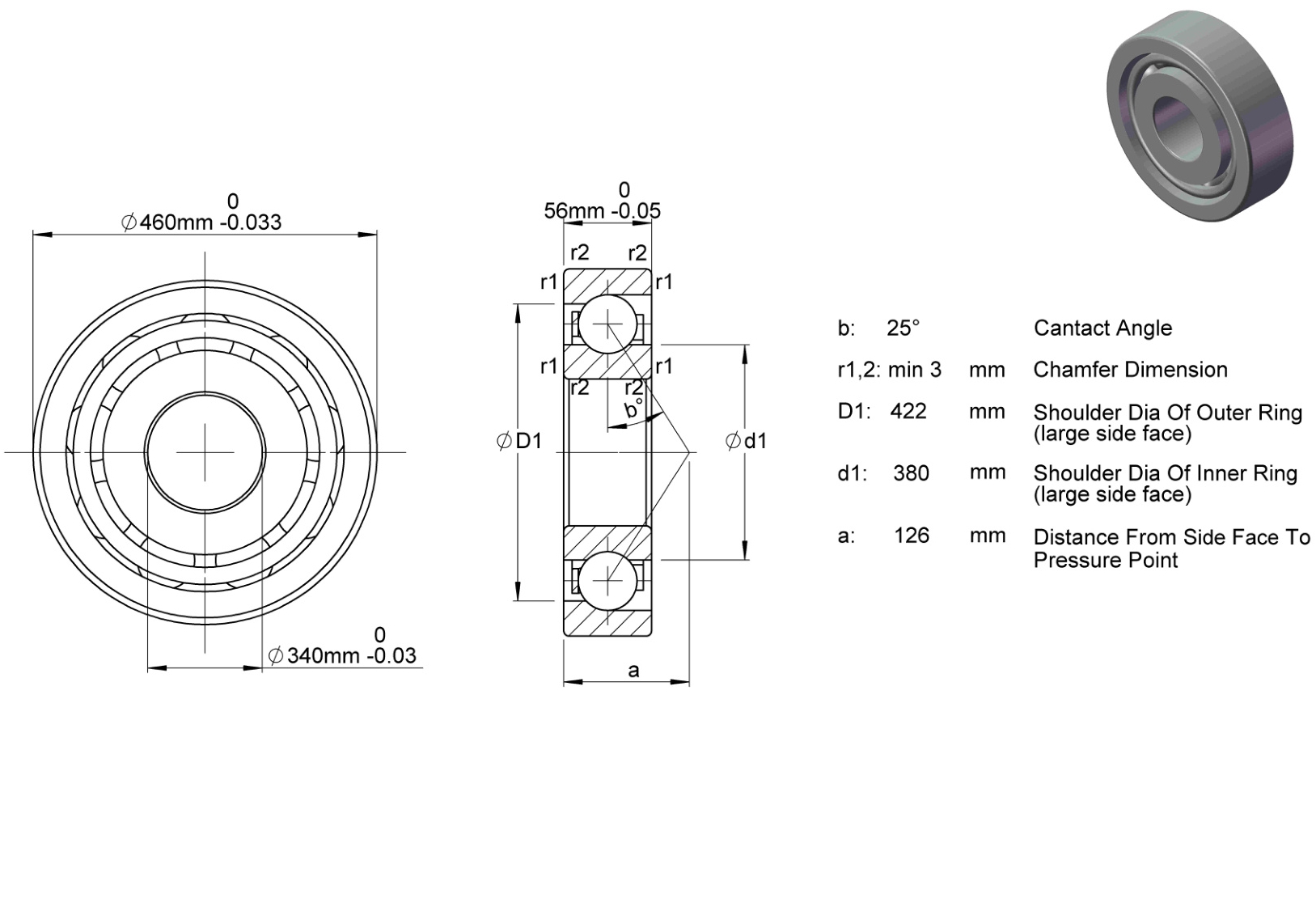

The main package dimensions are bore 340 mm, outside diameter 460 mm, and width 56 mm. Treat the shaft, housing and available axial space as a coordinated set of interfaces. Shoulder positions and clearances need to accommodate the actual bearing form without interfering with moving parts. Matching a bore alone does not establish replacement compatibility or the required installed fit.
Dimensional limits include bore tolerance -0.03mm to 0, outside diameter tolerance -0.033mm to 0, and width/height tolerance -0.05mm to 0. These limits describe the bearing interfaces, not a ready-made shaft or housing machining instruction. Account for which ring rotates relative to the load, the stiffness of its seat and temperature differences in service. The completed fit must preserve alignment and the intended clearance rather than merely accept assembly.
Material Combination and Environmental Selection
The component specifications identify ring material Chrome Steel, rolling-element material Chrome Steel, and cage material Brass. Each material belongs to its own role. A ring specification does not identify the balls or cage, and a ceramic-ball entry does not make the ring ceramic. Keep the complete material pair visible when comparing contact behavior and thermal response.
Environmental selection requires the stated alloy and actual exposure conditions, not a broad bearing-family name alone. Heat treatment, surface condition, lubricant and the mating material influence the contact system. Assess the operating medium and contamination alongside the mechanical duty. Avoid extending an alloy designation into a chemical-service qualification or a universal corrosion guarantee; the ordered component combination and application conditions must support that assessment. No corrosion, electrical, chemical, food, medical, marine, or other application qualification is implied without explicit supporting data.
Interpreting Load and Operating Data
Published load data include dynamic radial rating 76050 lbf and static radial rating 131625 lbf. Dynamic and static ratings serve different checks. Rotating fatigue assessment uses the dynamic basis, whereas the static basis addresses contact deformation under stationary, peak or slowly moving loading. Neither is a permitted operating load without consideration of load combination, duty, shock and the required reliability.
Other operating entries include maximum-speed entry 1.5 under the stated ×1,000 rpm convention and temperature entry -30° to 110 °C. Keep reference conditions separate from maximum limits. Lubrication, enclosure drag, load and heat removal interact in service, so one listed operating value cannot establish the performance of the whole machine. Use the actual duty and installed condition when checking the selected bearing.
Enclosure and Lubricant Condition
71968 ACMB is open. Protection and lubricant retention must therefore be provided by the surrounding design. Consider how particles or process fluids could reach the rolling contacts and how lubricant is supplied during motion. Open construction can simplify access to the contact space, but it is not evidence of dry-running capability or permission to operate without contamination control.
The lubrication condition is Lubricated. Preserve that condition when specifying or replacing the bearing. Film formation and heat generation depend on speed, load, temperature and the contact materials. The lubricant must suit the enclosure and replenishment arrangement. A condition label does not set viscosity, fill quantity or a service interval; those choices must follow the complete duty and the lubricant system.
Seat Support and Assembly Control
Set the angular-contact orientation to suit the working thrust direction and the full bearing arrangement. Keep ring seats and shoulders accurate, clean and square. A press-fit force should pass through the ring being installed, not through the balls. Any matching or preload requirement belongs to the specified arrangement and must be checked before the axial setting is established.
Evaluate the companion reaction, support stiffness and the installed axial condition together. Shoulder runout or ring distortion can change the contact pattern and heat generation. Check free rotation and the intended setting after assembly rather than assuming that nominal dimension agreement has preserved the original running condition. Control alignment at both seats so the arrangement works as designed.
Configuration-Level Selection
71968 ACMB may be considered in rotary arrangements with combined radial and one-direction axial reaction. These are general mechanical contexts, not a guarantee for a named machine or environment. Define the load direction and duty first, then compare the actual dimensions, materials, closure and internal condition. The family designation should not replace an assessment of the operating medium or the requirements placed on the contact system.
A useful comparison preserves the whole configuration. Confirm nominal geometry and tolerance, the material of each working component, the ordered enclosure and lubricant condition, and the applicable operating data. Relate those details to shaft and housing support and the required running condition. This makes differences between nearby models meaningful without assuming an unstated speed, life, precision level or environmental qualification.
