729C Miniature Angular Contact Ball Bearing

729C is a miniature angular-contact ball bearing. Its 15° contact angle makes bearing orientation and the chosen matching and preload configuration important to the surrounding rotary assembly. The bore, outside diameter and width must work with the available installation space, while the load data and operating configuration must be assessed against the same duty conditions.

Fit Starts with the Complete Envelope

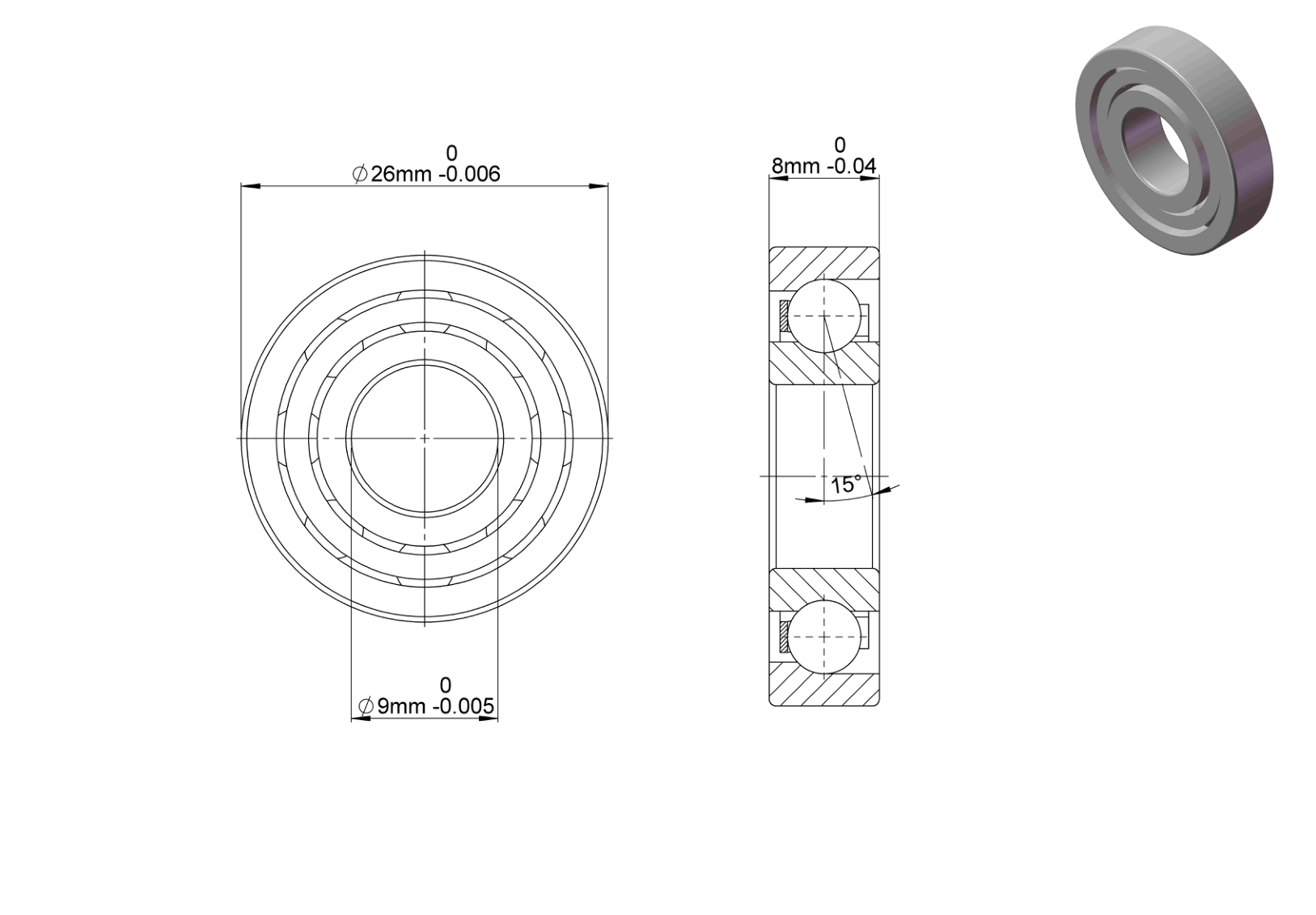

The metric dimensions of 729C include a bore of 9 mm, outside diameter of 26 mm, width of 8 mm. These dimensions locate the shaft interface, housing interface and axial envelope. All must be checked together: matching the bore alone leaves the housing diameter and axial space unresolved. The surrounding shoulders and adjacent parts must also allow the bearing to seat without interference or ring distortion.

The nominal envelope is only the first part of interface selection. Fit tolerances, shoulder geometry and alignment must be established for the actual shaft and housing. A close nominal match cannot compensate for a distorted housing seat or an unsuitable axial locating arrangement. Review those interfaces with the selected bearing configuration before committing to assembly details.

Materials in the Rolling Contacts

The material choices for 729C include ball materials of Steel or Ceramic and cage materials of Nylon or Phenolic. These are alternative configurations, not a statement that every listed material is present in one bearing. Confirm the rolling-element and cage choices together with the precision, enclosure and preload selection. A material-dependent assessment must refer to that confirmed combination.

Material choice matters through the interaction of rolling contact, thermal expansion and lubrication. Different cage and rolling-element combinations can change mass and heat response in general, without establishing a guaranteed performance result for this assembly. Evaluate the selected combination under the intended load, speed and temperature, rather than treating the material designation as a substitute for an operating assessment.

Load Path Through the Assembly

The 15° contact angle of 729C creates an inclined load path through the rolling contacts. Radial force and axial force in the active direction interact through that geometry. Orientation is therefore a functional choice: reversing the bearing changes the direction in which that axial reaction can be developed. Contact angle should be considered together with the arrangement, rather than treated as an isolated precision label.

When axial force can act in both directions, the system needs an appropriate bearing arrangement. Matching and preload influence contact loading, rigidity and heat generation, but their availability does not establish a particular installed setting. The matching entry is Universal matching. Preload is listed as available. Confirm these choices for the ordered configuration before assessing the assembled response.

Precision Is Distinct from Clearance

The precision alternatives for 729C are P5(ABEC-5) or P4 (ABEC-7). Availability of several classes does not identify the class of a particular ordered version. Select and confirm precision with the contact geometry, material, matching and preload choices. Precision describes accuracy-related requirements; it is not equivalent to clearance or preload and should not be used to infer either.

Accuracy in the assembled mechanism also depends on the journals, housing seats and locating faces. Roundness, concentricity, shoulder runout and cleanliness can affect how well the bearing’s own precision is used. Controlled fitting helps avoid local deformation or unintended preload. Check the final alignment and running condition together with the bearing specification instead of relying on the precision class alone.

Load, Speed and Thermal Relationships

The load data for 729C include a dynamic radial rating of 1101.52 lbf and a static radial rating of 472.08 lbf. Dynamic and static ratings serve different checks. The dynamic value supports life-related evaluation under rotating load; the static value addresses contact deformation under stationary or high loading. Neither is an application allowable load by itself. Applied force, direction, shock, duty cycle and the intended reliability must be considered before deciding whether the bearing meets the design requirement.

Speed capability must be confirmed for the selected configuration. Load, lubrication, enclosure, fit and heat removal interact during operation. A speed limit should not be read as a guaranteed machine speed under every load or thermal condition. Expansion of the shaft, housing and bearing can change the internal setting, so the dimensional and thermal assessments need to address the same operating case.

Lubricant Retention and Protection

729C has enclosure choices listed as Sealed or Open. The ordered version must be identified before deciding how lubrication and contamination control will be provided. An open bearing relies on the surrounding system for protection and lubricant retention. A sealed version changes those interfaces and can also alter friction and heat, so the two choices should not be combined into one assumed configuration.

The lubrication condition is lubricated. It does not specify one lubricant formulation, fill quantity or replenishment interval for all available versions. Coordinate the chosen lubricant with the cage, enclosure, contact loading and heat removal. Those relationships are especially important when the configuration includes precision or preload choices, because changes in friction and temperature can affect the running condition.

Installing the Selected Construction

During installation of 729C, direct force through the ring or washer being fitted instead of through the ball contacts. Prepare clean mating surfaces and remove burrs that would prevent square seating. Select interference and assembly method with the actual support material, geometry and thermal conditions in mind. Excessive fitting force or deformation can alter the running condition before the mechanism is put into service.

For this construction, check bearing orientation, axial location and the selected matching or preload arrangement. Verify free rotation after assembly and investigate binding rather than assuming it will disappear during running. At miniature scale, a small particle or seating error can be significant relative to the contact geometry. Careful handling, clean support surfaces and controlled location help preserve the intended load path without prescribing an unsupported fit class or clamping value.

What Matters in Replacement Selection

At family level, this construction can be considered in compact spindles and precision rotary assemblies. These examples do not establish compatibility with a particular machine. Selection still requires the actual loading, speed, temperature, available support and lubrication arrangement to agree with the chosen bearing configuration. Compare meaningful differences between alternatives, not just the model designation or bore size.

The selection of 729C should bring contact angle, orientation and the confirmed precision, material, enclosure and preload choices into the same assessment as load, lubrication and operating conditions. A nominal size match is only one part of that decision. Confirm the configuration and mating interfaces together so that an alternative does not change the mechanical arrangement on which the design depends.
