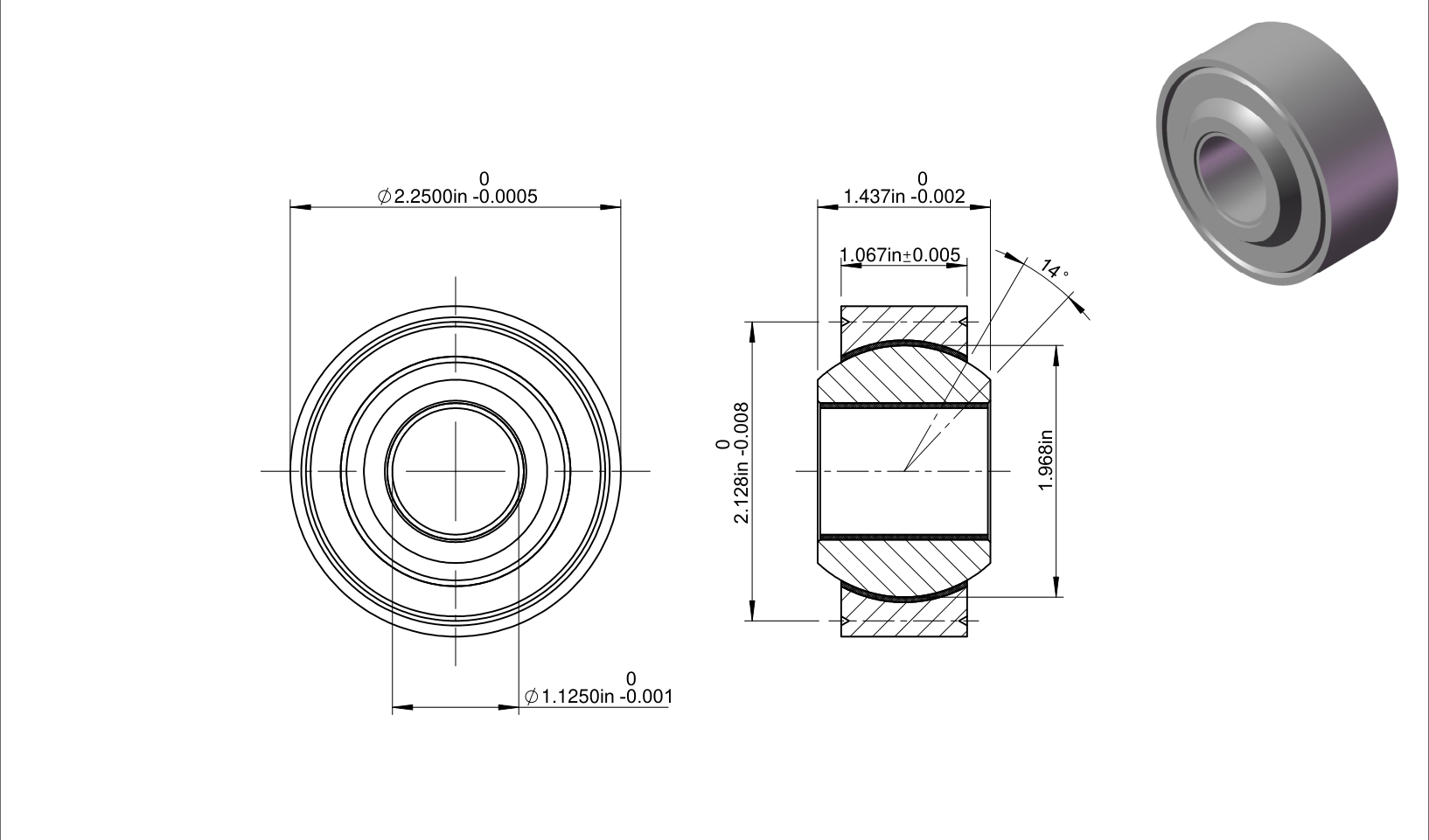

ADW18V(L)
| Part Number | ADW18V(L) |
| System of Measurement | Inch |
| Bore Dia | 1.125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2.25″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.437″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 1.067″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 1.338″ |
| Ball Dia | 1.968″ |
| Pitch Dia | 2.128″ |
| Mis Alignment | 14° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 57000 lbs |
| Static Radial Load | 142570 lbs |
| Weight | 1 lbs |
$314.02
