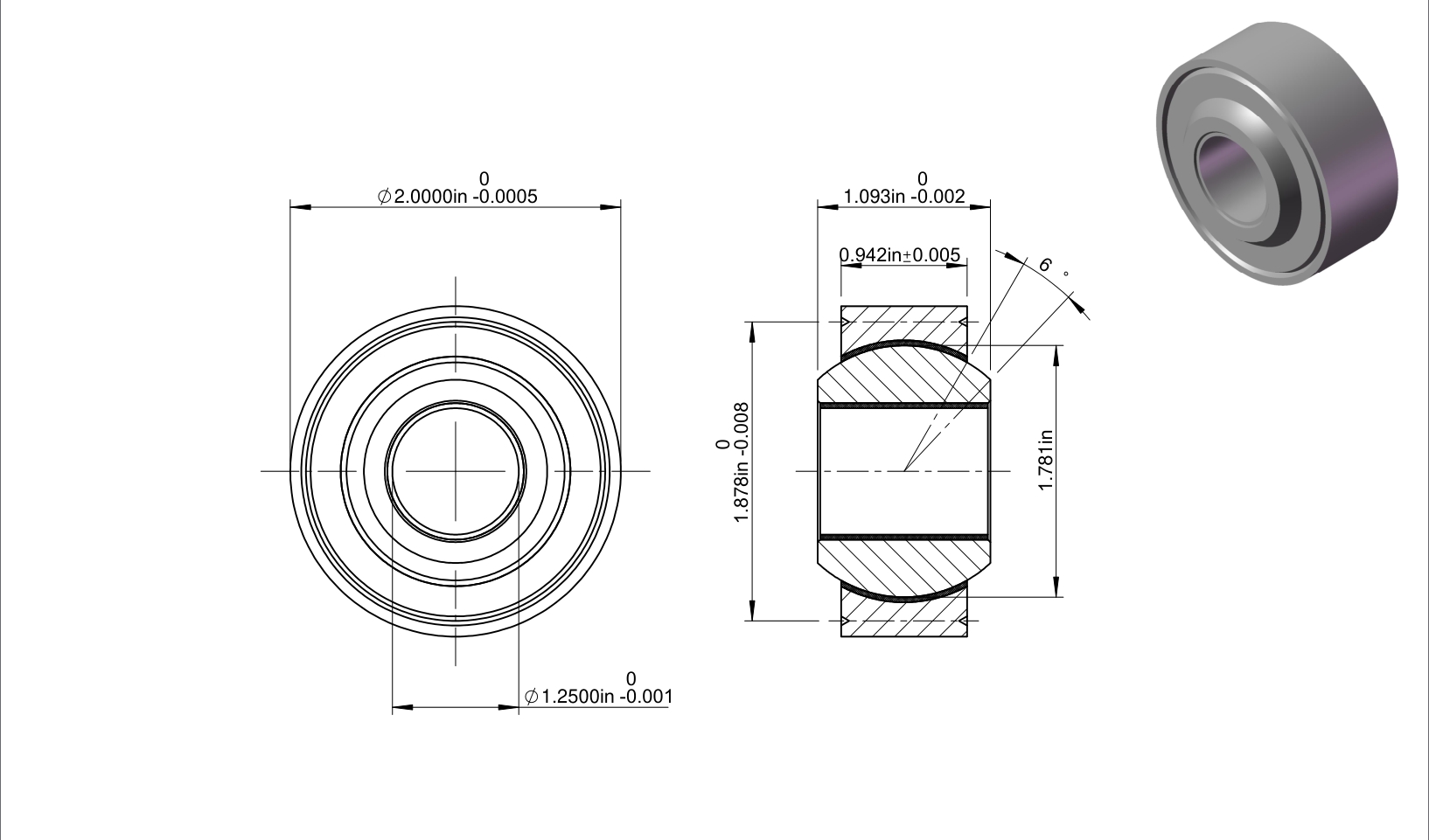

ADW20-5V(L)
| Part Number | ADW20-5V(L) |
| System of Measurement | Inch |
| Bore Dia | 1.25″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 2″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1.093″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.942″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 1.406″ |
| Ball Dia | 1.781″ |
| Pitch Dia | 1.878″ |
| Mis Alignment | 6° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 44940 lbs |
| Static Radial Load | 112360 lbs |
| Weight | 0.564 lbs |
$354.12
