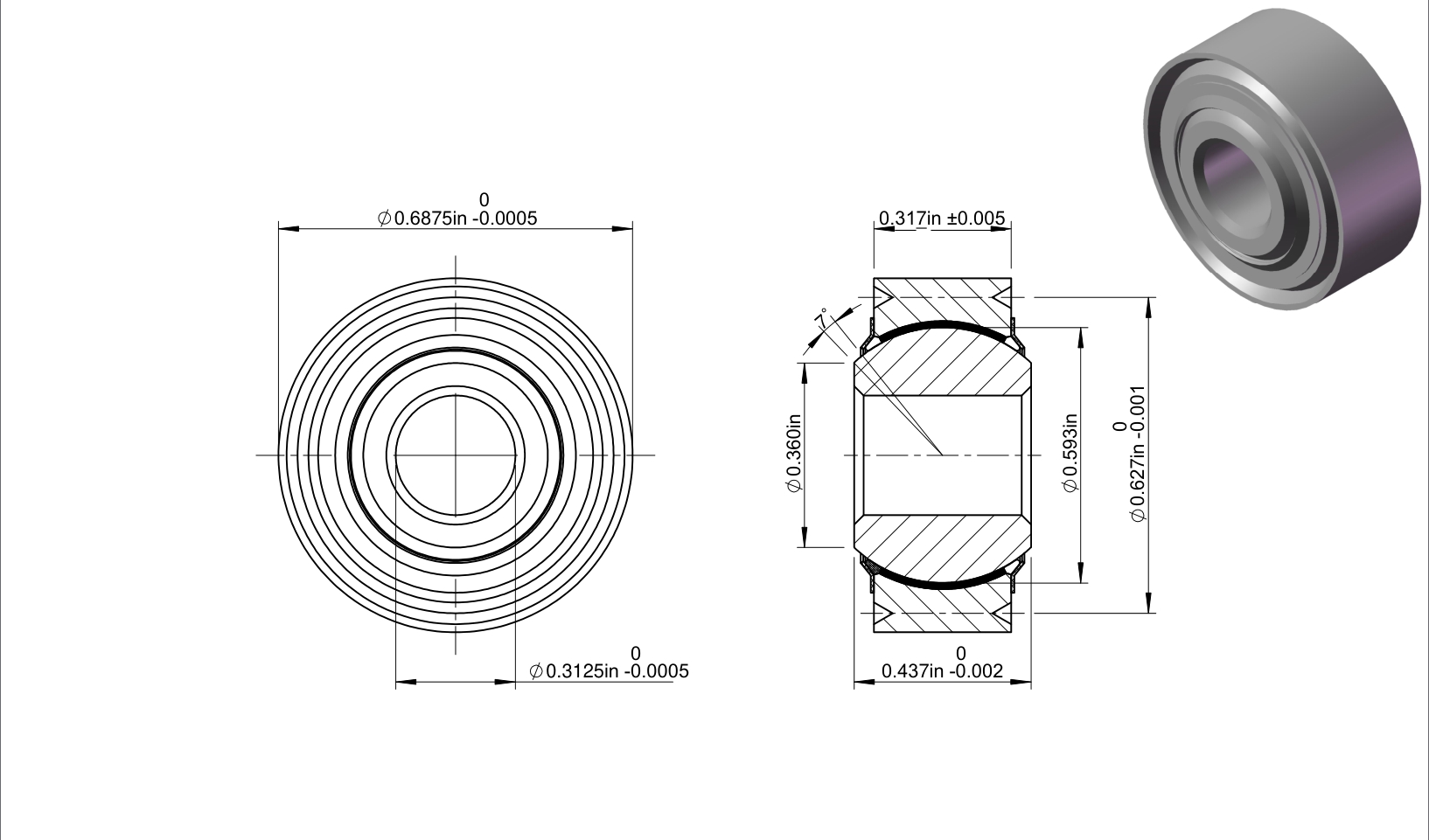

ADW5VN(L)
| Part Number | ADW5VN(L) |
| System of Measurement | Inch |
| Bore Dia | 0.3125″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.6875″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.437″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.317″ |
| Race Width Tolerance | -0.005″ to 0.005″ |
| Shoulder Dia | 0.36″ |
| Ball Dia | 0.593″ |
| Race Chamfered | 0.025″ |
| Mis Alignment | 7° |
| Staking groove Data(P) | 0.627″ |
| Staking groove Data(R) | 0.03″ |
| Staking groove Data(S) | 0.005-0.015″ |
| Staking groove Data(X) | 30°” |
| Dynamic Radial Load | 6050 lbs |
| Static Radial Load | 9400 lbs |
| Weight | 0.035 lbs |
$91.76
