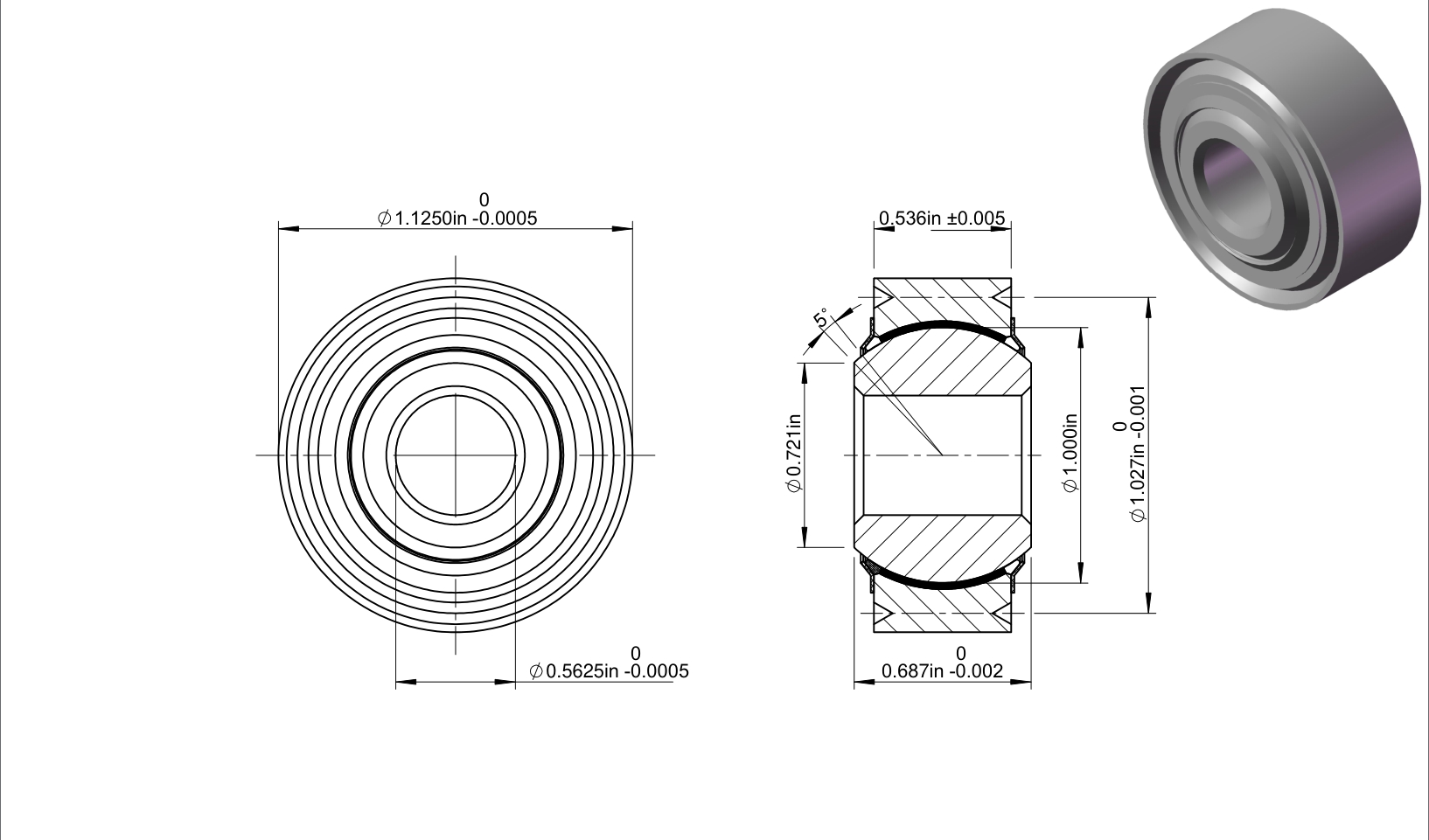

ADW9VN(L)
| Part Number | ADW9VN(L) |
| System of Measurement | Inch |
| Bore Dia | 0.5625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.687″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.536″ |
| Race Width Tolerance | -0.005″ to 0.005″ |
| Shoulder Dia | 0.721″ |
| Ball Dia | 1″ |
| Race Chamfered | 0.03″ |
| Mis Alignment | 5° |
| Staking groove Data(P) | 1.027″ |
| Staking groove Data(R) | 0.04″ |
| Staking groove Data(S) | 0.010-0.020″ |
| Staking groove Data(X) | 30°” |
| Dynamic Radial Load | 18100 lbs |
| Static Radial Load | 26600 lbs |
| Weight | 0.135 lbs |
$197.79
