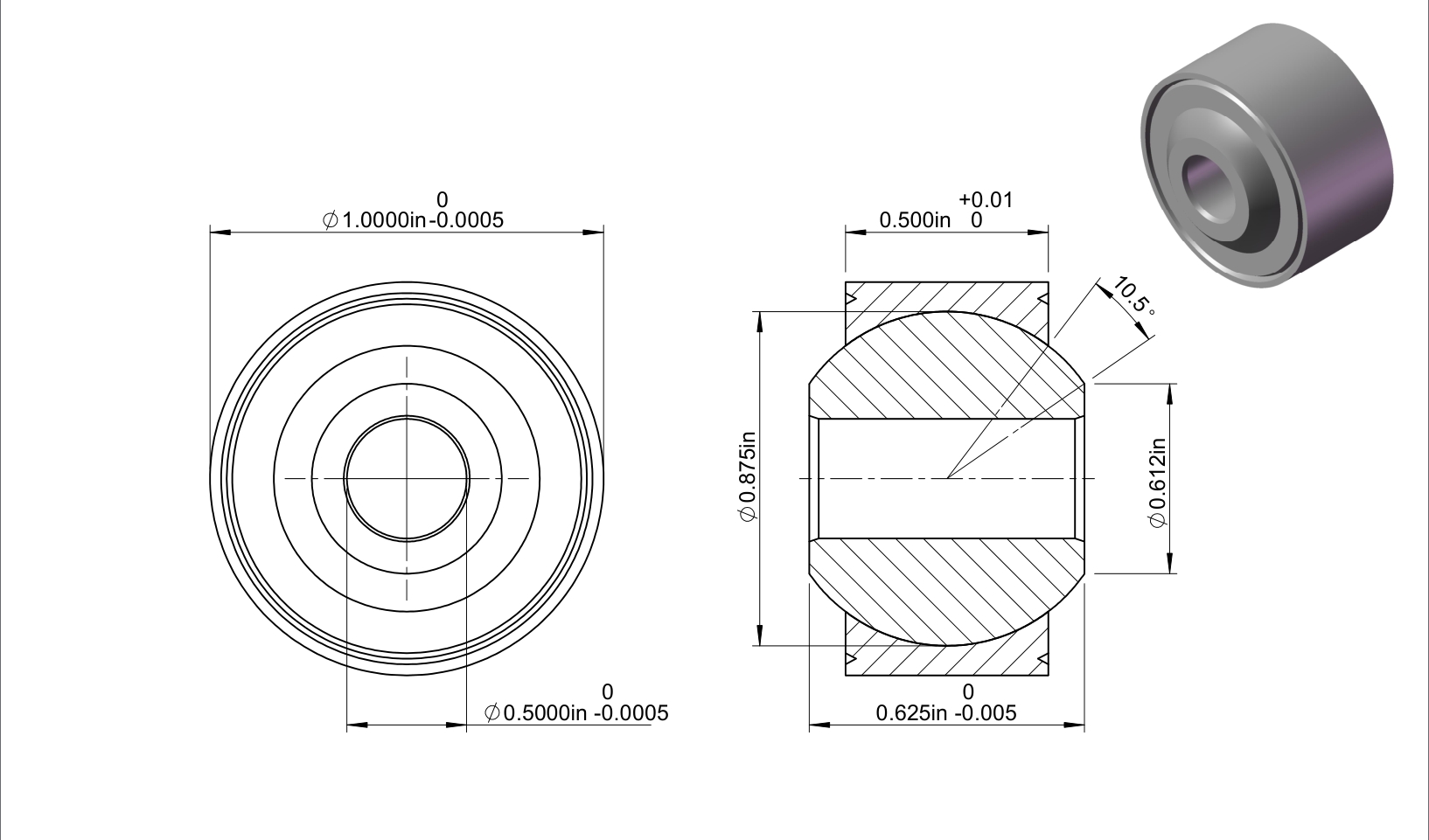

AW8V
| Part Number | AW8V |
| System of Measurement | Inch |
| Bore Dia | 0.5″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.625″ |
| Ball Width Tolerance | -0.005″ to 0″ |
| Race Width | 0.5″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Shoulder Dia | 0.612″ |
| Ball Dia | 0.875″ |
| Race Chamfered | 0.035″ |
| Mis Alignment | 10.5° |
| Staking groove Data(P) | 0.04″ |
| Staking groove Data(R) | 0.02″ |
| Staking groove Data(S) | 0.03″ |
| Staking groove Data(X) | 0.055″ |
| Dynamic Radial Load | 20560 lbs |
| Static Radial Load | 28220 lbs |
| Weight | 0.097 lbs |
$181.48
