BS2-2311-2RS/VT143 is a double-row spherical roller bearing. Its configuration identifies bearing type Spherical, construction Double Row, load direction Combined, and enclosure Double Seal. The contact arrangement, ring interfaces and internal condition must be considered together when selecting the bearing. Nominal size is only one part of that decision. Relate the required reaction to the available installation space, the working component materials and the lubricant arrangement before treating another model as an alternative.
Roller Geometry and the Working Reaction
The spherical roller arrangement of BS2-2311-2RS/VT143 carries shaft reaction through the rollers and a curved outer raceway. Its self-aligning family geometry permits the inner assembly to change angular position relative to the outer ring. That movement helps accommodate angular displacement, but an allowable angle is not established by the family name. The exact row configuration and load combination remain part of selection.
Alignment freedom does not remove the need for accurate ring seating. Fits and ring temperature differences can alter running clearance, while structural deflection changes the way the rollers share reaction. Evaluate the bearing and its surrounding support as one mechanical system. In particular, do not use self-alignment to justify a loose shaft seat or assign a precision class that has not been specified.
Mating Dimensions and Package Relationships

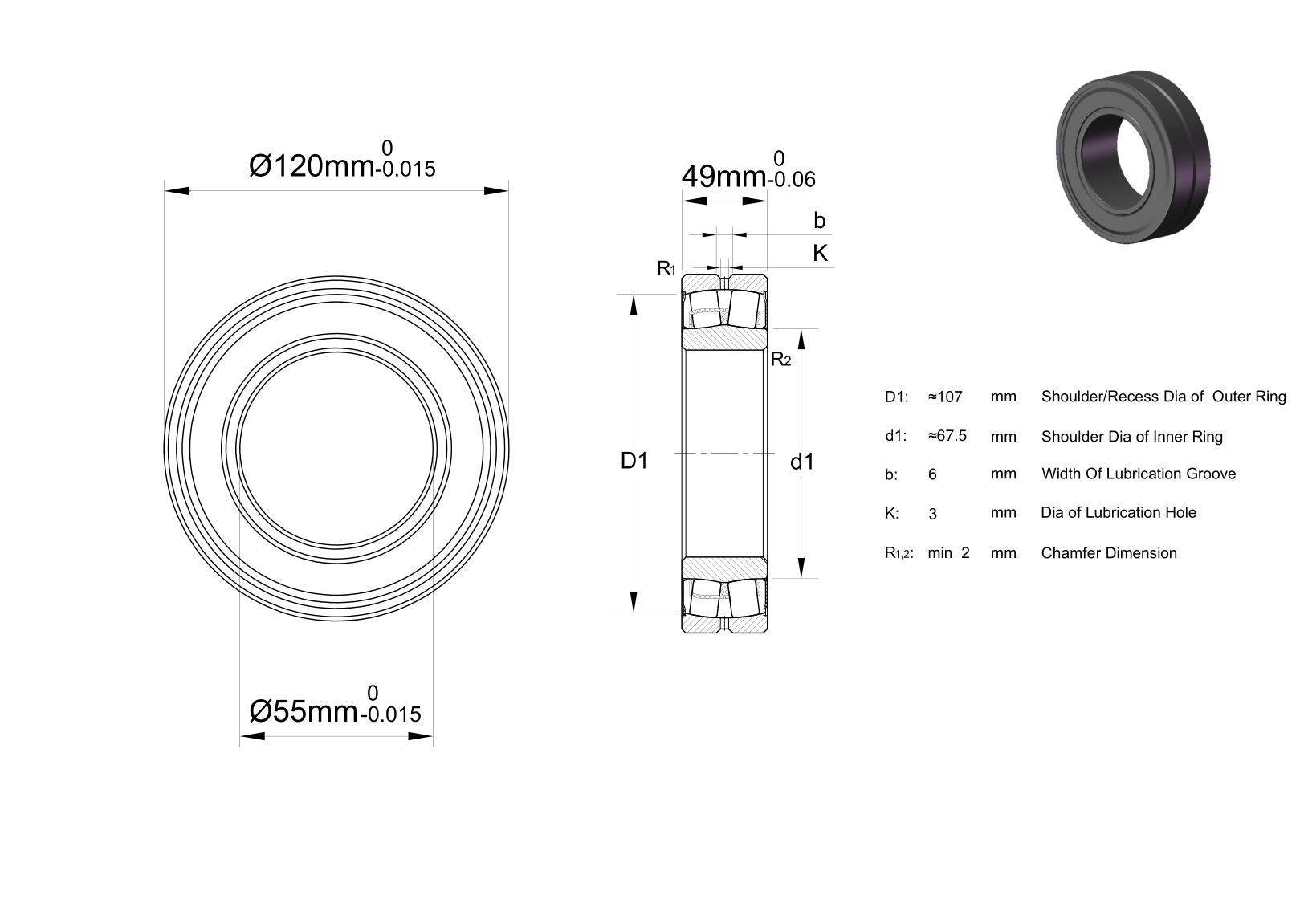

The main dimensional interfaces identify bore 55 mm, outside diameter 120 mm, and width 49 mm. The bore type is Cylindrical. The measurement system is Metric. Coordinate shaft location, housing seating and available axial space using those separate roles. A raceway diameter is not automatically a mounting bore, and a washer or cup width is not necessarily the total package width. Nominal size agreement alone does not prove that an alternative will fit and function correctly.
The stated dimensional limits include bore tolerance -0.015mm to 0, outside diameter tolerance -0.015mm to 0, and width/height tolerance -0.06mm to 0. These are interface limits, not a ready-made machining instruction for a shaft or housing. Consider which member rotates relative to the load, the stiffness of its seat and thermal changes during operation. The installed fit must preserve ring shape and the intended contact condition as well as permit assembly.
Geometric Control and Installed Contact Condition
The internal-condition entries identify radial clearance CN and Radial run-out: Standard. Precision, clearance and preload describe different aspects of a rolling assembly. Preserve the notation as stated without converting between standards or treating a clearance code as an accuracy class. The installed behavior depends on the contact geometry as well as the specified component limits.
Fit interference and temperature differences can change the internal freedom available after installation. Seat roundness, shoulder runout and structural deflection also influence contact sharing. Review these relationships when judging stiffness, starting friction or heating. A precision or clearance entry cannot independently guarantee the accuracy of the machine or identify a preload that has not been stated.
Component Materials and Contact Pairing
The component material entries specify rings as Chrome Steel, rolling elements as Chrome Steel, and cage as Steel. Each entry belongs to the component named, not to an assumed homogeneous bearing. Keep roller or needle material separate from the rings, cage and any springs. Their combination determines the contact pair and the surrounding mechanical interfaces; a retainer material alone says nothing about the raceway alloy.
Material selection must be related to the actual exposure and operating duty. Surface condition, heat treatment and the mating material affect rolling contact, while lubricant compatibility matters throughout the contact system. Assess contaminants and temperature with the stated component combination. An alloy or material label does not by itself establish chemical-service qualification, corrosion immunity or a guaranteed service life for the installed mechanism.
Ratings and Their Operating Basis
Applicable operating entries include dynamic radial rating 62947 lbf and static radial rating 62947 lbf. Dynamic and static ratings serve different checks: fatigue assessment and contact deformation are not interchangeable. Neither figure alone is a permitted working load. Account for load combination, shock and the required reliability, preserving any speed, revolution or row-specific basis attached to a rating.
The operating limits list Max Speed (X1000 rpm): 2.8 and Temperature Range: -30° to 200 °C. Keep every qualifier and unit attached to its own value. A limiting speed, a reference speed and a lubricant-specific speed describe different conditions; none establishes a universal running speed. Check heat release, lubricant delivery and the surrounding support against the actual duty before setting an operating point.
Support Interfaces and Assembly Assessment
Use accurate shaft and housing seats with uniform shoulder support and controlled axial location. Fits must suit which member rotates relative to the working load while preserving ring shape and alignment. Apply installation force through the fitted member, not through the rollers. Clean mating surfaces and sound support are part of the contact assessment, not substitutes for the specified tolerances.
Check the installed clearance or axial setting, free motion and lubricant arrangement with the actual surrounding structure. Thermal differences and support deflection can alter the contact condition after assembly. For tapered arrangements, preserve the intended cup-and-cone relationship; for cylindrical or needle forms, verify the stated axial-location provisions. Do not infer numerical setting or replacement compatibility from nominal size alone.
Contact Protection and Lubricant Supply
The enclosure entry is Double Seal. The surrounding housing and actual barriers determine how the working contact space is exposed. Check access, lubricant retention and frictional effects without adding an unstated seal or shield. A model suffix should not replace confirmation of the ordered configuration. Lubricant-access entries identify Width Of Lubrication Groove: 6 mm and Diameter Of Lubrication Hole: 3 mm. These entries retain their individual roles and do not specify a replenishment interval.
Lubrication is specified as Required; select the lubricant and delivery arrangement for the application rather than assuming a factory grease fill. Film formation and heating depend on the contact materials, speed, load and temperature. Match viscosity and delivery to the complete duty, including startup and replenishment conditions. A general lubricant condition does not set a fill quantity, a service interval or a permissible operating temperature by itself.
Selection of the Complete Configuration
BS2-2311-2RS/VT143 may be considered in radial supports where angular displacement is part of the design assessment. This is general engineering context, not suitability approval for a named machine. Establish the load direction and duty first, then compare the contact arrangement, mating dimensions and actual internal condition. The surrounding design must support the intended reaction without an incompatible fit or an unstated operating capability.
A useful specification keeps the exact model and working component combination visible. Compare enclosure and lubricant requirements, material roles, dimensional limits and ratings on their stated bases. Relate those facts to seat support, thermal change and the completed running condition. A shared size or series designation alone does not establish interchangeability, guaranteed life or the performance of the installed mechanism.
