CE71909SIPP Full Ceramic Silicon Nitride Angular Contact Ball Bearing

CE71909SIPP is a full-ceramic angular-contact ball bearing. Contact orientation and axial reaction define the main selection questions for this construction. Its dimensional envelope is bore 45 mm, outside diameter 68 mm, and width 12 mm. The enclosure is sealed. Consider these features as parts of the installed contact system, together with component materials and the actual duty, rather than treating the ceramic designation as a performance rating.

Orienting the Angular Contact

The inclined ball-contact line couples radial and axial reactions. A single angular-contact bearing has a preferred thrust direction, so its orientation belongs in the arrangement drawing rather than being decided during assembly. Contact angle describes geometry, not precision or preload. The construction entry for CE71909SIPP is Single Row. Its stated load direction is Angular Contact. The specified contact angle is 25°. The rolling-element quantity is 27.

For reversing thrust or a rigid spindle arrangement, assess the companion bearings and their orientation as a system. Preload, support spacing and thermal growth affect how force is shared. A nominal size match alone cannot establish the behavior of a paired arrangement or justify an assumed preload for this bearing.

Choosing the Component Combination

The rings material is Silicon Nitride. The rolling elements material is silicon nitride (Si3N4). The cage material is PEEK. Keep each material tied to its own part. A rolling-element compound does not identify the rings, and the cage remains a separate choice with its own guidance and lubricant-compatibility requirements.

Full-ceramic construction concerns rings and rolling elements. It does not make the cage ceramic or make different ceramic compounds equivalent. Compare the actual contact pair, support materials and temperature gradients. Density, elastic response and thermal expansion influence the operating condition, but a ceramic name alone cannot establish chemical compatibility, electrical isolation or an allowable duty.

Interpreting the Operating Data

The load data for CE71909SIPP include dynamic radial rating 355 lbf and static radial rating 278 lbf. Dynamic and static ratings are not alternative labels for the same operating limit. Dynamic data support a rolling-load life assessment; static data address the risk of lasting contact deformation. Resolve the forces at the bearing and apply the appropriate calculation before comparing the machine duty with either value.

The speed entry is 7.2 × 1,000 rpm. The temperature-range entry is -176 to 1472 °F. Use these entries with the applicable enclosure, cage and lubrication conditions. A reference speed is not automatically a limiting speed, and a broad temperature entry does not establish continuous operation at every speed or load across that range. Heat generated at the contacts and removed through the surrounding structure must also be considered.

Enclosure and the Lubricated Contact

The sealed enclosure of CE71909SIPP sets the immediate boundary around the rolling contacts. Seals affect contaminant entry, lubricant retention and drag. Their suitability depends on the environment and contact conditions, not simply on the word sealed.

The lubrication entry is Dry. This describes the supplied or required condition, not an unlimited dry-running approval. Select lubricant type and quantity for the contact pair, cage, enclosure and duty. Changing a grease or an oil supply can change drag, replenishment and heat removal even when the dimensional fit remains the same.

Assembly Accuracy and Internal Freedom

Plan the assembly force through the part being fitted. Passing a press force through the rolling contacts risks local damage rather than seating the ring cleanly. Square shoulders, clean seats and controlled support around the circumference help retain the intended geometry. Clamping should locate the bearing without forcing a distorted seat into the rings.

The precision notation is ABEC-1. Retain that notation without assigning an unverified equivalence to another standard. Precision, initial clearance and installed preload describe different aspects of the assembly. Interference and temperature differences can alter the running internal condition. Check shaft and housing fits, seat form and shoulder runout together; a close dimensional match cannot establish the accuracy of the complete rotating system.

Mating Surfaces and the Duty Cycle

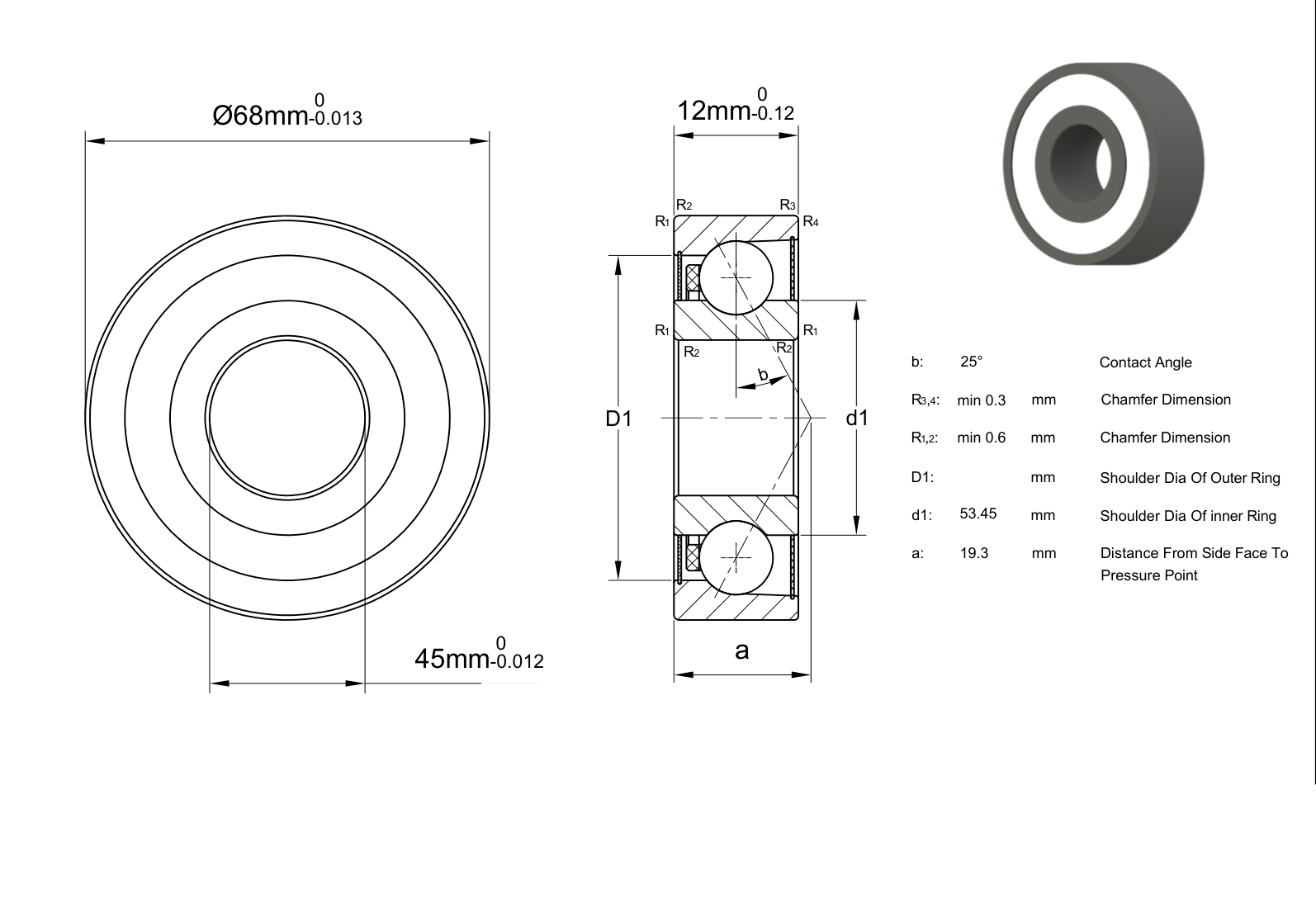

The mating-interface details include bore dia tolerance: -0.012 mm to 0, outer dia tolerance: -0.013 mm to 0, and width tolerance: -0.12 mm to 0. A fillet that interferes with a ring corner prevents full seating, while an inadequate abutment can leave the load-carrying face poorly supported. These dimensions concern distinct surfaces and must not be substituted for the main bore, outside diameter or width.

For CE71909SIPP, assess starts, steady rotation, load changes and stops as parts of the same duty. The governing load case may not occur at the highest speed. Thermal growth can also shift the load between supports, so verify the locating arrangement, remaining clearance and lubricant supply over the operating cycle rather than at one nominal condition.

Matching the Bearing to the Support Arrangement

Choose CE71909SIPP by matching its contact geometry and actual component configuration to the support arrangement. Verify the primary dimensions first, then orientation or axial location, load direction, enclosure and lubrication. Use the explicit ratings and precision or clearance entries where provided. Missing values need confirmation, not substitution from another ceramic product.

The important application question is how the assembly controls combined radial and axial reaction, including reversals and thermal effects. The bearing family describes a useful construction choice. Acceptance for a particular machine still depends on the complete duty calculation and installation, not a general promise attached to its material name.
