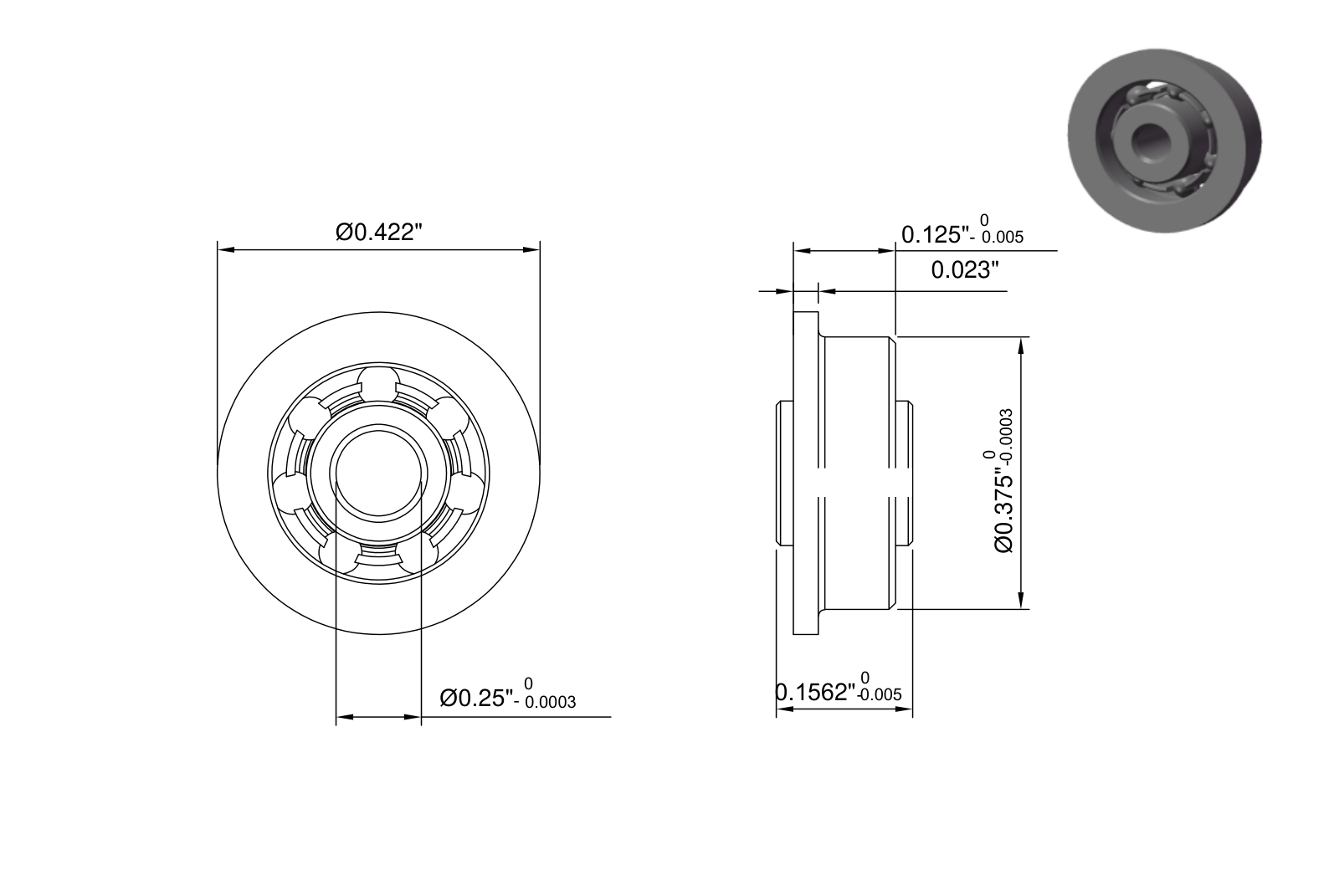

Design Features of FRW168 Bearing
FRW168 Bearing is designed to provide enhanced shaft support and improved alignment. FRW168 bore dia is 0.25″. Its out dia is 0.375″. FRW168 flange outer dia is 0.422″ and its flange thickness is 0.023″. FRW168 inner ring outer dia is Inner_Ring_0.375″ and its inner ring width is 0.1562″. The flange and extended inner ring work together to limit axial movement and keep the bearing in place.
What Benefits Can FRW168 Bearing Provide?
- Enhanced Axial Load Support: Due to the extended inner ring, FRW168 bearing can manage higher axial loads.
- Augmented Rigidity: This bearing assembly gains additional stability from the extended inner ring.
- Simplified Mounting: The extended inner ring facilitates easier mounting.
- Better Alignment: The extended inner ring allows for improved alignment within the application.
What Can FRW168 Bearing Be Used for?
FRW168 Bearing is especially useful in applications where axial loads or vibrations are present, such as:
- Automotive Transmissions
- Electric Motors
- Robotics
- Conveyor Systems
- Pump and fan installations
