Name: FRW2-6 bearing - Flanged Ball Bearings With Extended Inner Ring | Bearing Maker
Price: 3.65 USD
Availability: InStock

FRW2-6

Part Number	FRW2-6
System of Measurement	Inch
Bearing Type	Ball
For Load Direction	Radial
Construction	Single Row
Inner Ring Type	Extended
Seal Type	Open
Bore Dia	0.125″
Bore Dia Tolerance	-0.0003″ to 0″
Outer Dia	0.375″
Outer Dia Tolerance	-0.0003″ to 0″
Width	0.1094″
Width Tolerance	-0.005″ to 0″
Flange Outer Dia	0.422″
Flange Thickness	0.023″
External Diameter On Inner Ring	0.173″
Inner Ring Width	0.1406″
Ring Material	Chrome Steel
Ball Material	Chrome Steel
Cage Material	Stainless Steel
Dynamic Radial Load	122 lbf
Static Radial Load	41 lbf
Max Speed (X1000 rpm)	53
Lubrication	Required
Temperature Range	-86 to 230 °F
Tolerance Class	ABEC1
Radial Clearance Trade No	MC3
Radial Clearance	0.00008″ to 0.0005″
RoHS	Compliant
REACH	Compliant
Ball Dia	0.0625″
Ball Qty	7
Weight	1.35 g

$3.65

Guaranteed Safe Checkout

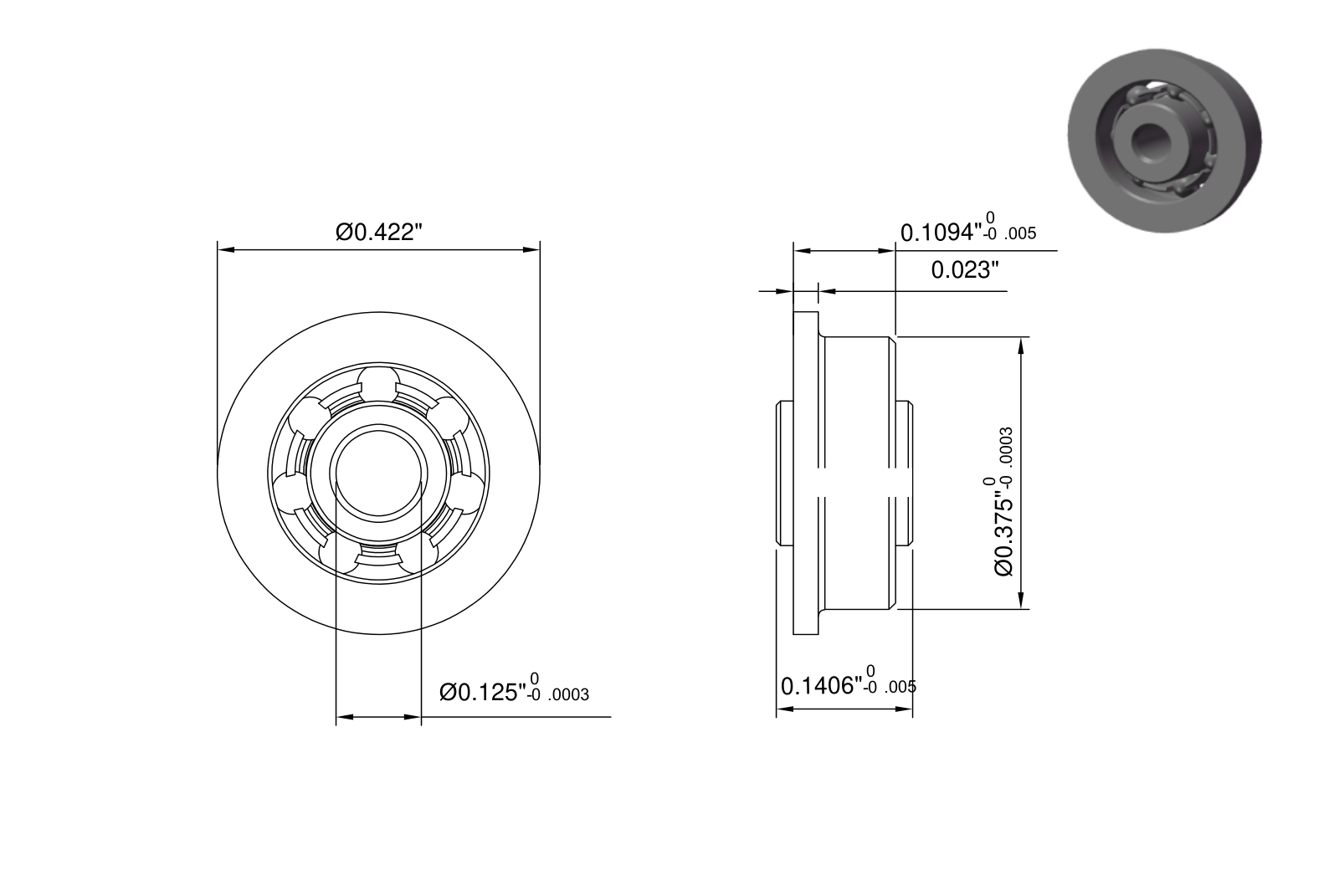

Design Features of FRW2-6 Bearing

FRW2-6 Bearing is designed to provide enhanced shaft support and improved alignment. FRW2-6 bore dia is 0.125″. Its out dia is 0.375″. FRW2-6 flange outer dia is 0.422″ and its flange thickness is 0.023″. FRW2-6 inner ring outer dia is Inner_Ring_0.375″ and its inner ring width is 0.1406″. The flange and extended inner ring work together to limit axial movement and keep the bearing in place.

What Benefits Can FRW2-6 Bearing Provide?

Enhanced Axial Load Support: Due to the extended inner ring, FRW2-6 bearing can manage higher axial loads.
Augmented Rigidity: This bearing assembly gains additional stability from the extended inner ring.
Simplified Mounting: The extended inner ring facilitates easier mounting.
Better Alignment: The extended inner ring allows for improved alignment within the application.
