HFL0615-R is a one-way needle roller clutch. Its configuration identifies bearing type Needle, construction Triple Row, and enclosure Open. The contact arrangement, ring interfaces and internal condition must be considered together when selecting the bearing. Nominal size is only one part of that decision. Relate the required reaction to the available installation space, the working component materials and the lubricant arrangement before treating another model as an alternative.
Roller Geometry and the Working Reaction
HFL0615-R is a one-way needle roller clutch. Its roller contacts engage for torque transmission in one relative direction and permit overrun in the other. Engagement therefore serves a different purpose from ordinary radial support. The installed engagement direction must agree with the mechanism, and the shaft, housing and any separate supporting bearings must be checked as a coordinated arrangement.
Reliable engagement depends on the mating contact surfaces and their installed geometry. Spring, retainer and ring roles must stay distinct; a spring material is not the material of the entire clutch. Confirm the intended torque and overrun duty separately, including reversal, impact and lubricant effects. Neither a one-way designation nor a familiar size proves compatibility with a particular drive or machine.
Mating Dimensions and Package Relationships

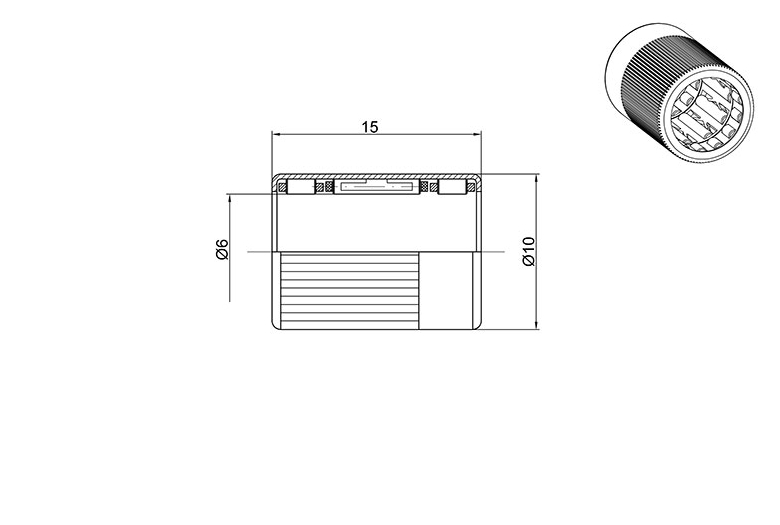

The main dimensional interfaces identify bore 6 mm, outside diameter 10 mm, and width 15 mm. The measurement system is Metric. Coordinate shaft location, housing seating and available axial space using those separate roles. A raceway diameter is not automatically a mounting bore, and a washer or cup width is not necessarily the total package width. Nominal size agreement alone does not prove that an alternative will fit and function correctly.
Obtain the applicable dimensional limits before specifying the mating parts. These are interface limits, not a ready-made machining instruction for a shaft or housing. Consider which member rotates relative to the load, the stiffness of its seat and thermal changes during operation. The installed fit must preserve ring shape and the intended contact condition as well as permit assembly.
Component Materials and Contact Pairing
The component material entries specify rings as Steel, rolling elements as Steel, cage as Steel, and springs as Steel. Each entry belongs to the component named, not to an assumed homogeneous bearing. Keep roller or needle material separate from the rings, cage and any springs. Their combination determines the contact pair and the surrounding mechanical interfaces; a retainer material alone says nothing about the raceway alloy.
Material selection must be related to the actual exposure and operating duty. Surface condition, heat treatment and the mating material affect rolling contact, while lubricant compatibility matters throughout the contact system. Assess contaminants and temperature with the stated component combination. An alloy or material label does not by itself establish chemical-service qualification, corrosion immunity or a guaranteed service life for the installed mechanism.
Ratings and Their Operating Basis
The clutch operating entry identifies torque capacity 0.5 Nm. Torque transmission and overrun are separate operating conditions. Assess engagement, reversal and impact with the actual shaft and housing geometry. A stated torque capacity is not a radial bearing rating, and it does not establish a permissible overrun speed. Preserve the engagement duty and any operating qualifiers instead of substituting a general rolling-bearing fatigue calculation.
The operating limits list Max Speed (X1000 rpm): 23 and Temperature Range: -30° to 110 °C. Keep every qualifier and unit attached to its own value. A limiting speed, a reference speed and a lubricant-specific speed describe different conditions; none establishes a universal running speed. Check heat release, lubricant delivery and the surrounding support against the actual duty before setting an operating point.
Support Interfaces and Assembly Assessment
Establish the required engagement direction before installation, then check shaft and housing support for that duty. The mating surfaces must preserve the contact geometry needed for locking and overrun. Do not use a nominal fit alone as evidence of torque transmission. Apply assembly force to the supported member and protect the needle contacts and retainer. The explicit interface provisions identify shaft mounting Press Fit and Knurled: Yes. These do not imply supplied mounting accessories or compatibility beyond the stated configuration.
Verify engagement and free overrun with the actual mating parts and lubricant condition. Any radial support needed by the mechanism must be established independently. Check reversal, alignment and the imposed duty without inventing a commissioning torque or speed. Preserve the ordered configuration and engagement orientation when assessing another clutch of similar size.
Contact Protection and Lubricant Supply
The open enclosure leaves contamination control and lubricant retention to the surrounding design. Determine how particles, fluids or debris might enter the working contact space and how lubricant reaches it during motion. Open construction is not evidence that lubrication can be omitted or that the assembly is protected against the operating environment.
The lubrication condition is Lubricated. Keep that condition when assessing the ordered arrangement. Film formation and heating depend on the contact materials, speed, load and temperature. Match viscosity and delivery to the complete duty, including startup and replenishment conditions. A general lubricant condition does not set a fill quantity, a service interval or a permissible operating temperature by itself.
Geometric Control and Installed Contact Condition
Confirm the required initial internal condition and geometric control for the ordered arrangement. Precision, clearance and preload describe different aspects of a rolling assembly. Preserve the notation as stated without converting between standards or treating a clearance code as an accuracy class. The installed behavior depends on the contact geometry as well as the specified component limits.
For a one-way clutch, the installed contact condition must support both engagement and overrun. Check the shaft and housing geometry, surface condition and lubricant effects together. A precision notation does not establish engagement torque or overrun speed. Confirm those operating requirements independently rather than assigning them from nominal size or a tolerance designation.
Selection of the Complete Configuration
HFL0615-R may be considered in mechanisms requiring defined one-direction torque transmission and overrun. This is general engineering context, not suitability approval for a named machine. Establish the load direction and duty first, then compare the contact arrangement, mating dimensions and actual internal condition. The surrounding design must support the intended reaction without an incompatible fit or an unstated operating capability.
A useful specification keeps the exact model and working component combination visible. Compare enclosure and lubricant requirements, material roles, dimensional limits and ratings on their stated bases. Relate those facts to seat support, thermal change and the completed running condition. A shared size or series designation alone does not establish interchangeability, guaranteed life or the performance of the installed mechanism.
