M4-30P4Z Slewing Ring Bearing

M4-30P4Z is a transport-vehicle slewing ring. The configuration identifies Bearing Type: Standard and Series: 1000 Series. It provides a rotating joint between supported structures. The contact arrangement, the ring mounting interfaces and the drive connection must be selected together, rather than treating the outside envelope as the complete specification.

Contact Arrangement and the Supported Joint

M4-30P4Z identifies Type: Ball. The transport-vehicle slewing-ring identity describes the family of rotating joint, not approval for a particular vehicle. The joint connects supported members while permitting relative rotation. The actual reaction direction, mounting support and motion determine the required bearing and fastening assessment.

An installation must resolve how forces pass from one structure, through the rolling contact, into the other structure. Shared nomenclature or a related series cannot establish a vehicle fit, duty rating or qualification. Match the exact interfaces and required operating case.

Drive Interface and Gear Geometry

M4-30P4Z is supplied without an integral gear. Its bearing function and the means of applying rotation are separate selection questions. The drive must connect to the moving structure through the intended design; the absence of gear teeth does not identify a particular drive method or give a drive torque limit.

Check the external drive connection against the joint motion and the supporting structure. Do not treat the ungeared ring diameter as a gear pitch diameter. Bearing reaction data also cannot substitute for a drive-interface assessment, because the drive and the bearing perform different functions.

Envelope and Individual Ring Interfaces

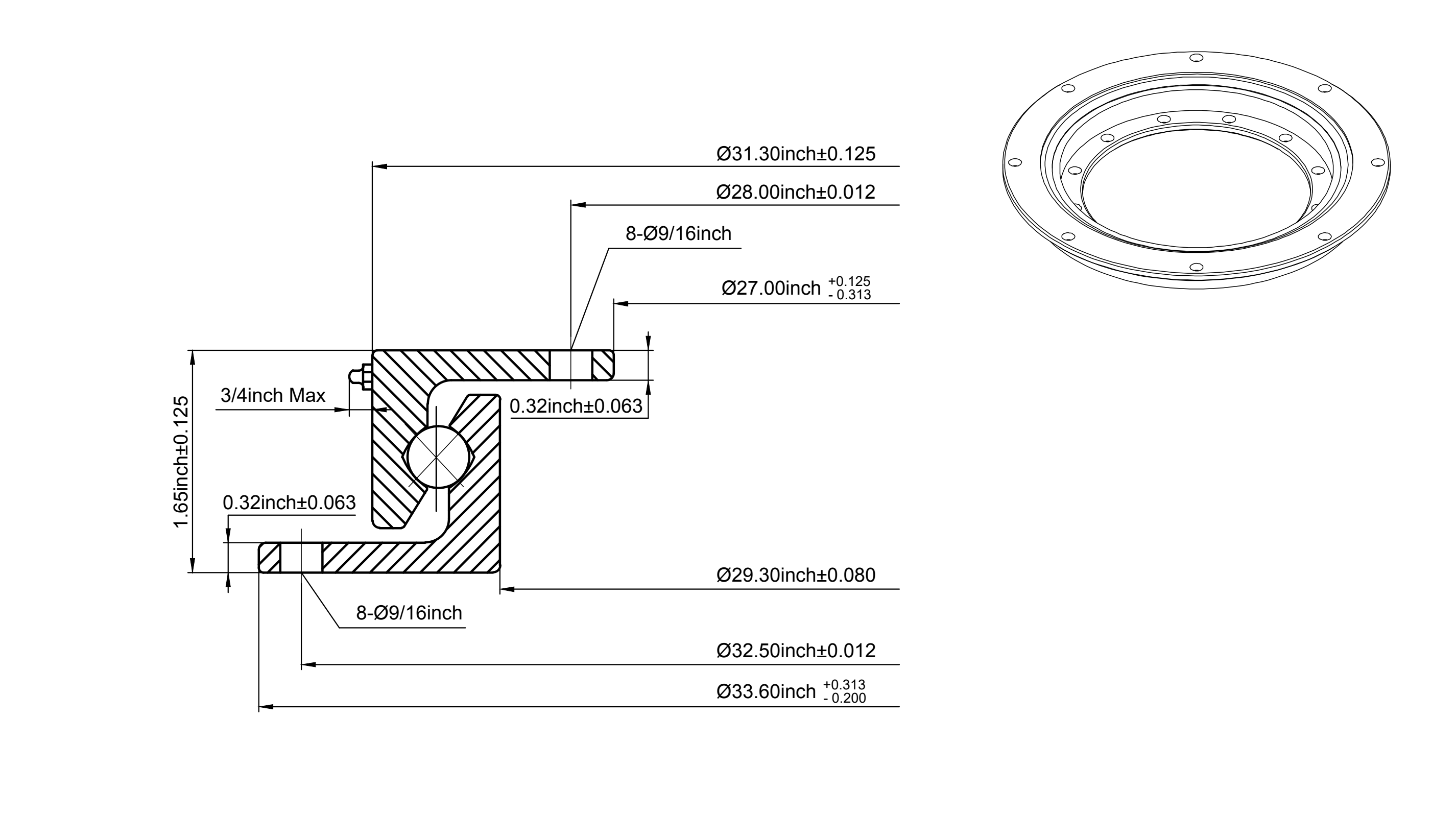

The main envelope of M4-30P4Z identifies Inside Diameter Of Inner Ring: 27″, Outside Diameter Of Outer Ring: 33.6″, and Height Of Overall Bearing Assembly: 1.65″. The inner opening, outer envelope and axial package serve different layout checks. None should be substituted for a mounting-hole circle or gear pitch diameter. Allow room for adjacent members over the full intended motion, not only in one static position.

Ring-specific geometry identifies Internal Diameter On Outer Ring: 31.3″, External Diameter On Inner Ring: 29.3″, Internal Diameter On Inner Ring: 29.3″, and External Diameter On Outer Ring: 31.3″. Ring heights and raceway diameter have their own roles and are not interchangeable with overall assembly height or an opening diameter. Check axial overlap and radial clearance against the actual interfaces. Preserve the stated units for each dimension rather than converting a measurement-system label into a unit for another value.

Attachment Patterns and Installed Geometry

The inner-ring attachment identifies Bolt Circle In Inner Ring: 28″. The outer-ring attachment identifies Bolt Circle In Outer Ring: 32.5″. The two ring attachment interfaces are separate connections. Match each stated circle, quantity and hole form to its own supporting member; do not exchange inner and outer patterns because the nominal bearing size agrees.

Interface and running-condition entries are Inside Diameter Of Inner Ring Tolerance: -0.313″ to +0.125″, Outside Diameter Of Outer Ring Tolerance: -0.2″ to +0.313″, Height Of Overall Bearing Assembly Tolerance: -0.125″ to +0.125″, Internal Diameter On Inner Ring Tolerance: -0.8″ to +0.8″, and External Diameter On Outer Ring Tolerance: -0.125″ to +0.125″. Tolerance, clearance and runout describe different checks. Flat backing, fastener load and structural stiffness influence installed geometry; a nominal dimension does not establish a bolt torque or an assembled preload. Confirm seating and alignment before applying normal duty.

Rating Direction and the Combined Duty

Relate the axial operating requirement to the bearing contact arrangement and applicable product data. Keep dynamic and static bases separate when checking the duty. Where more than one rating notation is given, retain each notation rather than treating the values as interchangeable or assigning a new rating basis.

An overturning requirement needs the applicable moment assessment as well as the force assessment. Joint loads must be checked with support deflection and the fastener system. Separate maximum values do not prove simultaneous capacity, fatigue life or a speed limit. Bearing reaction data must be used with the stated contact arrangement; an unrelated rating direction cannot supply a missing operating limit.

Separate Material Roles

Material roles remain separate in M4-30P4Z. The ring-material entry is 42CRO or 50MN. The ball-material entry is Chrome Steel. These names describe their individual members, not a uniform whole-bearing material. Any alternatives joined by “or” remain alternatives; confirm the ordered member configuration rather than assuming that every listed material is fitted.

The cage-material entry is Nylon or 300 Series Stainless Steel. The seal-material entry is NBR. Cage guidance and seal material have different functions from ring contact support. Material names alone do not establish corrosion qualification, heat treatment, temperature limits or lubricant compatibility. Consider the actual operating medium and the individual member condition without assigning an unlisted environmental capability.

Lubricant Access and Handling

Lubrication and contamination control must suit the working contacts and the installed position of M4-30P4Z. Plan lubricant access through the actual assembly design; no fitting quantity or replenishment interval follows from the bearing designation. A seal-material name is not an ingress-protection rating. Lubricant compatibility and contamination control must be assessed for the installed environment.

The stated weight is 60 lbs. Handling and seating should preserve the ring faces and working geometry. Use the applicable lifting and mounting procedure, without assigning lifting points or tooling from the bearing name. Mounting forces should act through the member being seated rather than across rolling contacts. After installation, check motion, alignment and lubricant access before introducing the intended load.

Putting the Joint Specification Together

Select M4-30P4Z as a transport-vehicle slewing ring without an integral gear. The decision should connect contact geometry, the two ring interfaces, the mounting support and the applicable load case. Compare the exact attachment and drive-connection data when considering a replacement; an equal outside diameter or similar family name cannot prove interchangeability.

Before release, retain the exact designation with the ring dimensions, distinct rating bases and ordered material configuration. Verify the mating design, fastening assessment, gear mesh where present and installed running condition. These checks establish a coherent rotating-joint specification without turning general engineering function into approval for a particular machine or operating environment.
