NF050XP0 Four-Point Contact Thin Section Ball Bearing

NF050XP0 is a four-point-contact thin-section ball bearing. Its four-point-contact identity calls for a combined-load assessment of the rotary joint, not just a check of bore size. The open construction and ABEC-1 precision class belong to the same configuration as its dimensional envelope. Selecting the bearing means considering those features together with the load path, fit and lubrication, rather than matching the model to a nominal diameter alone.

Combined Loads through Four-Point Contact

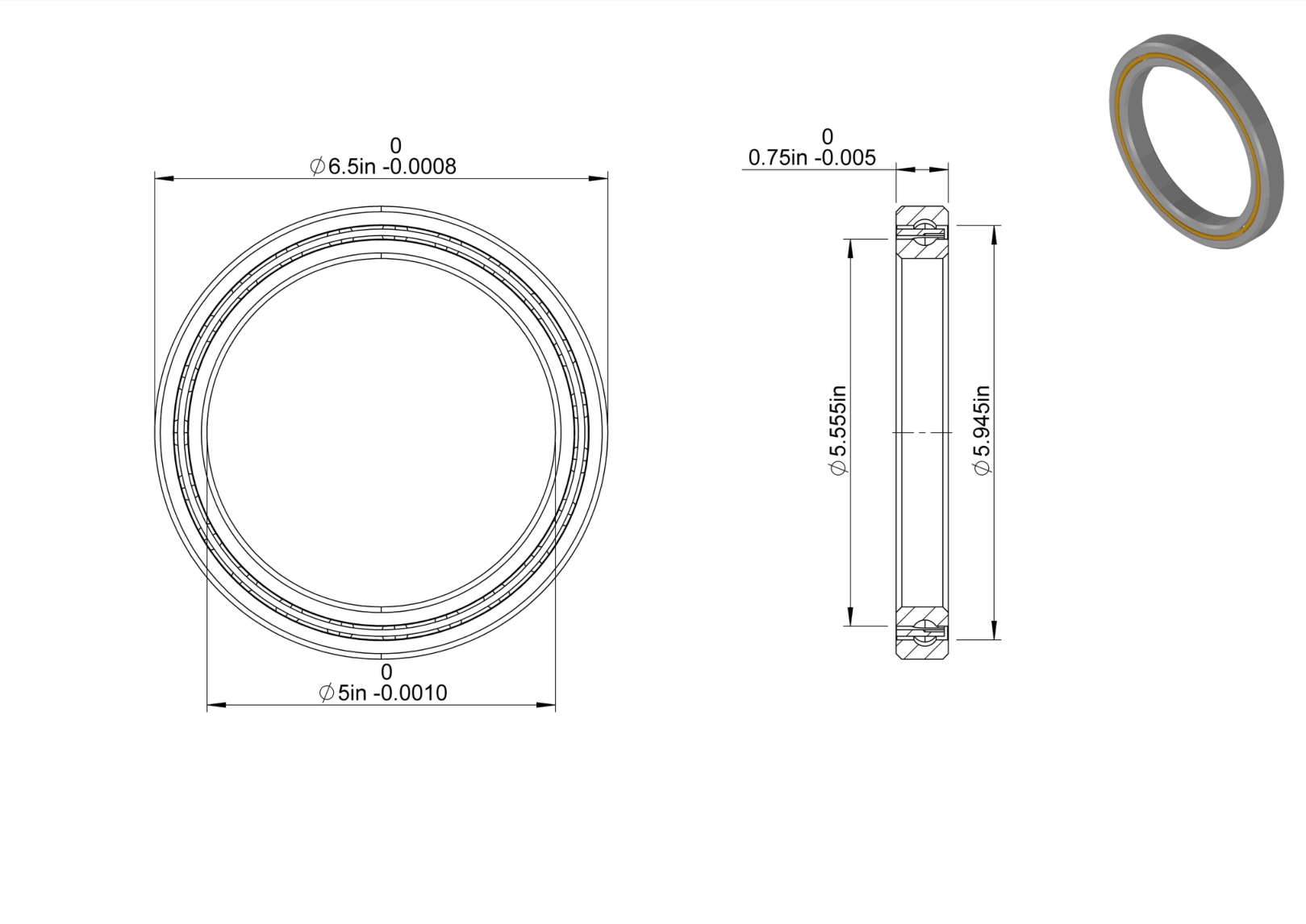

NF050XP0 has a bore of 5″, an outside diameter of 6.5″ and a width of 0.75″. Four-point-contact raceway geometry gives the bearing type a means of reacting radial force, axial force in either direction and overturning moment. The contacts that carry the load change with its direction and with deflection of the surrounding structure. The construction is single row.

An overturning moment does not act as a uniform extra radial force. It changes loading around the circumference, so ring support and the location of the applied forces belong in the calculation. Evaluate the full rotary joint rather than assuming that a radial load rating describes every combined-load case. The Constant Section designation is part of the bearing’s identity, while radial, angular or four-point contact remains a separate selection distinction. Matching a section designation does not make those contact types interchangeable.

Clearance, Precision and Fit Are Different Checks

The radial-clearance entry for NF050XP0 is 0.0000 – 0.0005″. This is not the same quantity as its ABEC-1 precision class. Clearance concerns the internal space between the rolling contacts; precision classification concerns dimensional and running accuracy. Neither value alone establishes the installed preload or the accuracy of the complete mechanism. Fits and temperature differences can alter the running contact condition after assembly.

The interface tolerance limits are bore: -0.0010″– 0″; outside diameter: -0.0008″– 0″; width: +.000 –.005″. Keep the unit and dimensional role of each limit intact. These bearing tolerances do not prescribe the finished shaft or housing size. Assess interference, thermal growth and shoulder alignment together: excessive fit-induced ring deformation can consume clearance or introduce uneven loading, while inadequate location can allow unwanted movement. Thin rings make the surrounding part geometry especially consequential.

The Material Combination at Each Component

The component materials for NF050XP0 are rings: Chrome Steel; balls: Chrome Steel; cage: Brass. Rings and balls form the loaded rolling contacts, whereas the cage separates and guides the balls. Those roles should remain distinct when comparing configurations: the cage material does not identify the rings, and a ring material does not identify the rolling-element material.

The surface-treatment entry is Chromium Plating. Evaluate the treatment for the actual exposure and mating conditions rather than using its name as a general environmental rating. Use the specified component combination when assessing exposure and lubricant compatibility; the product name alone is not a substitute for those materials. Contamination, surface condition and operating temperature remain part of the application assessment. A material label cannot replace a review of the rolling contacts and the surrounding enclosure.

Enclosure and Lubrication as One Arrangement

Open construction leaves lubricant delivery, retention and contamination control to the surrounding assembly. It provides access to the bearing space, but exposed raceways need an appropriate system-level enclosure. Consider how particles or fluids can reach the contacts during operation, installation and storage rather than assuming that the machine housing provides adequate protection in every condition.

The bearing is supplied lubricated. That supplied condition is the starting point for assessing the operating arrangement, not a service-interval guarantee. Load, speed, temperature and orientation affect film formation and heat. Too much lubricant can increase churning, while an inadequate film can impair contact behavior. Any replenishment provision must maintain cleanliness and avoid damaging the closure or forcing the slender rings out of alignment.

Interpreting Ratings without Mixing Load Roles

For NF050XP0, the dynamic radial load rating is 5172 lbf and the static radial load rating is 6490 lbf. Dynamic and static ratings answer different questions: fatigue assessment during rotation and the risk of permanent deformation under stationary, peak or slowly moving load. They are not interchangeable operating limits. The additional ratings are dynamic thrust: 7760 lbf; static thrust: 16220 lbf; moment load: 11 ft-lbf. Keep their load directions and units separate when assessing combined duty.

The temperature-range entry is -30°C to 110 °C. These figures have to be considered with the selected lubricant, closure, fit and heat-removal conditions. A demanding load case can change the practical operating condition even when one isolated value appears acceptable. Calculate the bearing reactions from the complete mechanism and use the real duty cycle; the ratings do not establish a particular service life or assembled-system performance.

Mounting without Distorting the Rings

Mounting NF050XP0 begins with clean, burr-free seats and a review of the complete bearing envelope. For the four-point arrangement, assess mounting-face deflection and clamping uniformity with the combined radial, axial and moment reactions. Installation force for an interference fit should act on the ring being fitted, avoiding a force path through the balls and raceways. Shoulder and adjacent-part geometry must allow the bearing to seat without unintended contact or uneven axial loading.

The assembly should be checked after clamping as well as before it. Housing deformation, tilted shoulders or uneven restraint can change the running clearance and load distribution. Free rotation and observations of torque, noise and temperature can help identify binding before normal service. Those checks complement dimensional inspection; they do not replace an assessment of alignment, lubrication and the loads that the assembled mechanism will actually impose.

Choosing the Complete Configuration

This bearing type is commonly considered for rotary positioning joints where radial, axial and overturning loads must be assessed together. Use that context to frame the engineering assessment, not as a guarantee that a particular machine is suitable. The load directions, duty cycle, operating speed, exposure and available support stiffness still have to be established. A replacement with the same bore can differ in contact geometry, closure or internal condition, so nominal size alone is not sufficient.

For NF050XP0, start with four-point contact, the combined load reactions and the stiffness of the surrounding joint, then assess the open configuration and ABEC-1 precision class against the same operating conditions. Materials, lubrication and the selected fits interact with those choices. Keeping the configuration intact through purchasing and assembly is more useful than evaluating each parameter in isolation: the bearing must work with the shaft, housing and reaction path as one mechanical arrangement.
