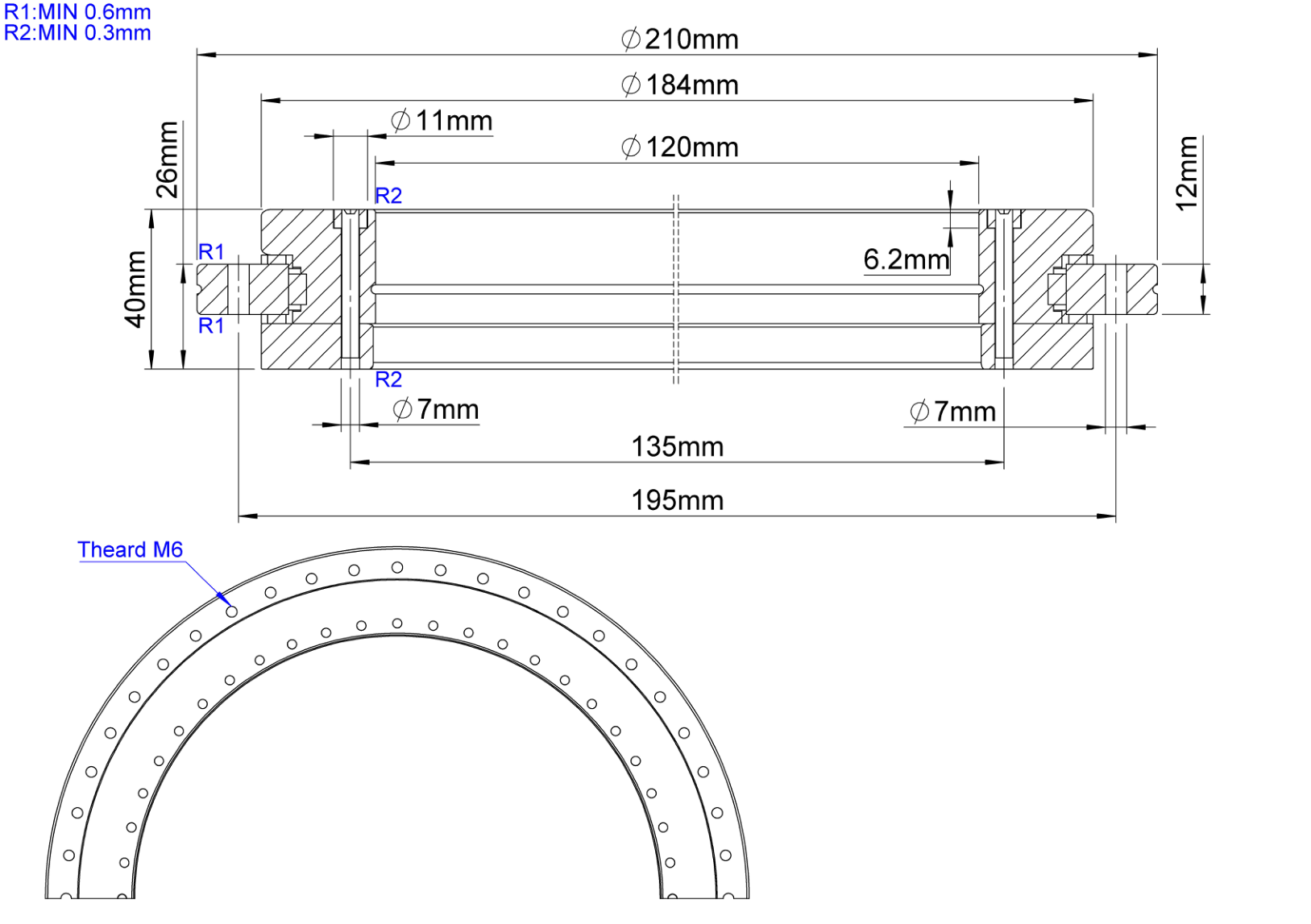

NRT 120 B
| Part Number | NRT 120 B |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 120 mm |
| Bore Dia Tolerance | -0.010mm to 0 |
| Outer Dia | 210 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 40 mm |
| Height Tolerance | -0.175mm to 0 |
| Shoulder Diameter Inner Ring – Large Shoulder | 184 mm |
| Outer Ring (Housing Washer) Width | 12 mm |
| Distance | 26 mm |
| Inner Ring (Shaft/Locating Washer) Hole Pitch Circle Diameter | 135 mm |
| Outer Ring (Housing Washer) Hole Pitch Circle Diameter | 195 mm |
| Inner Ring (Shaft/Locating Washer) Through Hole | 7 mm |
| Inner Ring (Shaft Washer) Sinkhole | 11 mm |
| Outer Ring (Housing Washer) Through Hole | 7 mm |
| Inner Ring (Shaft Washer) Sinkhole Depth | 6.2 mm |
| Outer Ring (Housing Washer) Chamfer Dimension r1 (min.) | 0.6 mm |
| Chamfer Dimension r2 (min.) | 0.3 mm |
| Basic Dynamic Load Rating – Radial Direction | 64.4 kN |
| Basic Static Load Rating – Radial Direction | 140 kN |
| Basic Dynamic Load Rating – Axial Direction | 72 kN |
| Attainable Speed For Grease Lubrication | 230 r/min |
| Attainable Speed For Oil-Air Lubrication | 460 r/min |
| Axial Preload | 2 kN |
| Axial Unloading Force | 4.4 kN |
| Frictional Moment | 6 N·m |
| Axial Stiffness For Preload A (sets of two brgs back-to-back or face-to-face) | 8500000 kN/μm |
| Axial Stiffness For Preload B (sets of two brgs back-to-back or face-to-face) | 4500000 kN/μm |
| Moment Stiffness | 23 kN·m/mrad |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Brass |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.8 kg |
