Name: SF684 2rs bearing - Stainless Steel Bearings | Bearing Maker
Price: 1.62 USD
Availability: InStock

SF684 2rs

Part Number	SF684 2rs
System of Measurement	Metric
Bearing Type	Ball
For Load Direction	Radial
Construction	Single Row
Inner Ring Type	Standard
Seal Type	Sealed

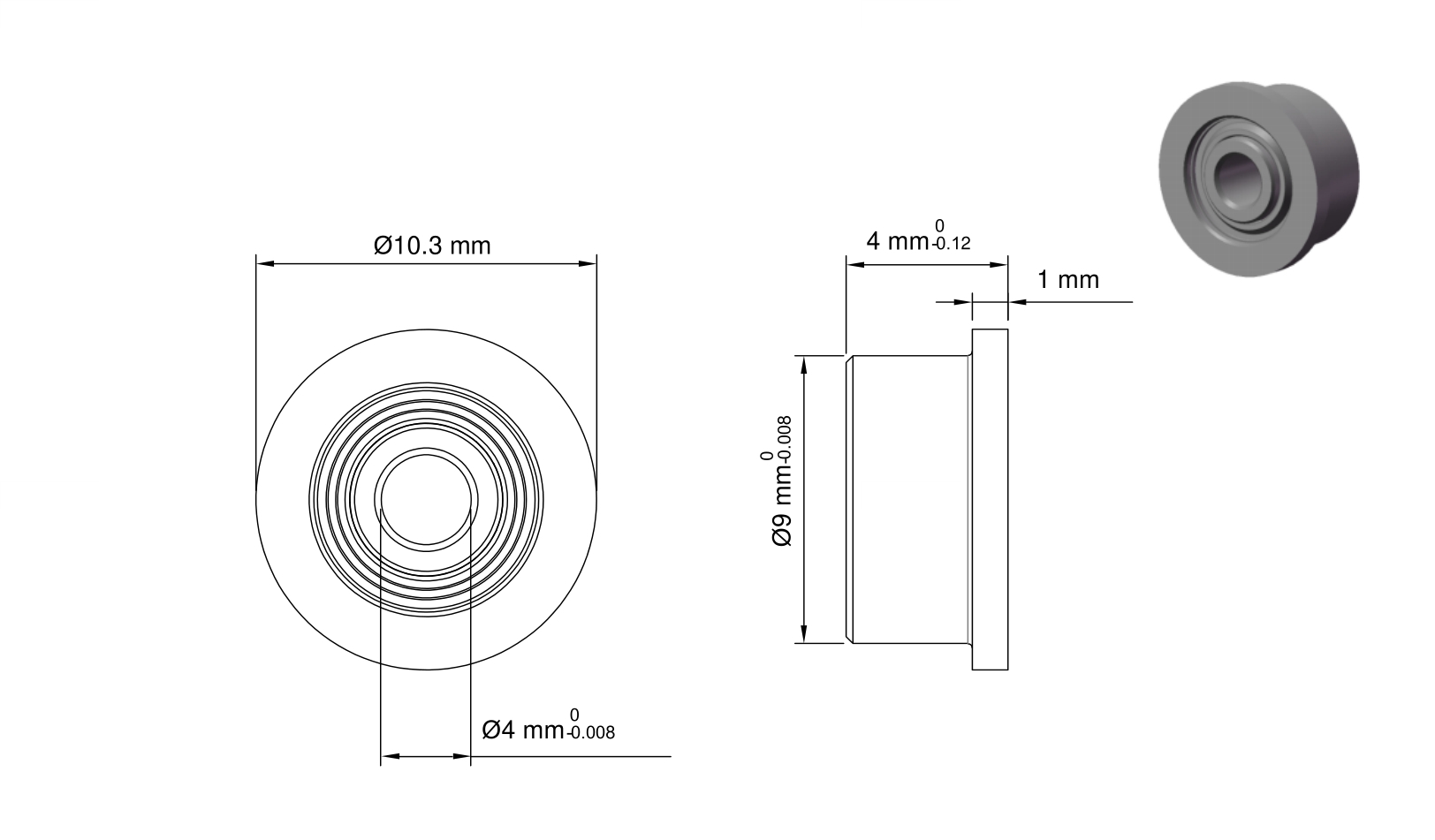

Bore Dia	4 mm
Bore Dia Tolerance	-0.008mm to 0
Outer Dia	9 mm
Outer Dia Tolerance	-0.008mm to 0
Width	4 mm
Width Tolerance	-0.12mm to 0
Flange Outer Dia	10.3 mm
Flange Thickness	1 mm
Ring Material	440C Stainless Steel
Ball Material	440C Stainless Steel
Cage Material	300 Series Stainless Steel
Shield Material	Nitrile Rubber
Dynamic Radial Load	110 lbf
Static Radial Load	37 lbf
Max Speed (X1000 rpm)	47.7
Lubrication	Required
Shaft Mount Type	Press Fit
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC1
Radial Clearance Trade No	MC3
Radial Clearance	0.002mm to 0.013mm
RoHS	Compliant
REACH	Compliant
Ball Dia	1.5880 mm
Ball Qty	7
Weight	1.15 g

$1.62

Why Choose Bearing Maker

Fast Global Shipping
OEM/ODM Services
Technical support & design
Quality Control
Worldwide customer base

Design Features of SF684 2rs

The design feature of a SF684 2rs is its compact, corrosion-resistant structure, designed for use in small, space-constrained applications. SF684 2rs ball diameter is 1.5880 mmmeter. Its outer dia is 9 mm. Its flanged design provides added support and positioning, making it ideal for precise and lightweight machinery.

What Benefits Can SF684 2rs Provide?

Compact Size: Ideal for applications with limited space, providing efficient performance in small, precision devices.
Corrosion Resistance: Made from stainless steel, it offers excellent resistance to rust and corrosion, ensuring reliability in harsh environments.
Support and Stability: The flanged design provides additional support and helps maintain proper alignment and positioning.
Low Friction: Reduces friction for smooth operation, enhancing the efficiency and lifespan of the bearing.
Durability: Offers long-lasting performance with high wear resistance, making it suitable for precision machinery and equipment.
Versatility: Suitable for a wide range of applications, including medical devices, robotics, and precision instruments.

What Can SF684 2rs Be Used for?

Medical Devices: Used in small medical instruments and equipment where compactness and corrosion resistance are critical.
Robotics: Applied in miniature motors, actuators, and other precision components in robotic systems.
Aerospace: Suitable for small-scale aerospace parts that require high precision and reliability in compact forms.
Consumer Electronics: Used in devices like cameras, headphones, and other small electronic equipment for smooth, efficient movement.
Optical Instruments: Common in applications such as microscopes and cameras, where precision and smooth operation are essential.
Toys and Hobbyist Equipment: Ideal for miniature mechanical systems in model trains, RC cars, and other hobbyist products.
