Design Features of SFRW2-5 Bearing

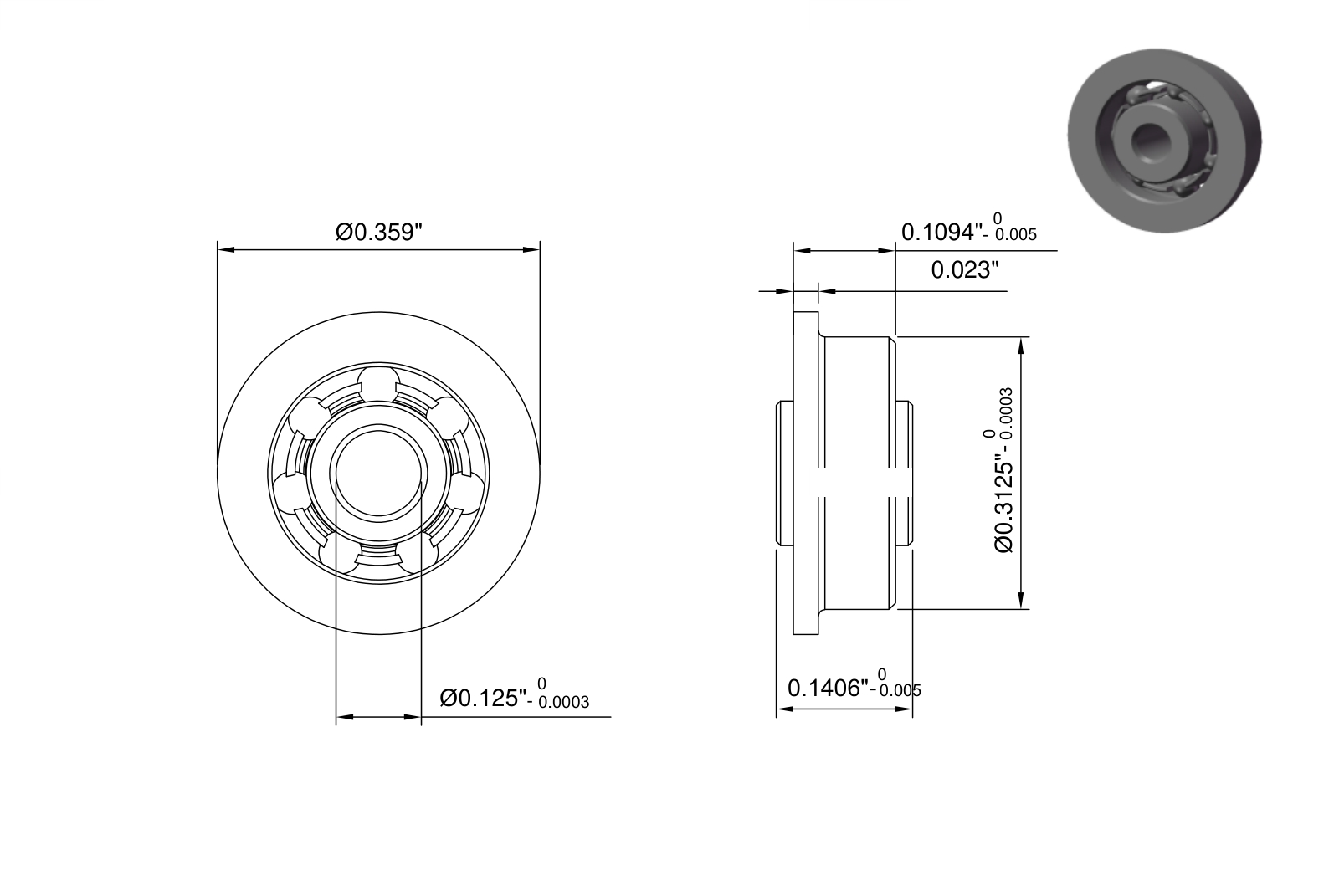

SFRW2-5 Bearing is designed to provide enhanced shaft support and improved alignment. SFRW2-5 bore dia is 0.125″. Its out dia is 0.3125″. SFRW2-5 flange outer dia is 0.359″ and its flange thickness is 0.023″. SFRW2-5 inner ring outer dia is Inner_Ring_0.3125″ and its inner ring width is 0.1406″. The flange and extended inner ring work together to limit axial movement and keep the bearing in place.
What Benefits Can SFRW2-5 Bearing Provide?
- Enhanced Axial Load Support: Due to the extended inner ring, SFRW2-5 bearing can manage higher axial loads.
- Augmented Rigidity: This bearing assembly gains additional stability from the extended inner ring.
- Simplified Mounting: The extended inner ring facilitates easier mounting.
- Better Alignment: The extended inner ring allows for improved alignment within the application.
What Can SFRW2-5 Bearing Be Used for?
SFRW2-5 Bearing is especially useful in applications where axial loads or vibrations are present, such as:
- Automotive Transmissions
- Electric Motors
- Robotics
- Conveyor Systems
- Pump and fan installations
