TC3244 Needle Roller Thrust Cage Assembly

TC3244 is a needle roller thrust cage-and-roller subassembly. The configuration identifies For Load Direction: Thrust and series AXK&TC. Its selection starts with the interface it contributes to the mechanism. The separately specified mating members, their seating and the intended contact condition determine how that interface works after assembly. Keep the component designation with its dimensional and condition data when comparing alternatives; a similar nominal size is not enough to establish a replacement.

Component Role and Mating Contact

TC3244 combines needle rollers with a guiding cage for axial contact. The cage separates and orients the rolling elements; the mating raceway members are supplied or engineered separately. This is a subassembly rather than an entire bearing with all working raceways. Its envelope must be related to the actual contact surfaces, not simply to a convenient space in the mechanism.

For axial operation, the opposing raceway faces and their backing support determine the working roller relationship. Surface finish, alignment and material condition must suit rolling contact. The cage cannot correct a misaligned or inadequately supported raceway. Preserve any stated roller row count and the individual roller and cage roles when reviewing friction, guidance and lubricant access.

Dimensions That Define the Interfaces

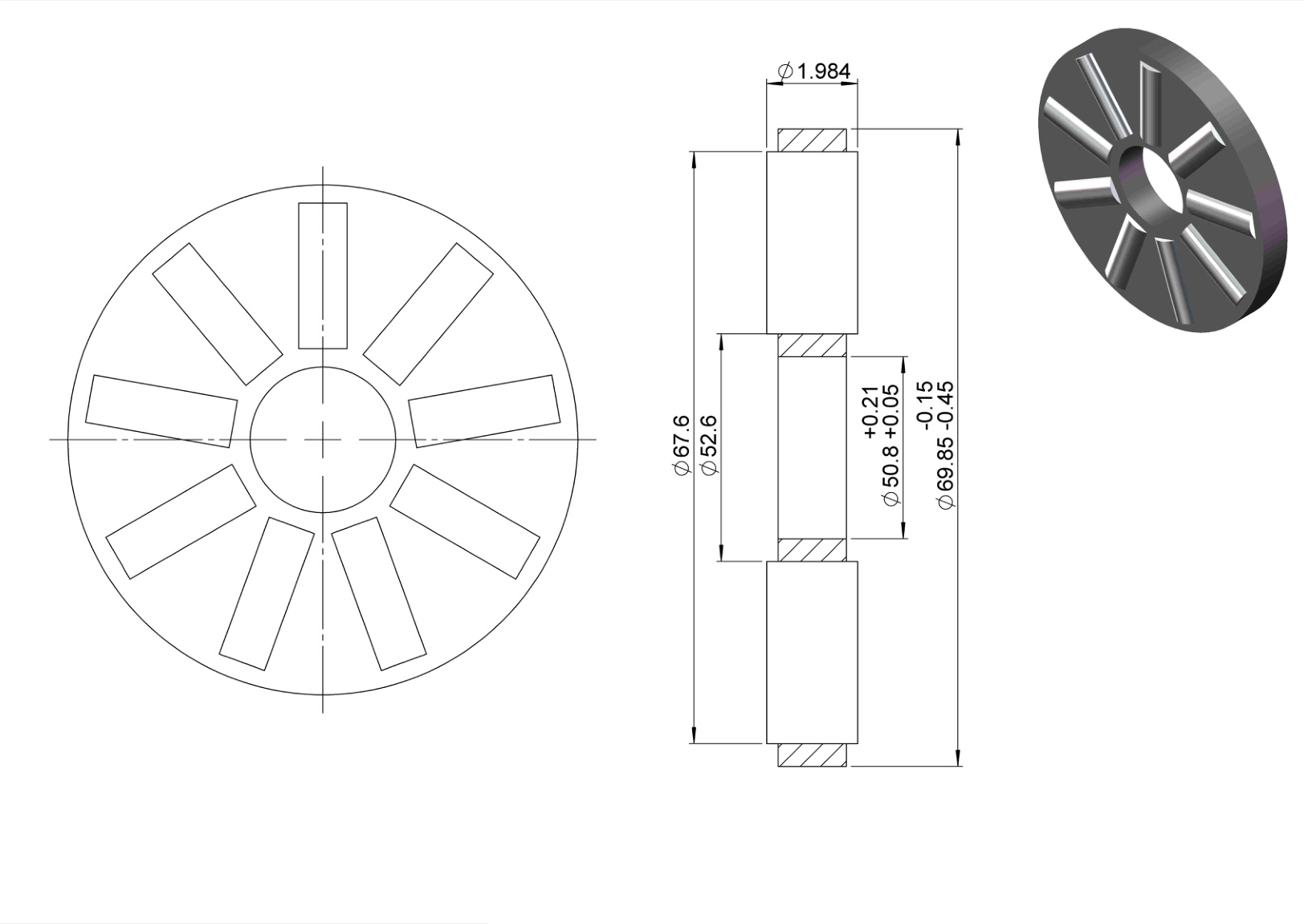

The principal dimensional entries identify System of Measurement: Inch, Bore Dia: 2″, Outer Dia: 2.75″, and Width: 0.078″. Bore and outside diameter define the radial space occupied by the axial roller set, while width contributes to the thrust stack. Keep those envelope dimensions separate from the working washer dimensions. Sufficient backing must extend over the intended roller contact rather than merely clearing the cage outline.

Interface limits include Bore Dia Tolerance: 0.05mm to 0.210mm and Outer Dia Tolerance: -0.450mm to -0.150mm. Use each limit for the dimension named. Component limits do not directly specify a shaft or housing machining tolerance. The required fit also depends on support stiffness, loading and temperature. Check the assembled geometry after seating rather than judging compatibility from one nominal dimension. Retain the signs and units of each limit instead of treating it as a symmetric tolerance.

Material Roles and Geometric Condition

The stated component entries are Needle Material: Steel and Cage Material: Steel. The ring, roller and cage entries retain their separate roles; one does not establish the material of the others. Cage entries can describe construction as well as material, so retain that wording rather than converting a construction term into an alloy. Evaluate the contact pair and the guiding member separately.

Geometric and condition entries identify ABEC Rating: ABEC-1. A grade, hardness or precision notation describes its stated component property, not the accuracy or capacity of the completed mechanism. Surface condition and the mating material affect contact stress and wear. Relate these details to alignment, lubricant film and cleanliness without assigning an unlisted material treatment or operating capability.

Ratings and the Operating Arrangement

The rating entries associated with this component identify Dynamic Thrust Load: 5625 lbf and Static Thrust Load: 32625 lbf. Preserve the stated direction and rating basis when using these data. Dynamic and static values support different engineering checks. A component-associated rating is not a guarantee for an arrangement with different raceways, support or setting. It also does not establish a missing load direction or an independent capacity for every mating combination.

Operating entries identify Temperature Range: -30° to 110 °C, Max Speed (X1000 rpm): 4.1, and Lubrication: Required. Keep the speed multiplier with its value and assess it with the actual mating contact geometry. Lubricant selection, delivery and heat removal depend on the complete duty. Provide a route to the working contacts and account for contamination and retention through the surrounding design. Do not assign an enclosure or a replenishment interval from the component designation.

Backing, Edge Clearance and Assembly

Introduce TC3244 between the intended raceway members without bending the cage or marking the rolling elements. Edge interference, support tilt and incorrect location can disturb guidance even when the envelope fits. Keep the working contact zone aligned with the raceway surfaces and provide lubricant access through the actual surrounding arrangement.

After assembly, check seating, alignment, the intended freedom of motion and lubricant access before applying normal duty. Preserve the individual contact and backing relationships when evaluating runout, heating or wear. Do not route mounting force through rolling contacts simply because it is convenient, and do not infer an installation torque, fit class or preload force that has not been specified.

Selecting the Component as Part of a System

The selection of TC3244 should resolve the thrust washer pairing, axial support and roller contact. This is the component’s useful engineering context, not a machine-specific approval. Compare the exact designation and interface condition before considering an alternative. Material roles, tolerances and any operating entries must remain connected to the same ordered component rather than borrowed from another member of the arrangement.

For procurement and assembly planning, retain the part specification with the confirmed mating designations and the dimensional requirements of the mechanism. Check support, lubricant access and the intended operating duty as a connected system. The value of this component lies in providing its particular interface correctly; similar nomenclature, a shared series or a matching nominal size cannot establish whole-bearing performance or exact interchangeability.
