X30222M

Part Number	X30222M
Brand: BearingMaker	Interchangeable With: Timken
System of Measurement	Metric
Type	Cones
Bearing Type	Roller
Roller Bearing Type	Tapered
For Load Direction	Combined
Construction	Single Row
Seal Type	Open
Series	30222M

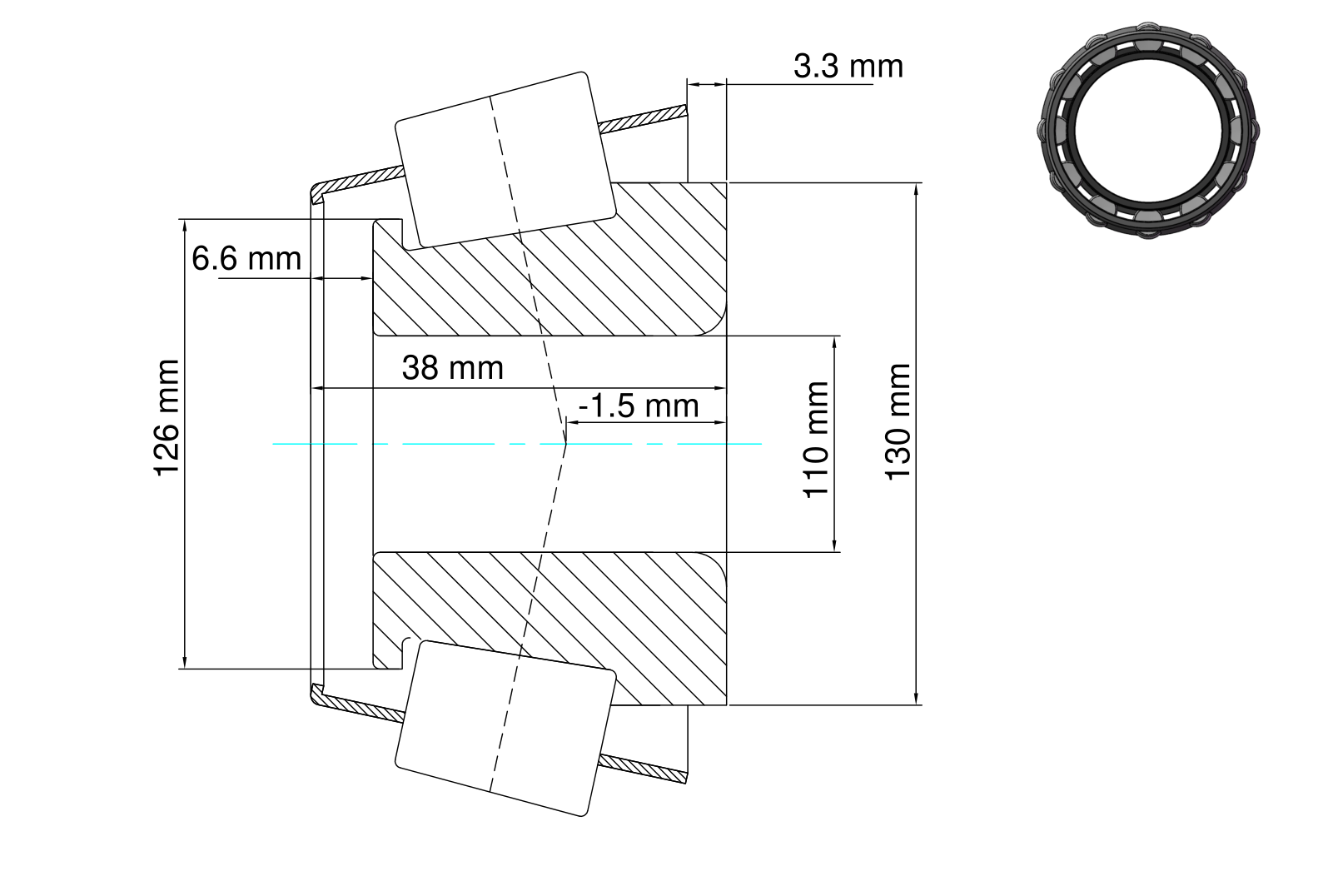

Bore Dia	110 mm
Bore Dia Tolerance	-0.02mm to 0
Cone Width	38 mm
Cone Width Tolerance	-0.15mm to 0
Cone Backface ToClear Radius	3.05 mm
Cone Frontface Backing Diameter	126 mm
Cone Backface Backing Diameter	130 mm
Cage Cone Frontface Clearance	6.6 mm
Cage Cone Backface Clearance	3.3 mm
Effective Center Location	-1.5 mm
Ring Material	Chrome Steel
Cage Material	Steel
Dynamic Radial Load	84150 lbf
Static Radial Load	106875 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90)	21802.5 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1)	146475 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90)	15682.5 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90)	38025 lbf
Temperature Range	-30° to 110 °C
ABEC Rating	ABEC-1
Radial Clearance	Standard (Available in C3/C4/C5)
RoHS	Compliant
REACH	Compliant

Why Choose Bearing Maker

Fast Global Shipping
OEM/ODM Services
Technical support & design
Quality Control
Worldwide customer base

Design Features of X30222M Bearing

X30222M has a tapered shape that allows for better load distribution and minimizes friction, making it effective for handling both radial and axial loads. X30222M cone width is 38 mm. Its bore dia is 110 mm. Designed with high precision and metric dimensions, it is made from durable materials and often includes lubrication provisions to enhance performance and longevity.

What Benefits Can X30222M Bearing Provide?

Improved Load Distribution: The tapered design helps distribute loads evenly, reducing stress on individual components and extending their lifespan.
Reduced Friction: The conical shape minimizes friction between the cone and roller elements, leading to smoother operation and increased efficiency.
High Precision: Manufactured to tight tolerances, single cones ensure accurate performance in applications that require precise movement and positioning.
Versatile Load Handling: Capable of accommodating both radial and axial loads, making it suitable for various applications in different industries.
Durability: Made from high-quality materials, single cones are resistant to wear and tear, ensuring long-term reliability even in demanding environments.

What Can X30222M Bearing Be Used for?

Automotive: In wheel hubs, transmissions, and differentials for efficient load handling and smooth operation.
Industrial Machinery: Found in gearboxes, conveyor systems, and pumps, ensuring precise movement and reliable performance.
Aerospace: Used in aircraft systems where high precision and reliability are essential.
Robotics: Employed in robotic joints and actuators for accurate movement and load distribution.
Machine Tools: Integral to CNC machines, lathes, and milling machines, ensuring precision during machining operations.
