Thrust Ball Bearings

What Are Thrust Ball Bearings?

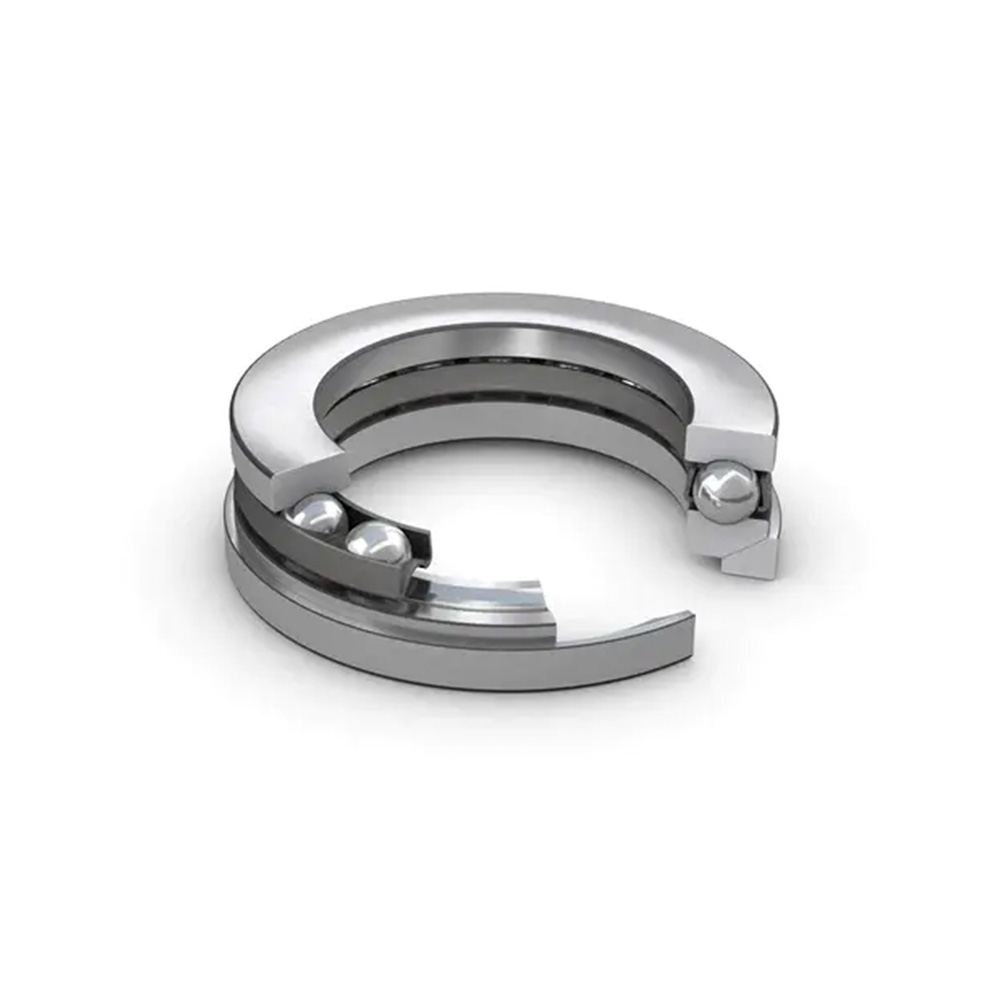

Thrust Ball Bearings consist of two washers—often called the shaft washer and the housing washer—along with a ball set. These components are typically made from durable materials such as stainless steel to ensure high load capacity and smooth rotation when subjected to axial loads.

Types of Thrust Ball Bearings

There are two primary types of thrust ball bearings, each designed to handle specific load conditions. Choosing the right type ensures that your equipment operates efficiently and lasts longer.

Single-Direction Thrust Ball Bearings

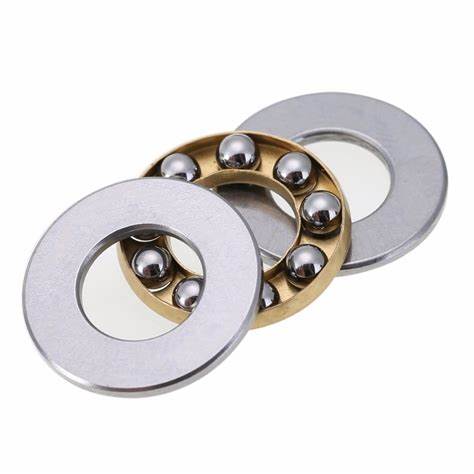

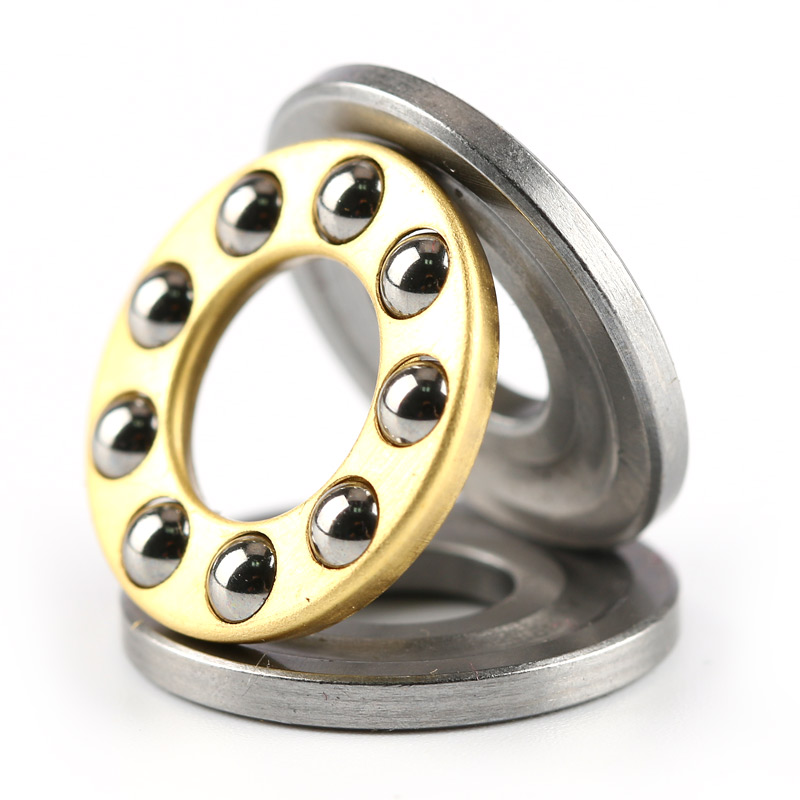

Single-direction thrust ball bearings are designed to handle axial loads from one direction. They consist of a shaft washer, housing washer, and a ball retainer, making them simple to assemble while providing enhanced load capacity.

Double-Direction Thrust Ball Bearings

Double-direction thrust ball bearings are commonly used in applications such as gearboxes and marine propulsion systems. These bearings feature two sets of raceways and balls, enabling them to handle axial loads from both directions simultaneously. This makes them ideal for applications requiring versatile load support.

How Thrust Ball Bearings Work

Thrust ball bearings are specifically designed to manage axial loads, facilitating smooth rotation between two surfaces. Unlike roller bearings or deep groove ball bearings, thrust ball bearings are optimized for thrust loads, not radial loads. This setup is ideal for linear motion and high-speed operations while maintaining a high capacity for axial loads.

Common Thrust Ball Bearing Applications

Thrust ball bearings are used in a variety of industries that require axial load management:

• Automotive Industry: Found in automotive gearboxes and steering systems, these bearings ensure smooth operation under axial loads.
• Aerospace Sector: Essential in gearboxes, engines, and control systems, thrust ball bearings handle axial loads with precision.
• Industrial Machinery: Used in heavy machinery and linear motion systems to handle axial loads efficiently.
• Medical Equipment: Key components in diagnostic tools and surgical equipment, ensuring smooth linear motion.

Advantages of Thrust Ball Bearings

• High load capacity designed to manage large axial loads.
• Reduced friction for smooth rotation and extended bearing life.
• Compact design, ideal for space-constrained applications.
• Versatile, handling both single and double-direction loads.
• Well-suited for high-speed rotation applications.

How to Choose the Right Thrust Ball Bearing

When selecting thrust ball bearings, consider the following factors:

• Load Evaluation: Assess your axial and thrust load needs to ensure the right bearing type.
• Rotational Speed & Tolerance: Choose bearings that meet the speed requirements of your application.
• Temperature Tolerance: Ensure the bearings can function within the required temperature range.
• Lubrication Requirements: Select lubricants that are compatible with your bearings to reduce friction and prevent overheating.
• Environmental Factors: Consider factors like contamination and corrosion when choosing materials.

Maintenance & Lubrication Tips

To extend the lifespan of your thrust ball bearings, follow these maintenance and lubrication guidelines:

• Regularly inspect bearings for signs of wear, especially on the washers and ball retainer.
• Use compatible lubricants to minimize friction and reduce the risk of overheating.
• Keep the bearing environment clean and free of contaminants.
• Monitor the operating temperature to ensure the bearings stay within their tolerance range.
• Ensure proper alignment of axial loads to avoid uneven wear.
