Hybrid Ceramic Bearings

What Are Hybrid Ceramic Bearings?

Hybrid ceramic bearings use steel inner and outer rings paired with ceramic rolling elements, most commonly silicon nitride balls. This hybrid construction enhances performance by reducing rotational friction, increasing speed capabilities, and providing electrical insulation. The combination of materials also improves resistance to wear and corrosion compared to standard all-steel bearings.

Types of Hybrid Ceramic Bearings

Hybrid ceramic bearings are available in several configurations, each optimized for different load conditions and installation scenarios:

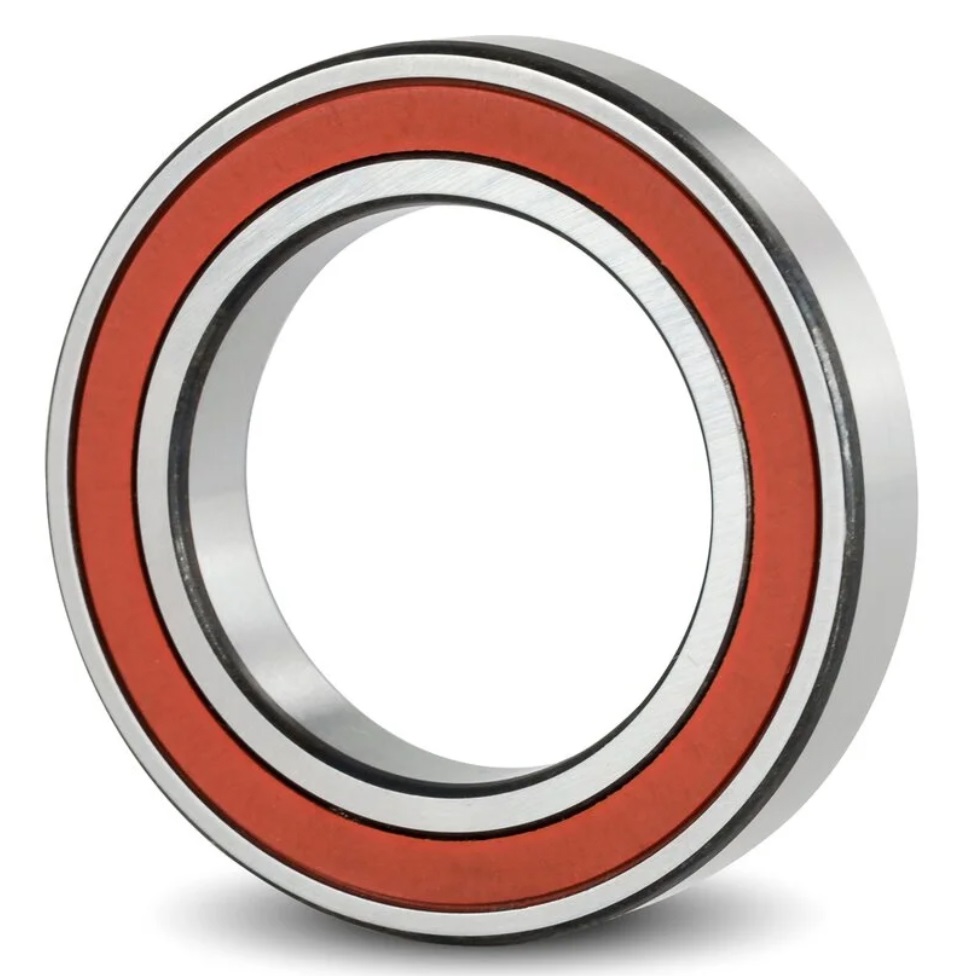

• Deep Groove Ball Bearings: Ideal for high-speed applications with radial loads and moderate axial loads.
• Flanged Bearings: Include a flange for simplified mounting and axial positioning.
• Cylindrical Roller Bearings: Suitable for heavy radial loads and minimal axial load, used in robust industrial machinery.

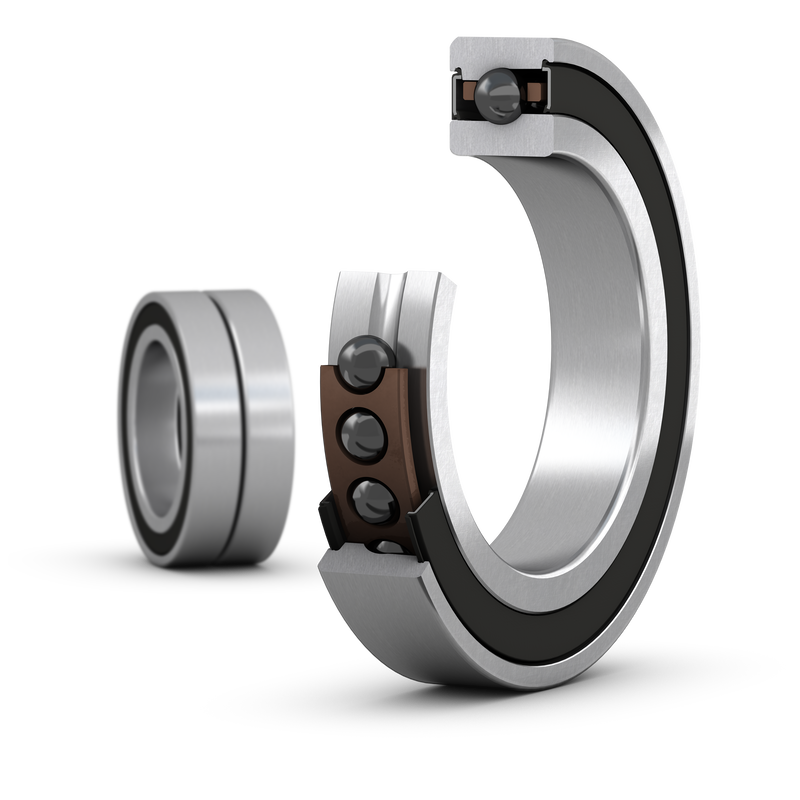

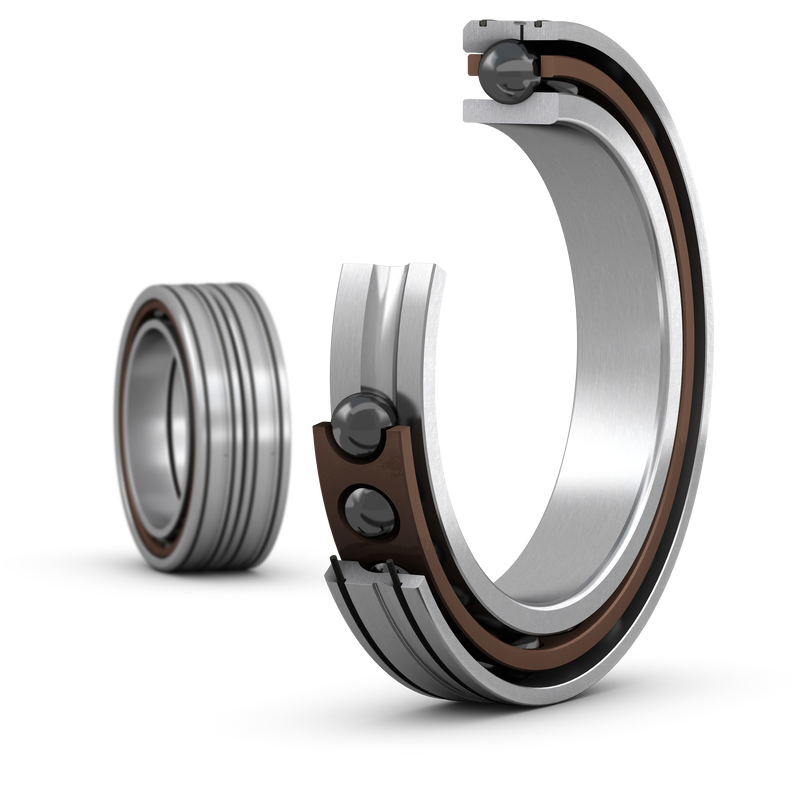

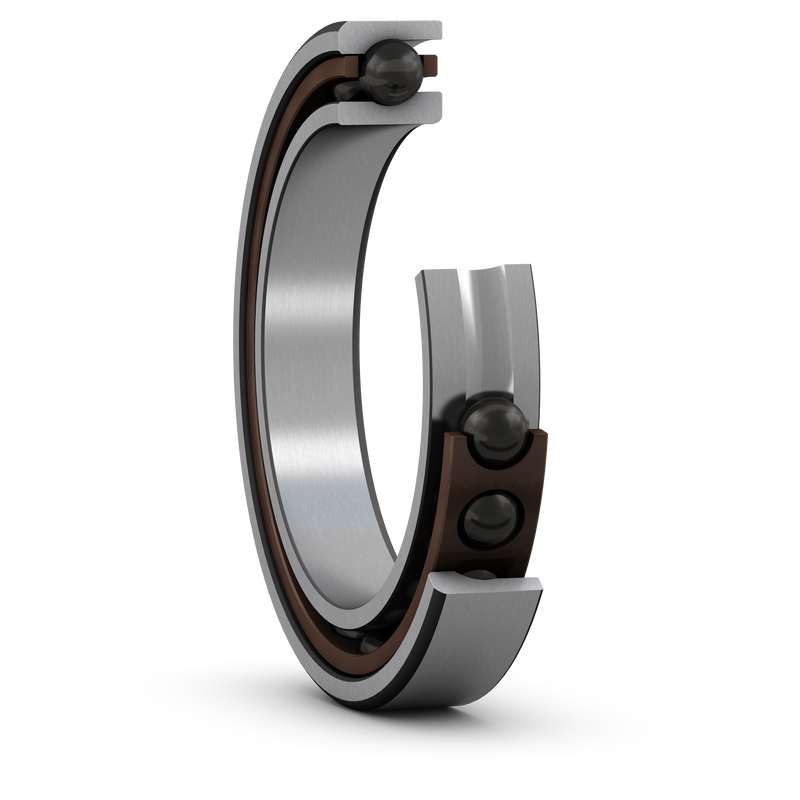

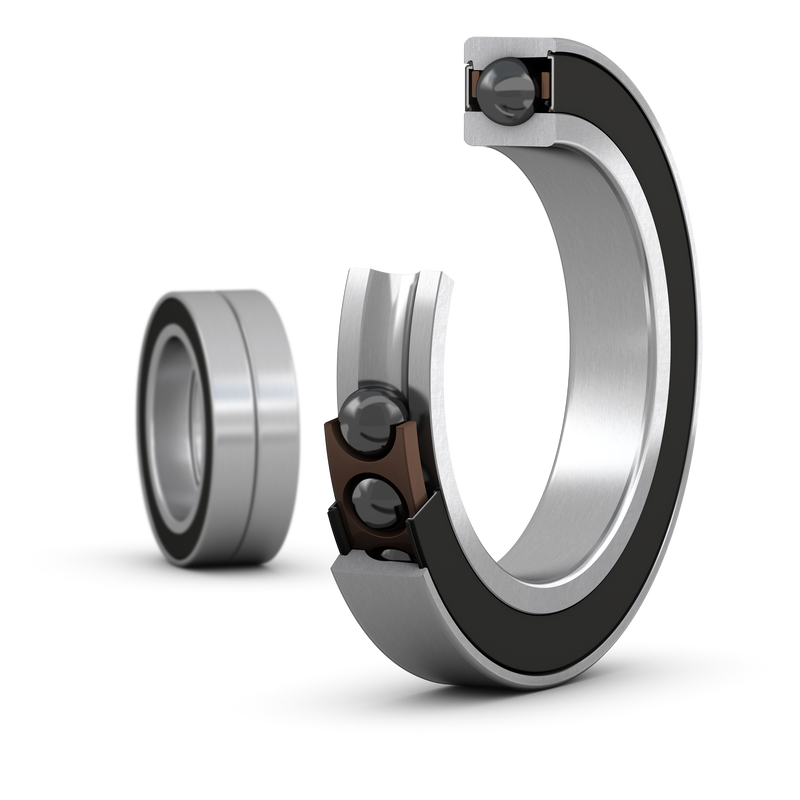

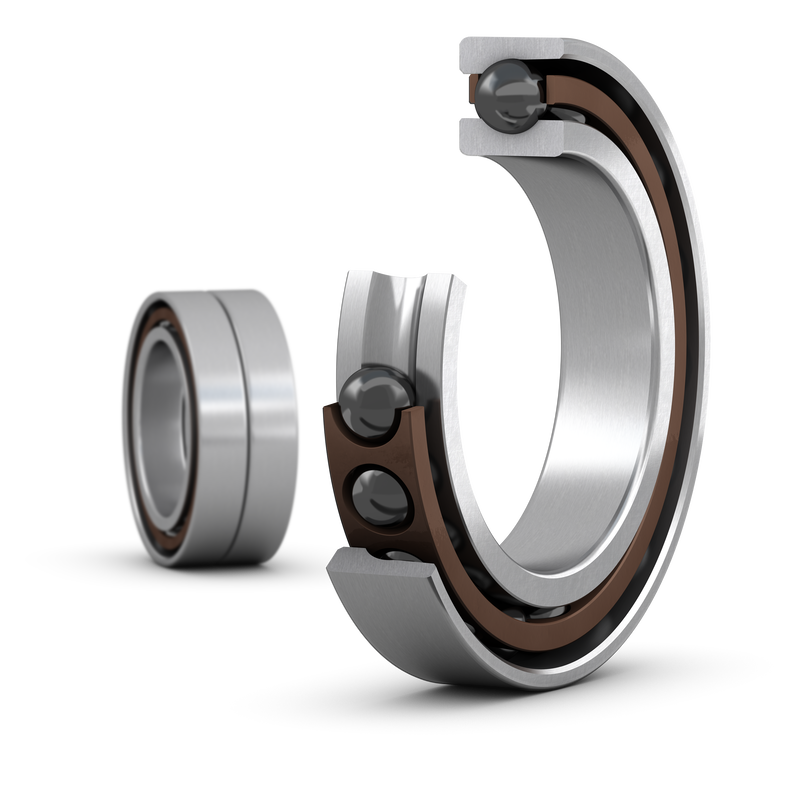

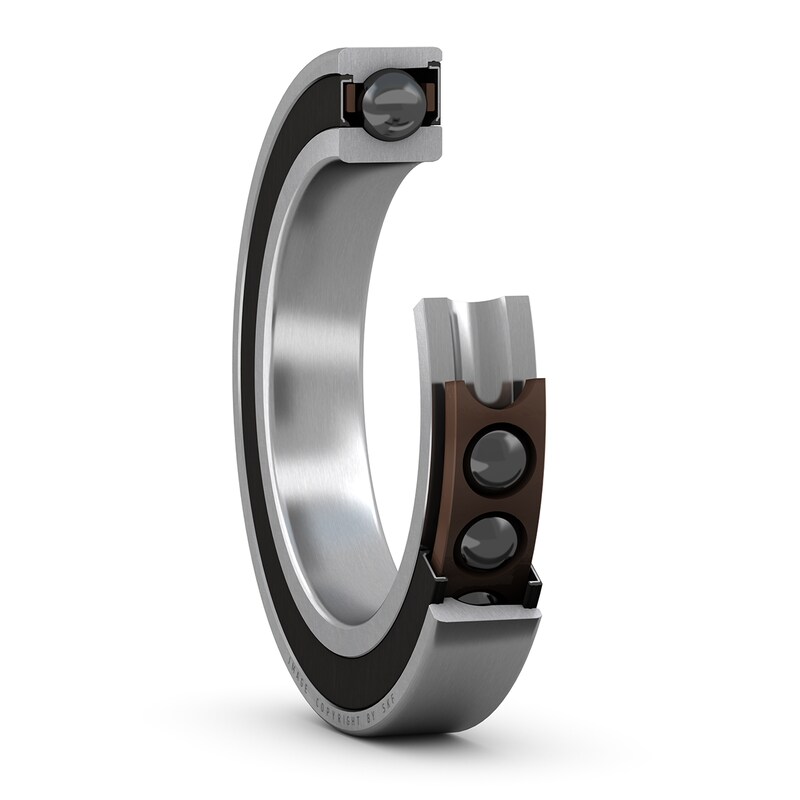

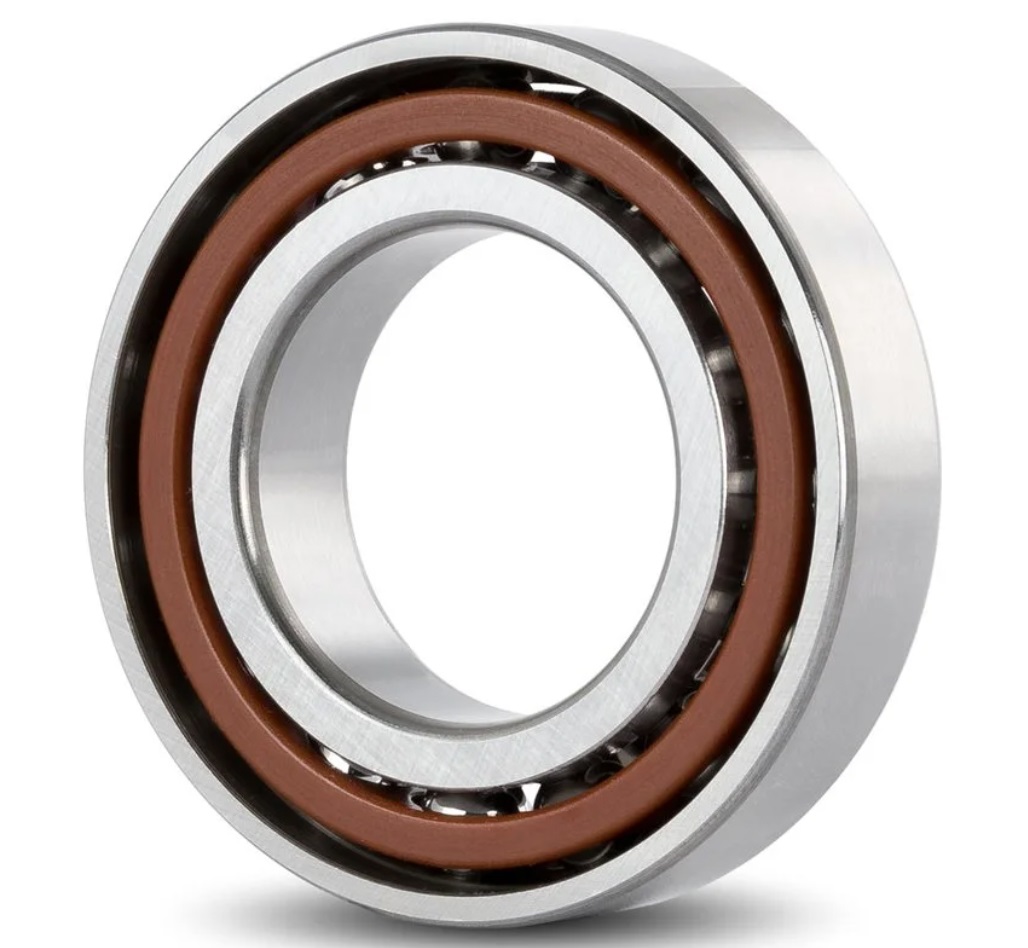

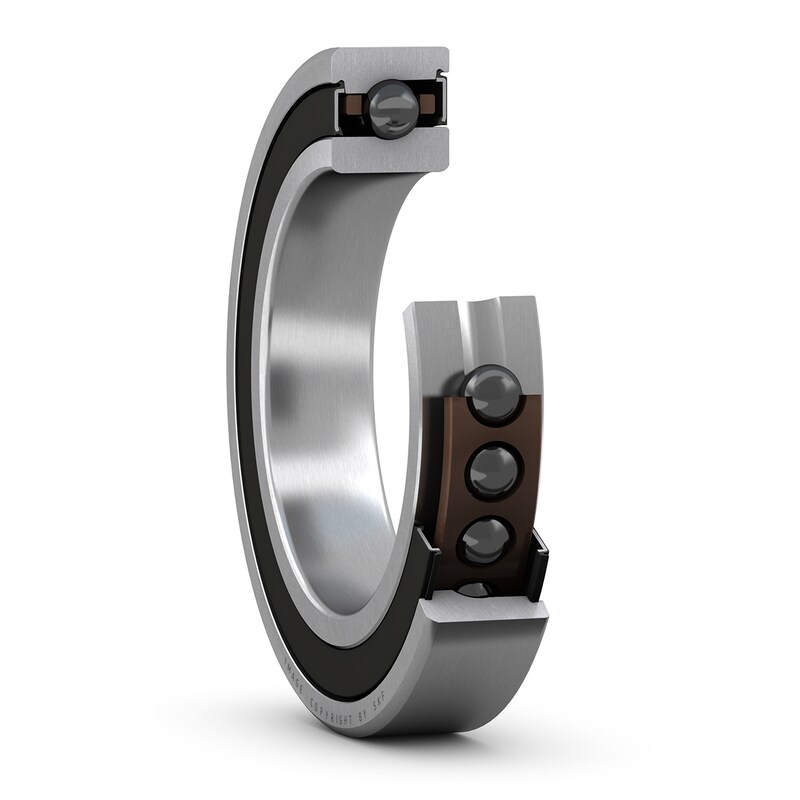

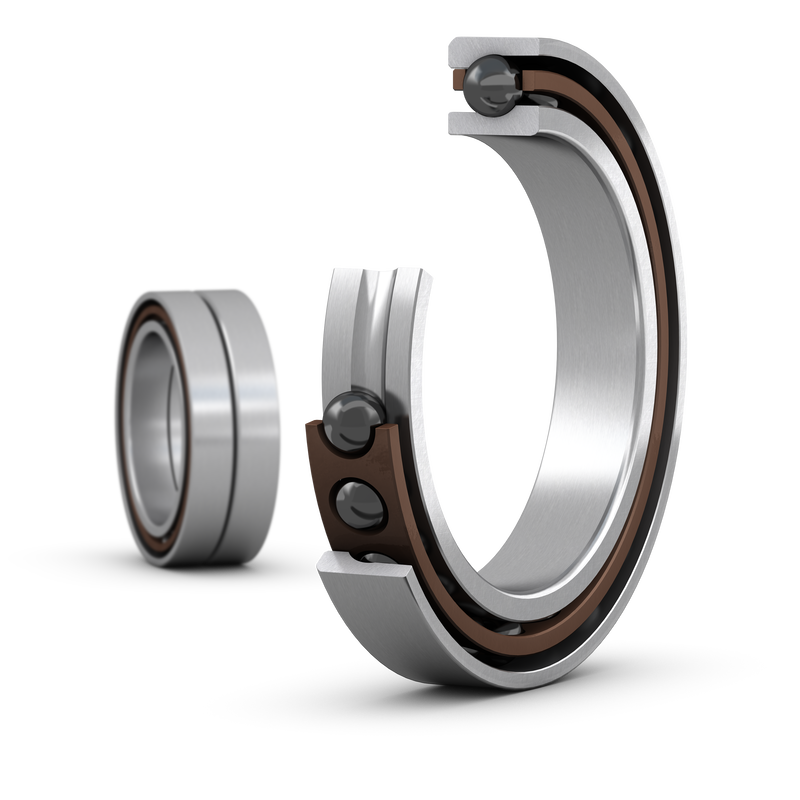

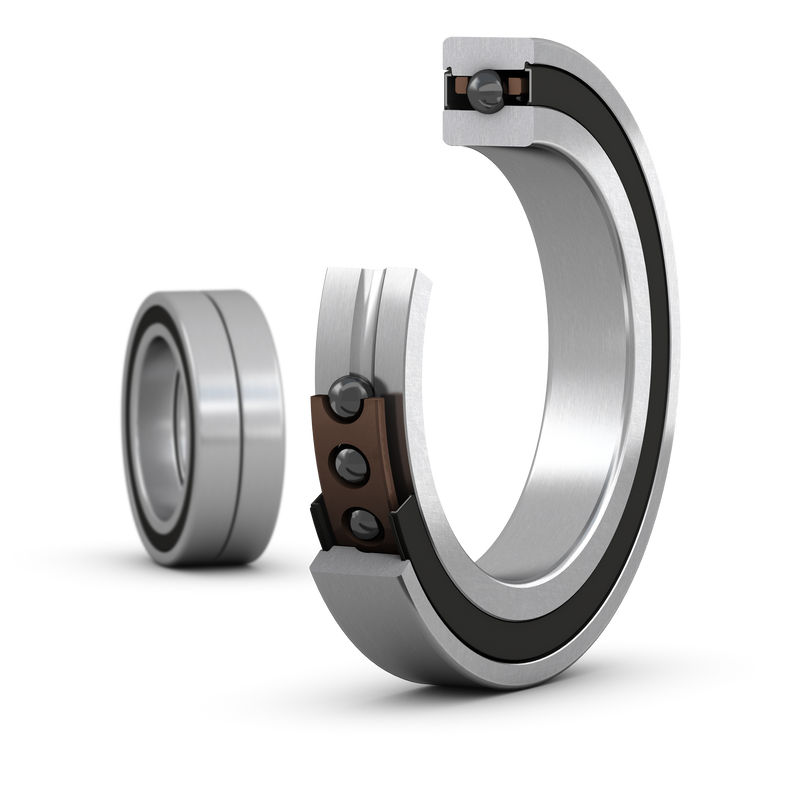

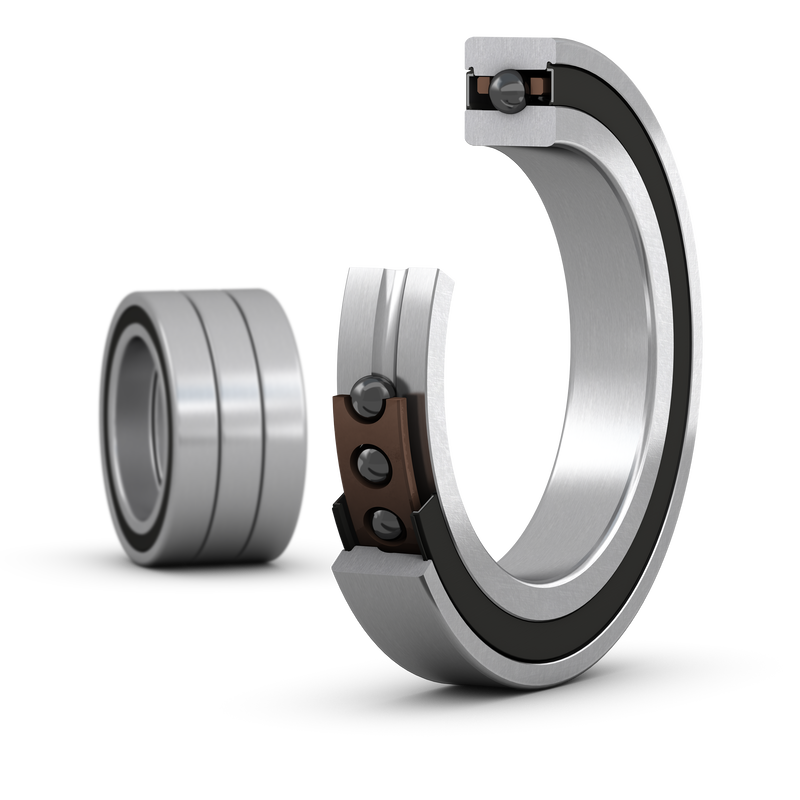

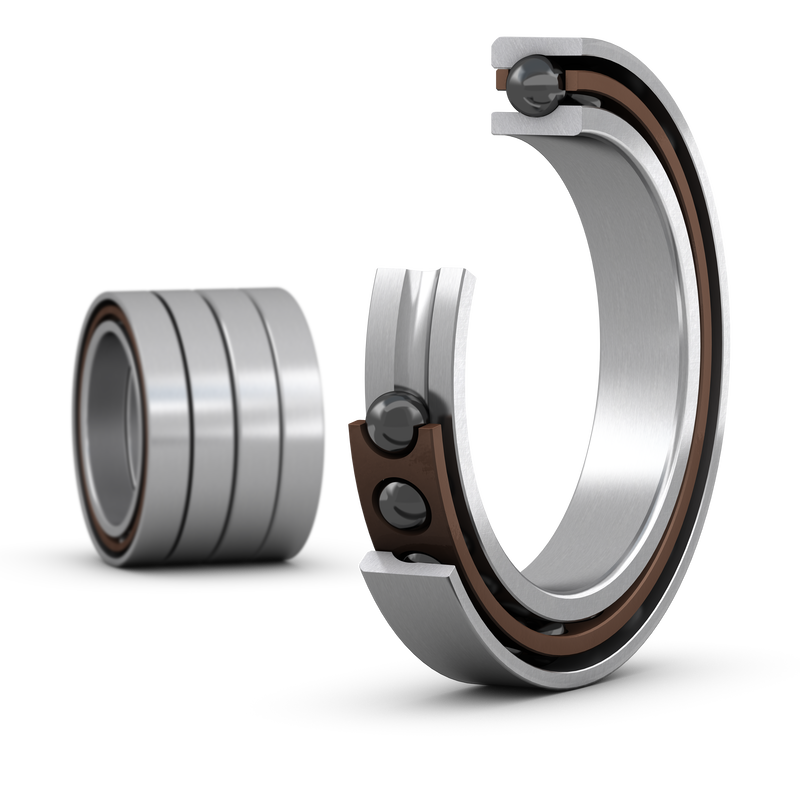

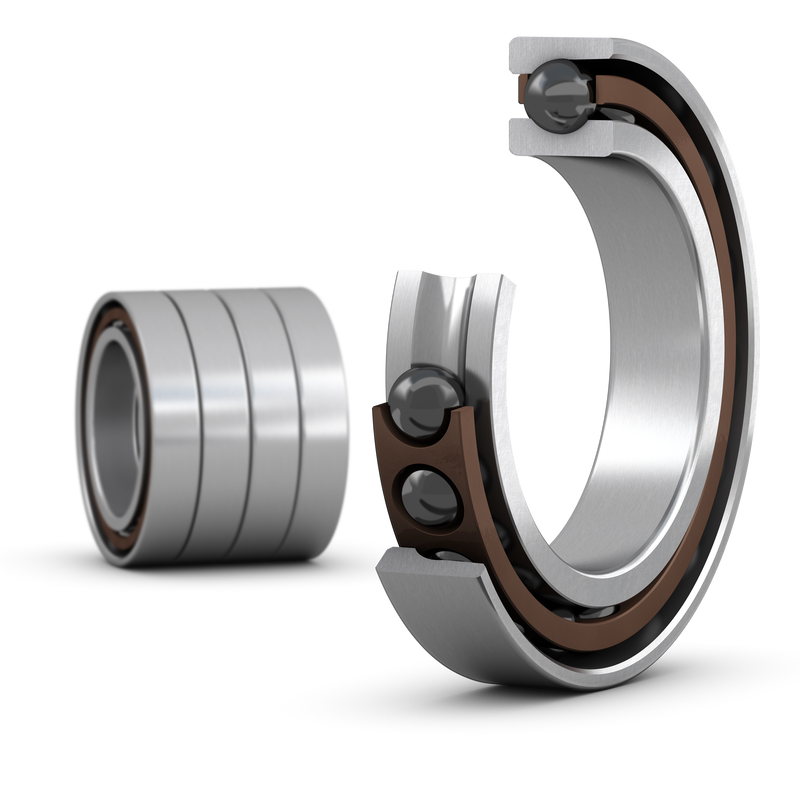

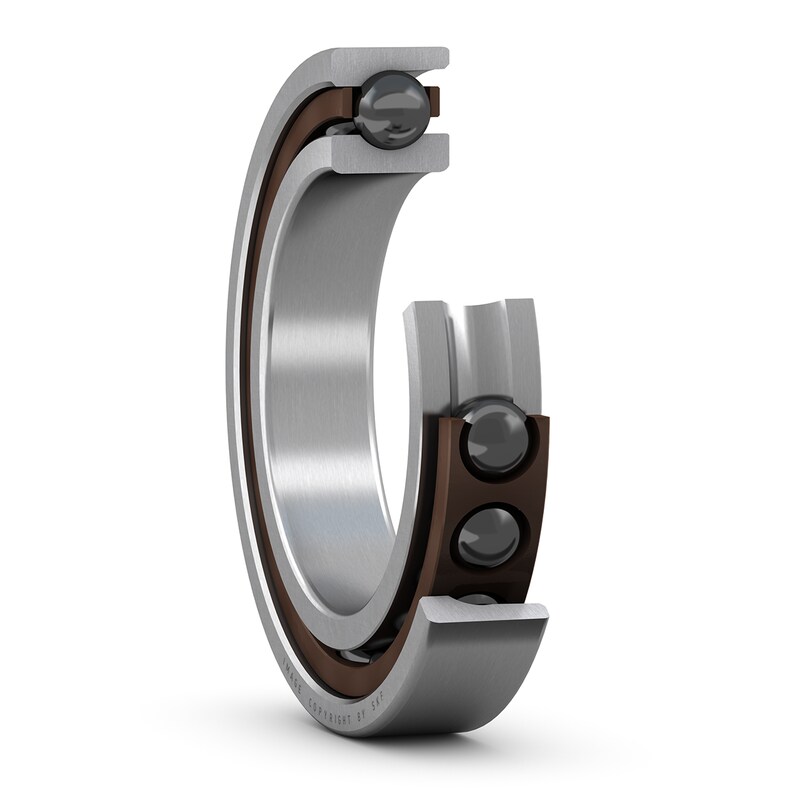

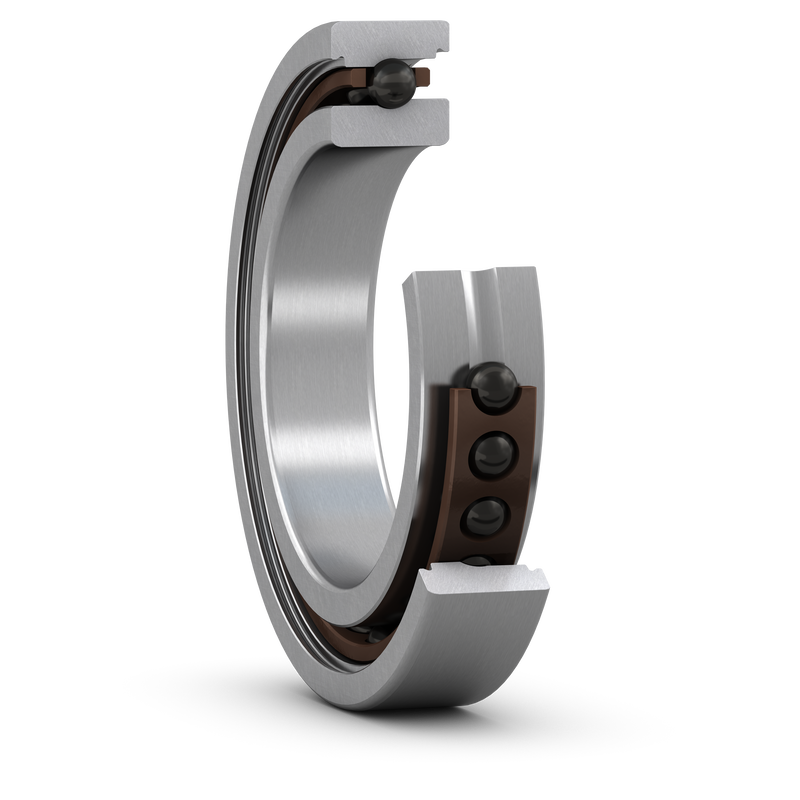

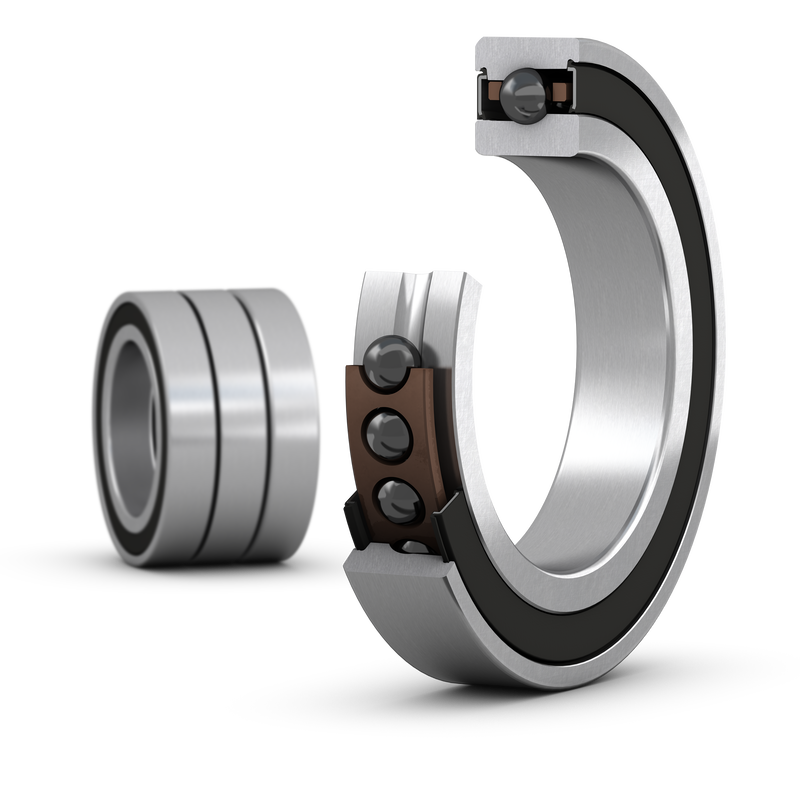

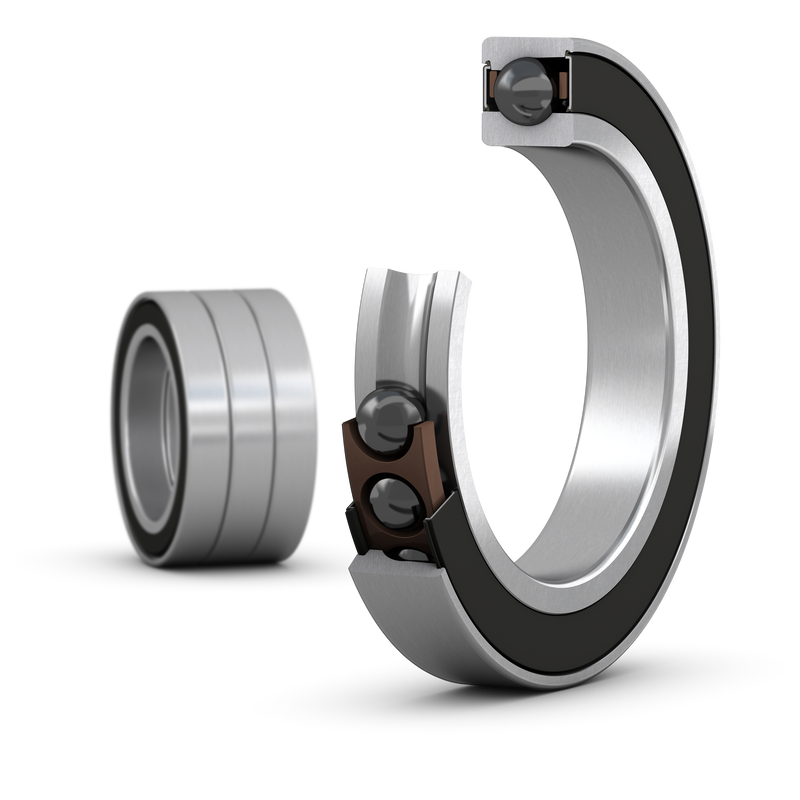

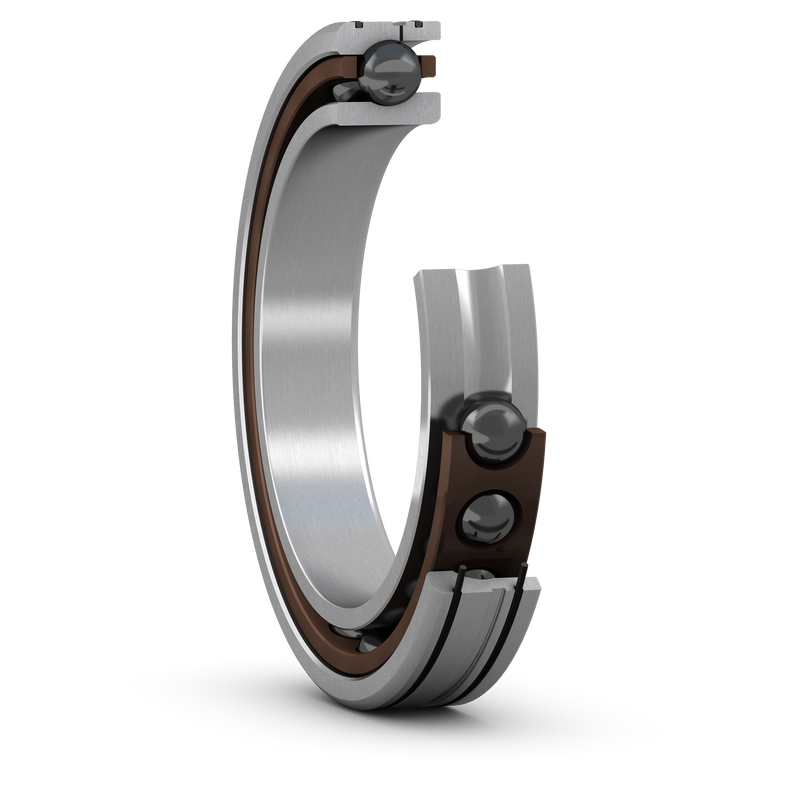

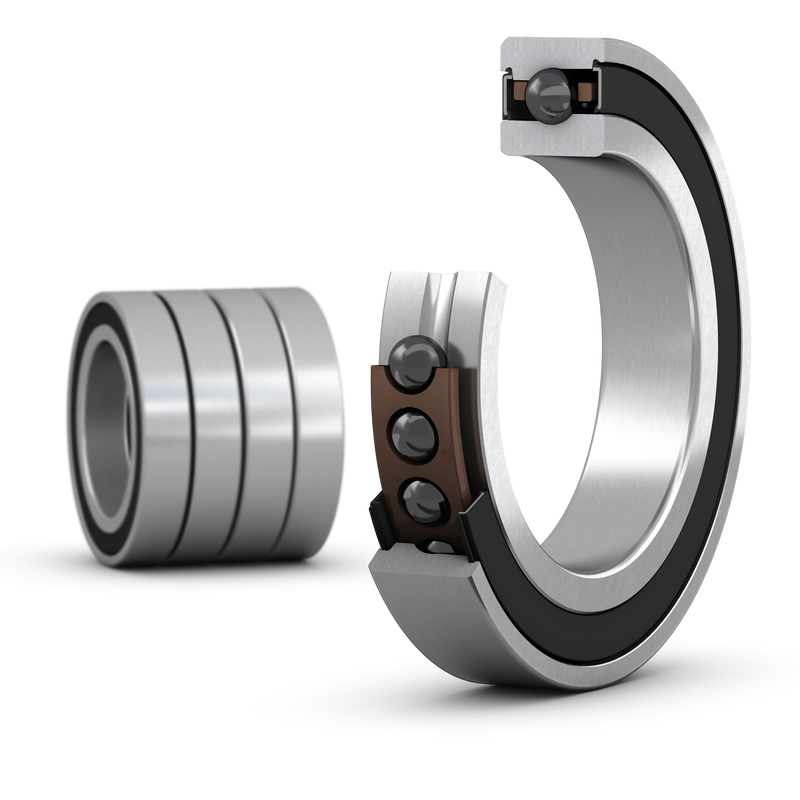

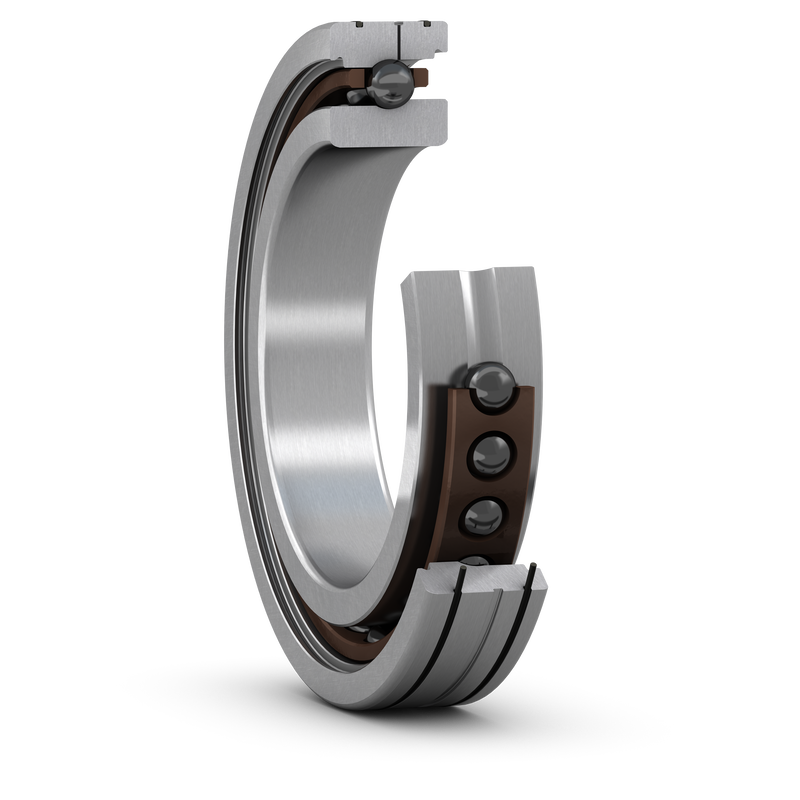

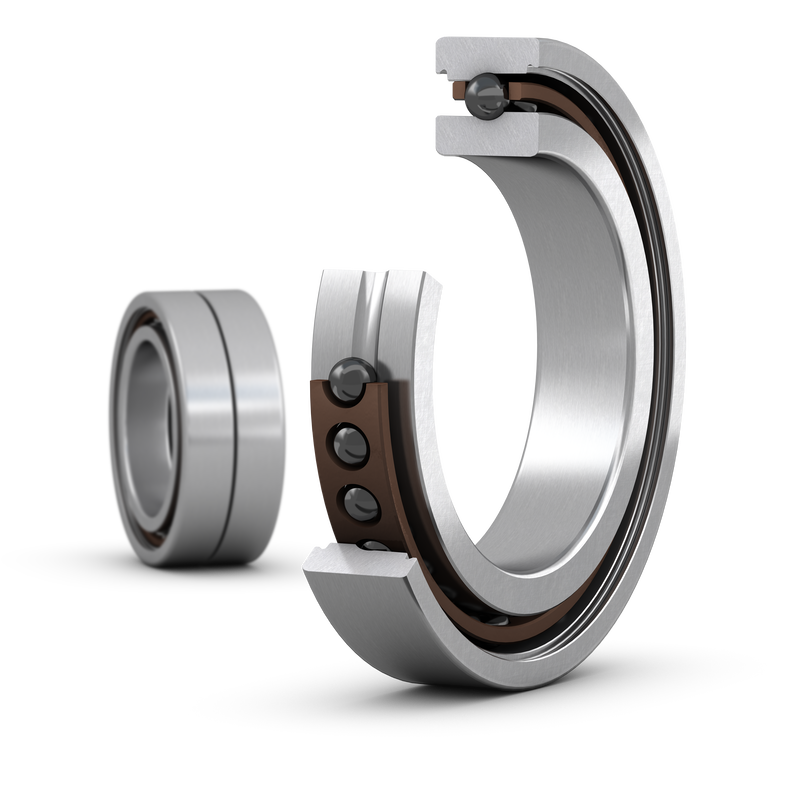

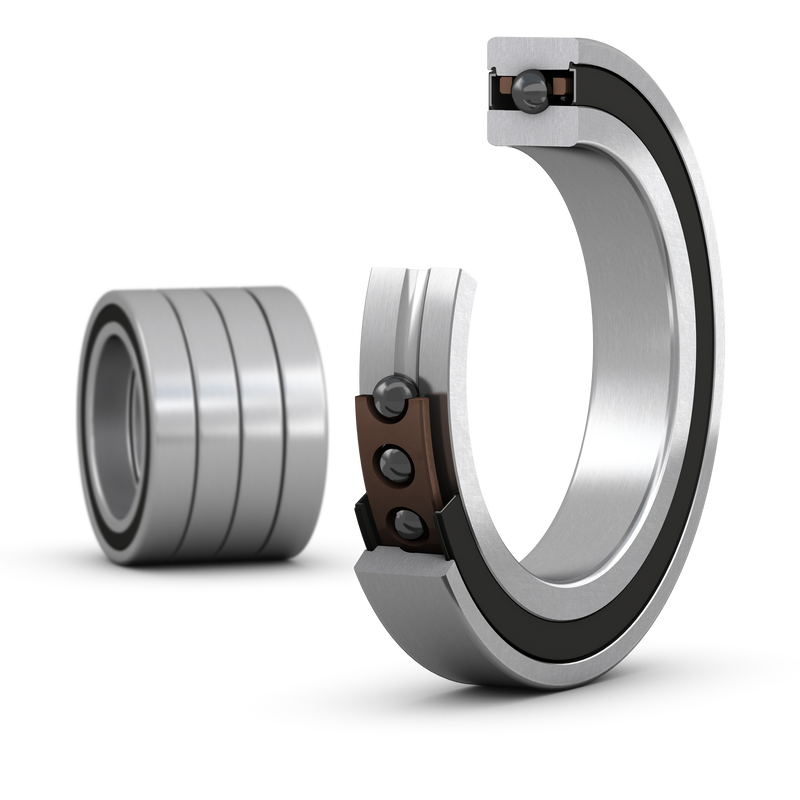

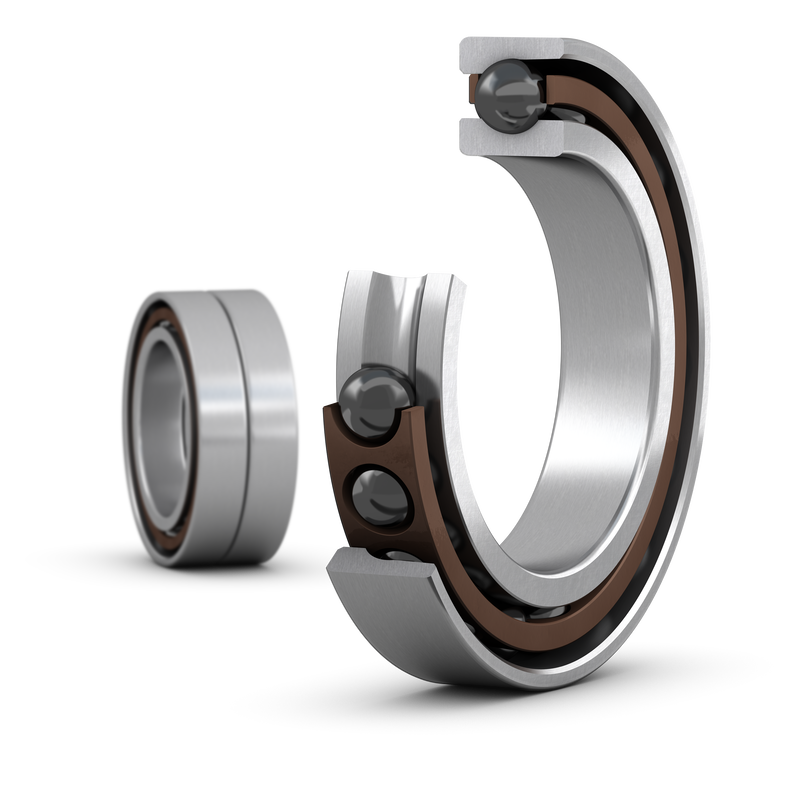

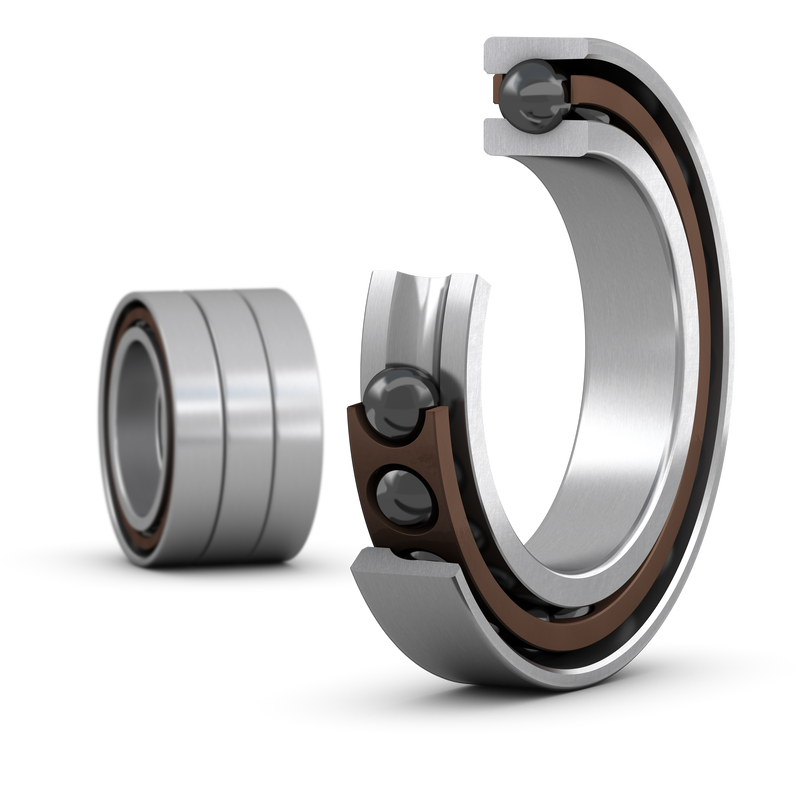

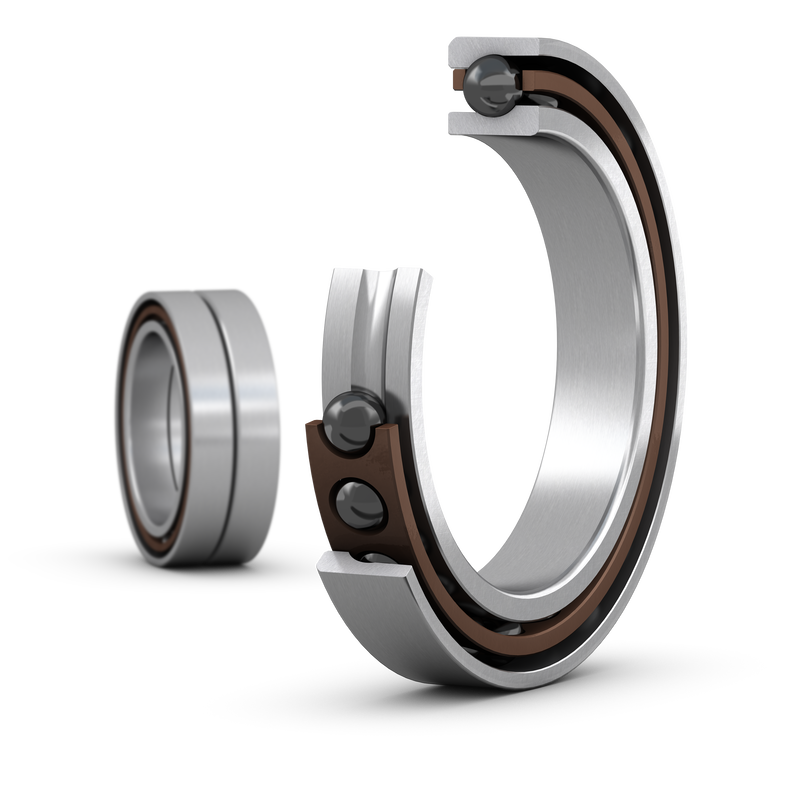

• Angular Contact Bearings: Designed for combined axial and radial loads, often used in precision tools and motors.

Typical Applications

Due to their advanced material properties, hybrid ceramic bearings are commonly found in:

• Motorsports: Delivering reduced friction and higher speed performance.
• Cycling: Used in high-performance bicycles for smoother rotation and extended life.
• Industrial Machinery: Operating reliably under high-speed and high-temperature conditions.
• Electric Motors: Minimizing energy losses while extending service intervals.
• Aerospace: Withstanding extreme environments and offering critical reliability.
• Additional Uses: Wind turbines, conveyor systems, blowers, oil & gas equipment, and food processing machinery.

Advantages of Hybrid Ceramic Bearings

• Lower friction for greater efficiency and reduced operating temperatures
• Higher speed limits than traditional steel bearings
• Extended lifespan due to superior wear resistance of ceramic balls
• Electrical insulation prevents damage from stray currents
• Improved corrosion resistance compared to all-steel bearings

Potential Drawbacks

While hybrid ceramic bearings offer many benefits, there are a few limitations to be aware of:

• Higher cost than standard steel bearings due to material and manufacturing complexity
• Differences in thermal expansion between steel rings and ceramic balls must be managed to prevent stress buildup

How to Choose the Right Hybrid Ceramic Bearing

Selecting the best hybrid ceramic bearing involves evaluating your application’s technical needs:

• Maximum operating speeds
• Expected axial and radial load levels
• Exposure to heat, moisture, chemicals, or contaminants
• Precision and reliability requirements

Maintenance Tips

Although hybrid ceramic bearings require less maintenance than steel bearings, proper care is essential:

• Inspect regularly for wear, noise, and misalignment
• Use clean lubricants appropriate for the bearing type and environment
• Minimize contamination by keeping the operating area clean
• Address anomalies like unusual vibrations or friction immediately

Hybrid Ceramic vs. Full Ceramic Bearings

Feature	Hybrid Ceramic Bearings	Full Ceramic Bearings
Materials	Ceramic balls + steel races	Ceramic balls + ceramic races
Temperature Resistance	High, limited by steel rings	Very high
Friction	Lower than steel	Minimal
Durability	High due to strong steel races	Extremely high (in non-impact conditions)
Weight	Medium	Lightest
Cost	Lower than full ceramic	Highest
Best For	High-speed, precision machinery	Extreme, chemically aggressive environments

Conclusion

Hybrid Ceramic Bearings offer an excellent balance of speed, durability, and reliability for demanding modern applications. With their ability to outperform traditional steel bearings and withstand tough conditions, they are widely adopted in electric motors, aerospace systems, and high-performance machines. Always assess your operating environment and performance requirements before choosing between hybrid and full ceramic options.
