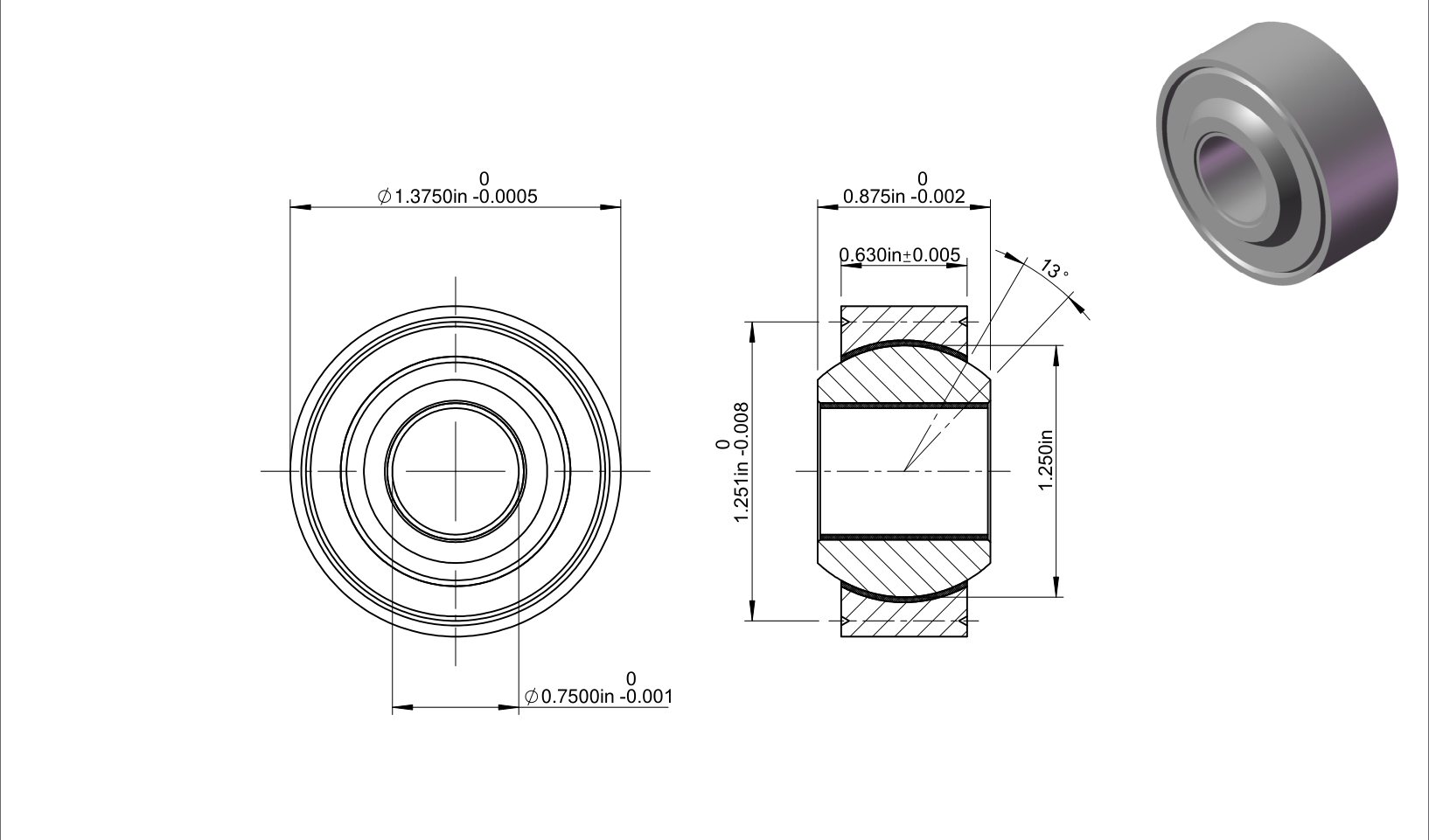

ADW12V(L)
| Part Number | ADW12V(L) |
| Standard Reference | MS14103-12 |
| System of Measurement | Inch |
| Bore Dia | 0.75″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.875″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.63″ |
| Race Width Tolerance | -0.005″ to +0.005″ |
| Shoulder Dia | 0.845″ |
| Ball Dia | 1.25″ |
| Pitch Dia | 1.251″ |
| Mis Alignment | 13° |
| Groove Depth | 0.055″ |
| Dynamic Radial Load | 26200 lbs |
| Static Radial Load | 37000 lbs |
| Weight | 0.24 lbs |
$234.50
