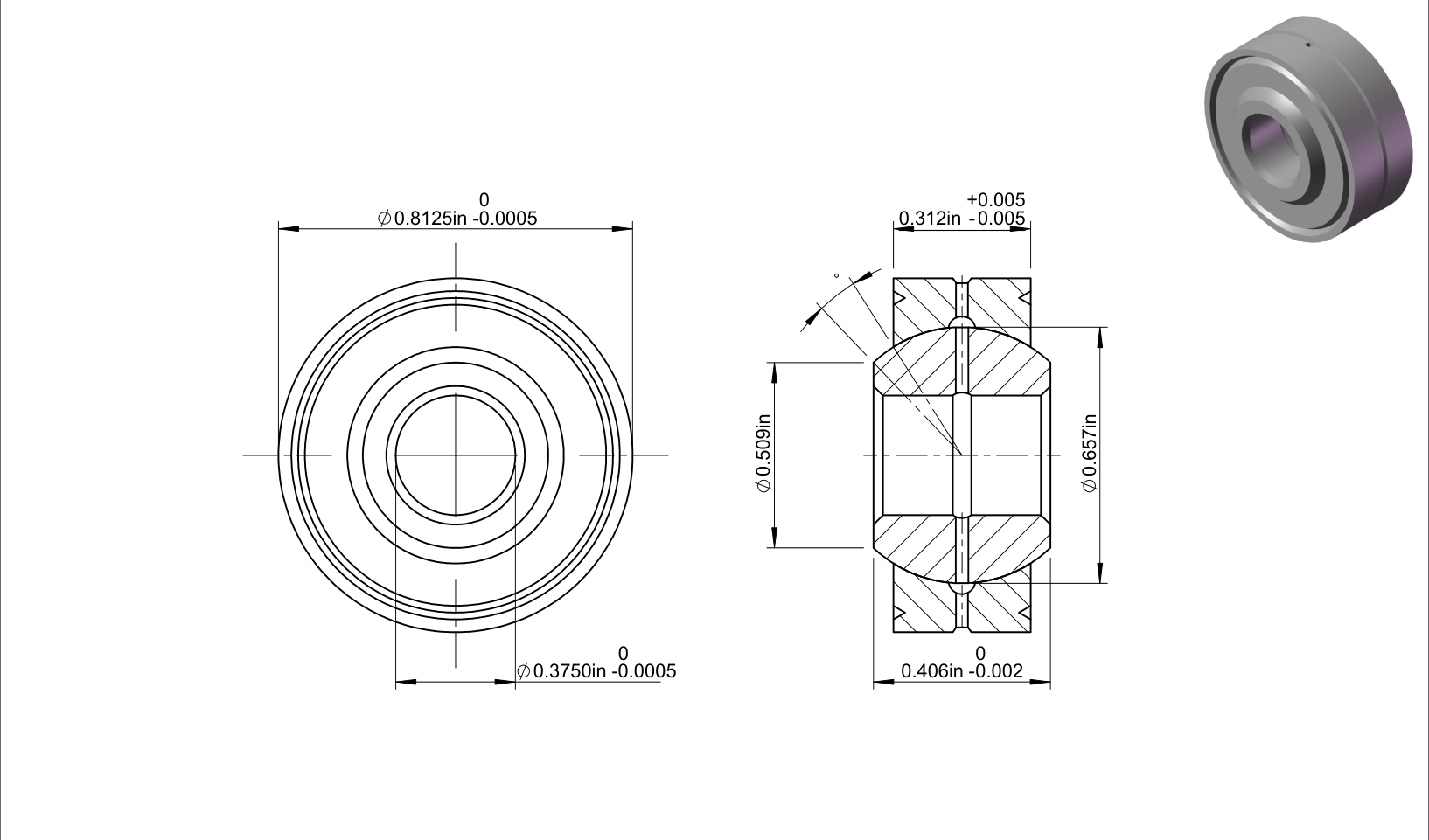

AGB6V
| Part Number | AGB6V |
| System of Measurement | Inch |
| Bore Dia | 0.375″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.8125″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.406″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.312″ |
| Race Width Tolerance | -0.005″ to 0″ |
| Diameter Lubrication Hole | 0.042-0.062″ |
| Shoulder Dia | 0.509″ |
| Ball Dia | 0.657″ |
| Pitch Dia | 0.714″ |
| Groove Width | 0.042-0.078 |
| Groove Radius | 0.030-0.062″ |
| Staking groove Data(P) | 0.03″ |
| Staking groove Data(X) | 0.04″ |
| Dynamic Radial Load | 11400 lbs |
| Static Radial Load | 3090 lbs |
| Weight | 0.04 lbs |
$114.19
