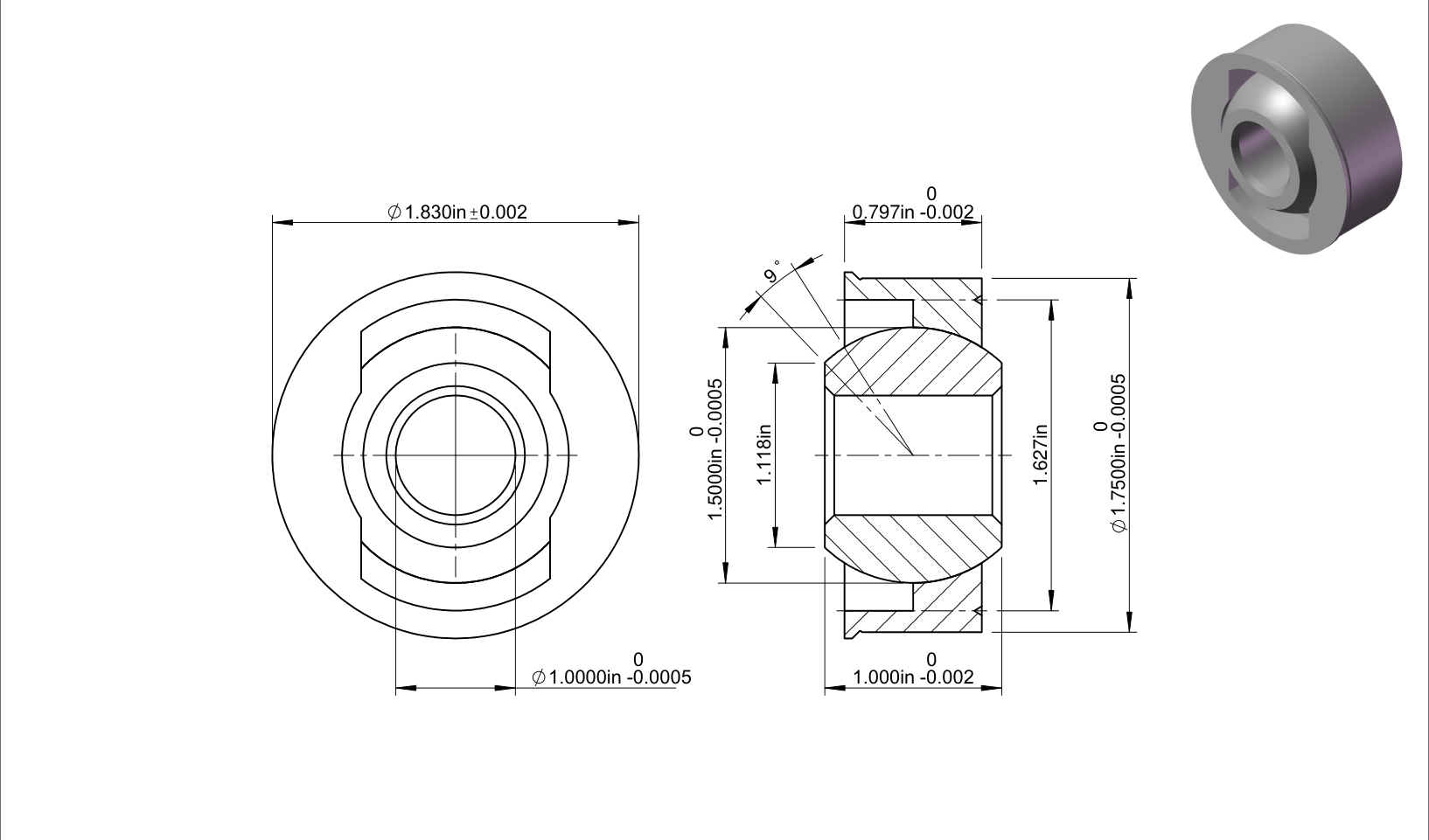

| Part Number | AMB16 |
| System of Measurement | Inch |
| Bore Dia | 1″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.75″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 1″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.797″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 9° |
| Groove Centerline | 1.627″ |
| Groove Depth | 0.056″ |
| Ball Spherical Diameter | 1.5″ |
| Race Spherical Diameter | 1.501″ |
| Ball Flat Diameter | 1.118″ |
| Thru Bore | 1.3″ |
| Flange Diameter | 1.83″ |
| Dynamic Radial Load | 46580 lbs |
| Static Radial Load | 4080 lbs |
| Weight | 0.39 lbs |
