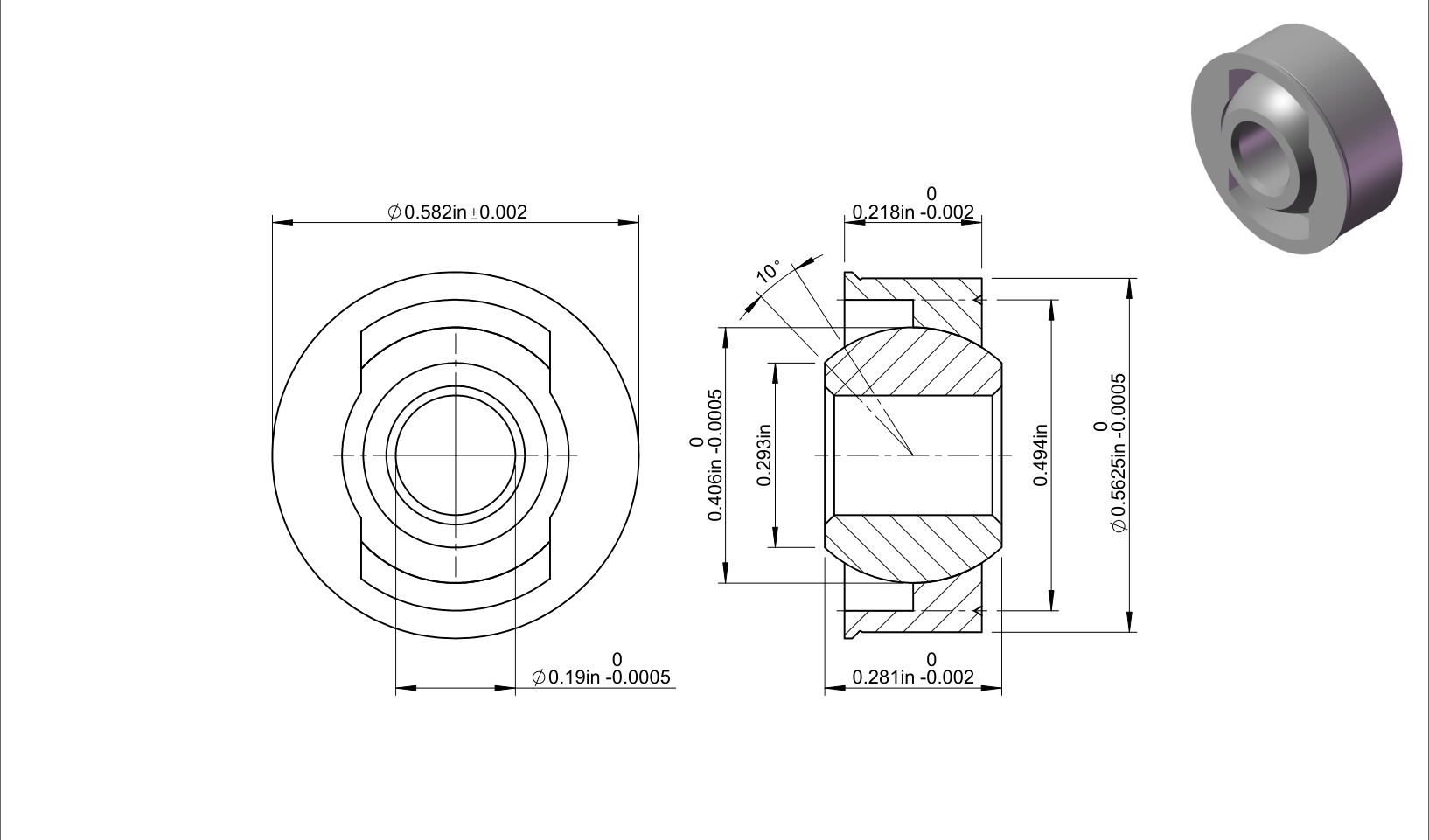

AMB3
| Part Number | AMB3 |
| System of Measurement | Inch |
| Bore Dia | 0.19″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 0.5625″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.281″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.218″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 10° |
| Groove Centerline | 0.494″ |
| Groove Depth | 0.026″ |
| Ball Spherical Diameter | 0.406″ |
| Race Spherical Diameter | 0.407″ |
| Ball Flat Diameter | 0.293″ |
| Thru Bore | 0.36″ |
| Flange Diameter | 0.582″ |
| Dynamic Radial Load | 2820 lbs |
| Static Radial Load | 995 lbs |
| Weight | 0.02 lbs |
$65.25
