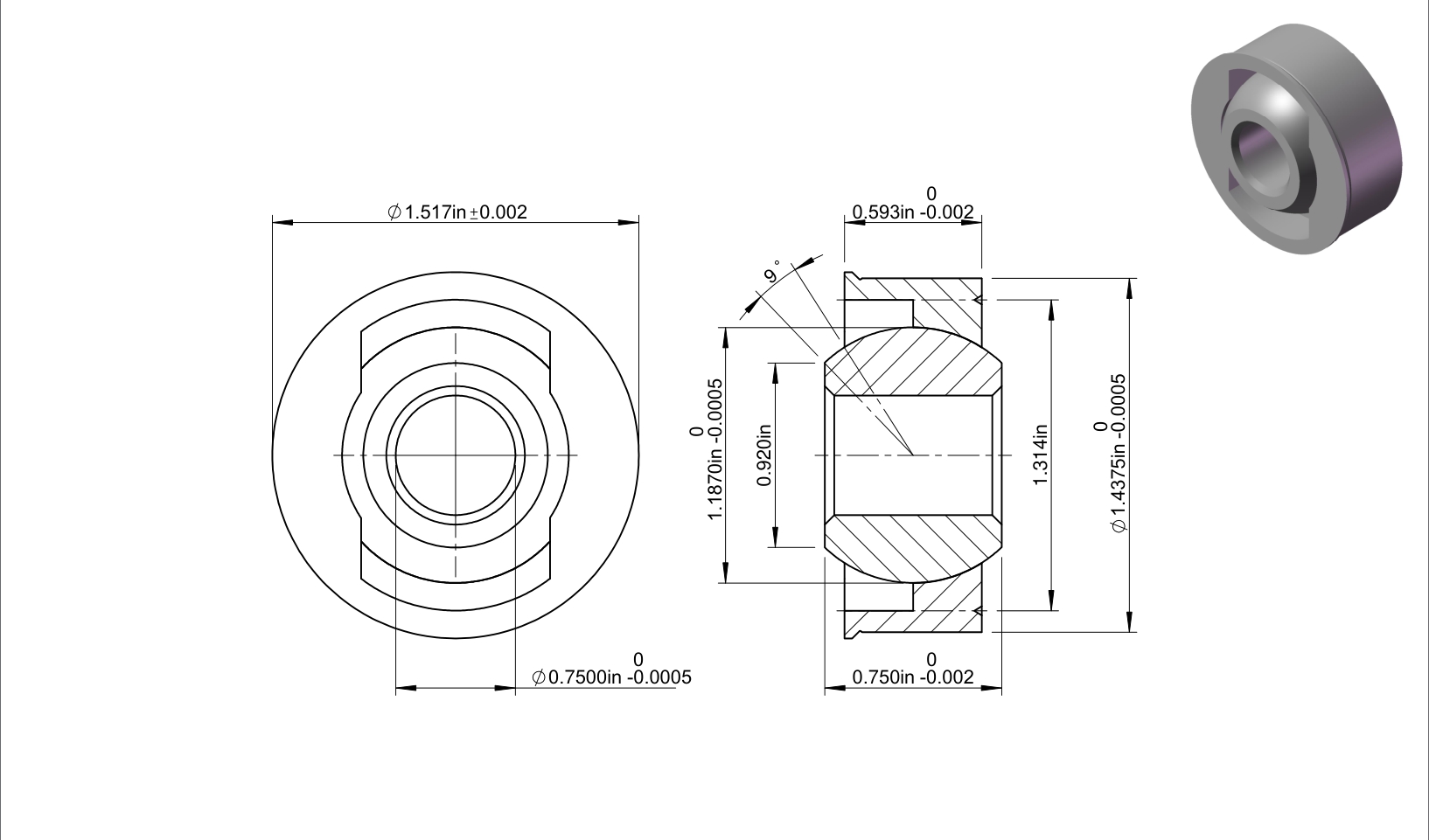

AMB12
| Part Number | AMB12 |
| System of Measurement | Inch |
| Bore Dia | 0.75″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.4375″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.75″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.593″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 9° |
| Groove Centerline | 1.314″ |
| Groove Depth | 0.056″ |
| Ball Spherical Diameter | 1.187″ |
| Race Spherical Diameter | 1.188″ |
| Ball Flat Diameter | 0.92″ |
| Thru Bore | 1.056″ |
| Flange Diameter | 1.517″ |
| Dynamic Radial Load | 35210 lbs |
| Static Radial Load | 3350 lbs |
| Weight | 0.21 lbs |
$249.45
