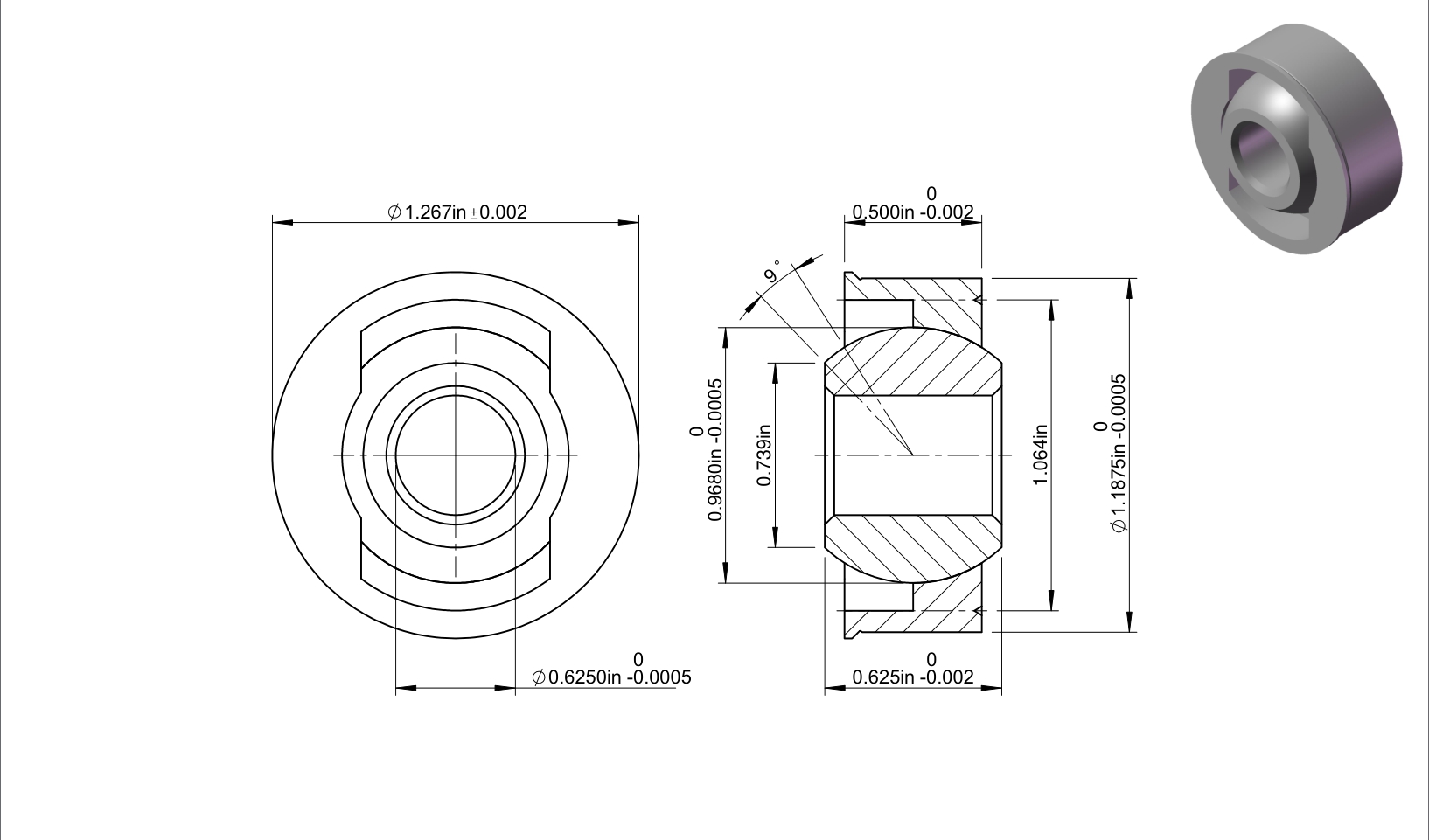

AMB10
| Part Number | AMB10 |
| System of Measurement | Inch |
| Bore Dia | 0.625″ |
| Bore Dia Tolerance | -0.0005″ to 0″ |
| Outer Dia | 1.1875″ |
| Outer Dia Tolerance | -0.0005″ to 0″ |
| Ball Width | 0.625″ |
| Ball Width Tolerance | -0.002″ to 0″ |
| Race Width | 0.5″ |
| Race Width Tolerance | -0.003″ to +0.003″ |
| Mis Alignment | 9° |
| Groove Centerline | 1.064″ |
| Groove Depth | 0.056″ |
| Ball Spherical Diameter | 0.968″ |
| Race Spherical Diameter | 0.969″ |
| Ball Flat Diameter | 0.739″ |
| Thru Bore | 0.875″ |
| Flange Diameter | 1.267″ |
| Dynamic Radial Load | 29070 lbs |
| Static Radial Load | 2770 lbs |
| Weight | 0.11 lbs |
$216.14
